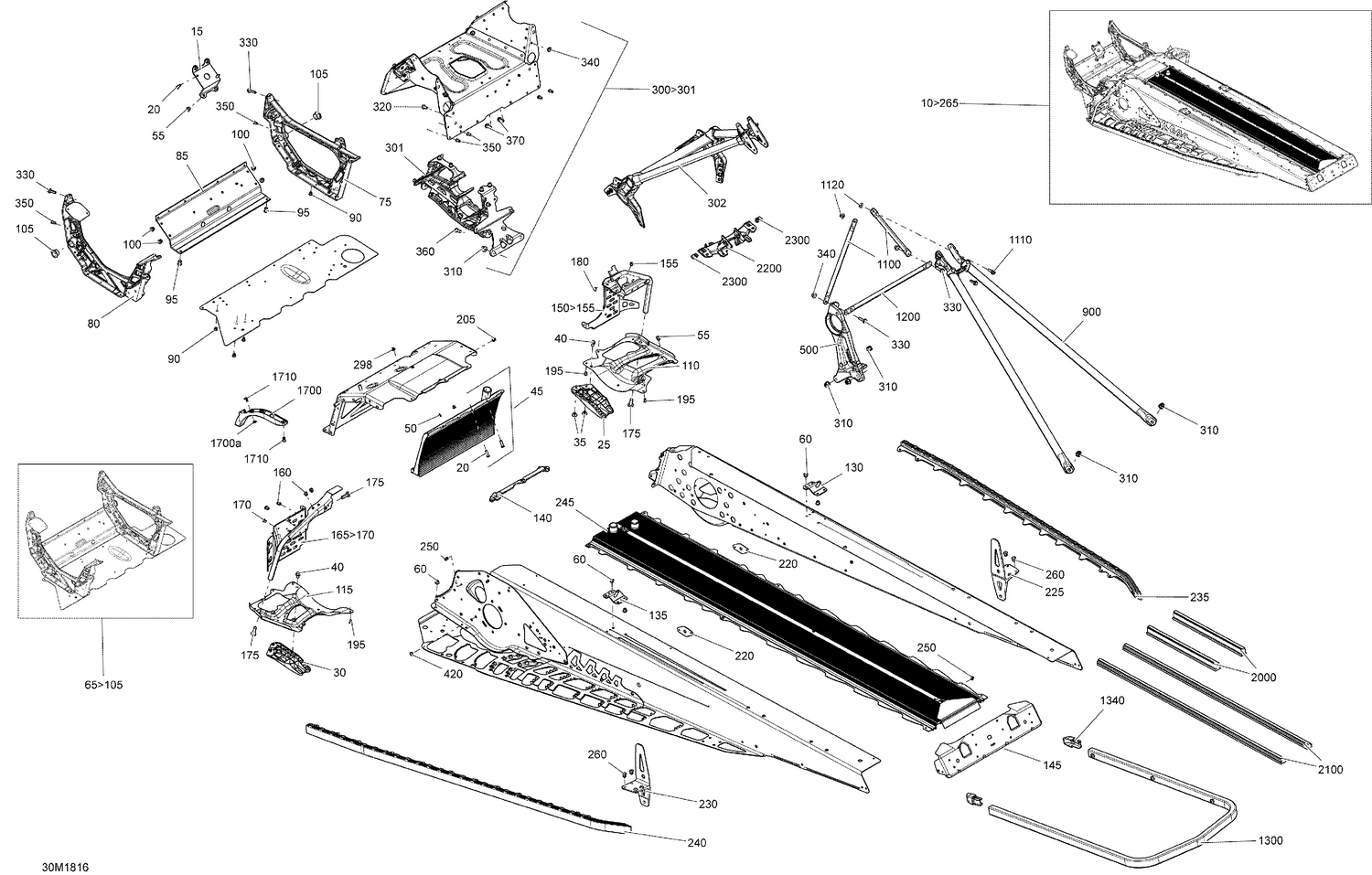

| Ref | Part Number | Description |
|---|
| 10a |
518325943 |
MAG Engine Support |
| 10aa |
518326656 |
Seal |
| 10ab |
518327105 |
Rear Cap |
| 10ac |
518328940 |
RH Stirup |
| 10ad |
390909200 |
Avex Rivet |
| 10ae |
293450268 |
Insert M5 X 0.8 |
| 10af |
518328528 |
LH Stirup |
| 10ag |
390909200 |
Avex Rivet |
| 10ah |
250000752 |
Torx Screw M8 X 1.25 X 25, Scotch Grip |
| 10aj |
293730042 |
Full Moon Dart 5 mm |
| 10ak |
293450268 |
Insert M5 X 0.8 |
| 10am |
390909100 |
Avex Rivet |
| 10an |
293150144 |
Stavex Rivet |
| 10ap |
293150146 |
Henrob Rivet |
| 10aq |
518326954 |
Rh Suspension Bracket |
| 10ar |
518326955 |
LH Suspension Bracket |
| 10as |
518327093 |
RH Roller |
| 10at |
518328429 |
LH Roller |
| 10au |
518327588 |
Rear Radiator 137'' |
| 10av |
293150144 |
Stavex Rivet |
| 10aw |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10b |
250300027 |
Clinch Stud M6 X 20 |
| 10c |
518325782 |
RH Deflector, Black Polypropylene |
| 10d |
518325783 |
LH Deflector, Black Polypropylene |
| 10e |
293150104 |
Pop Rivet 3/16" |
| 10f |
207561244 |
Hex. Flange Screw M6 X 12, Scotch Grip |
| 10g |
518326485 |
Front Radiator |
| 10h |
518326485 |
Front Radiator This part replaces 518326486. |
| 10j |
293150203 |
Rivet Avibulb 3/16 |
| 10k |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10m |
293150174 |
Hemlock Rivet, 6.4 mm |
| 10n |
518327567 |
E Module |
| 10p |
518326795 |
RH Member |
| 10q |
518326796 |
LH Member |
| 10r |
518326198 |
Front Member |
| 10s |
293150144 |
Stavex Rivet |
| 10t |
293150120 |
Hemlock Rivet 6.5 mm |
| 10u |
293150119 |
Hemlock Rivet, 6.5 mm |
| 10v |
505073317 |
Leg Cushion |
| 10w |
518326937 |
RH Reinforcement, Running Board |
| 10x |
518326938 |
LH Reinforcement, Running Board |
| 10y |
518325973 |
RH Rear Base |
| 10z |
518325974 |
LH Rear Base |
| 298 |
390402400 |
Pop Rivet 3/16" |
| 300a |
518328320 |
Cross Member S Module |
| 300b |
518327487 |
Front Suspension Support |
| 300c |
518327565 |
Front Member |
| 310 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 320 |
250001051 |
Screw-Forming Hex.HD.FL. M6 X 16 This part replaces 250000822. |
| 330 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 340 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 350 |
293150191 |
Monobolt Rivet, 4.8 mm |
| 360 |
293150182 |
Monobolt Rivet 6.4 |
| 370 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 420 |
293730053 |
Black Dart 5 mm |
| 900 |
518326559 |
Rear Member |
| 1100 |
518325114 |
Upper Lateral Column Support |
| 1110 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 1120 |
233261416 |
Elastic Flange Nut M6 X 1.0 |
| 1200 |
518325115 |
Center Column Support |
| 1300 |
518325481 |
Black Rear Bumper 137" |
| 1340 |
520000840 |
BLACK CAP - Call your local BRP dealership |
| 1400 |
293730047 |
Black, Dart 8 mm |
| 1405 |
293730060 |
Black, Dart 10 mm |
| 1700a |
517124300 |
Washer |
| 1710 |
293150108 |
Pop Rivet 3/16” This part replaces 293150108. |
| 2000 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 2100 |
860200802 |
TUNNEL PROT. - Call your local BRP dealership This part replaces 860200267. |
| 2200 |
518327145 |
Sub A Support |
| 2300 |
250000958 |
Panel Nut M5 X 0.8 This part replaces 250000079. |
| 6000 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip |
