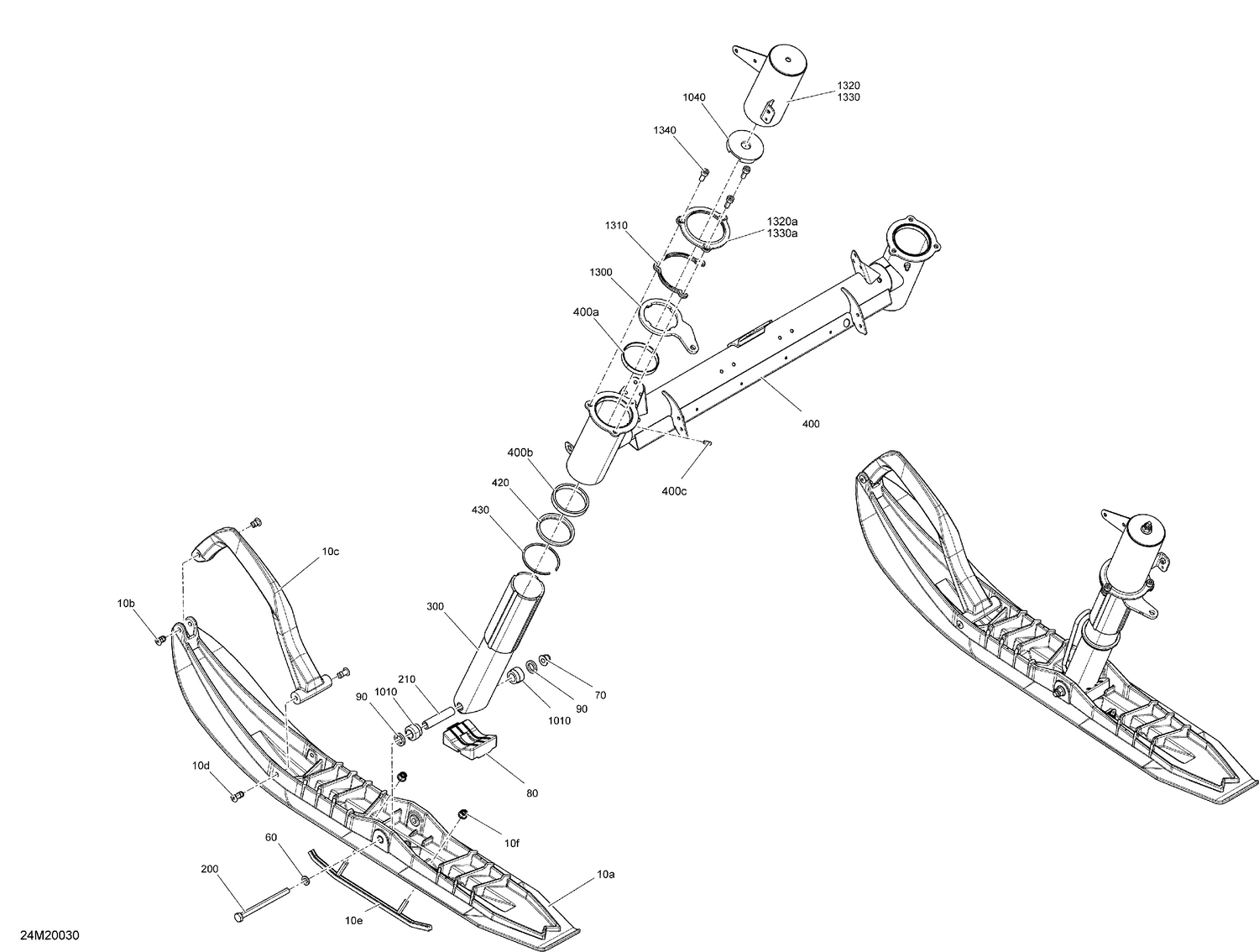

07- Suspension, Front - System
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 505073227 | Black, Ski |
| 10b | 505071812 | Retainer 17mm long |
| 10c | 505072976 | Black, Handle |
| 10d | 505072133 | Retainer 23mm Long |
| 10e | 860201044 | Carbide Runner Kit (Square Runner) |
| 10f | 233281414 | Hex. Flange Elastic Nut M8 |
| 60 | 503192496 | Washer |
| 70 | 233201464 | Hex. Flange Elastic M10 x 1.5 |
| 80 | 505072594 | Ski Stopper |
| 90 | 505072579 | Spacer |
| 200 | 250000703 | Hex. Screw M10 X 130 |
| 210 | 505073209 | Ski Axle |
| 300 | 505073200 | Ski Leg |
| 400a | 414803100 | Upper Cushion |
| 400b | 414803200 | Lower Cushion |
| 400c | 408200700 | Grease Fitting |
| 420 | 505072696 | Seal Oil |
| 430 | 505072698 | Circlip |
| 1010 | 572034500 | Cushion |
| 1040 | 570025800 | Stopper |
| 1300 | 505073823 | Steering Arm |
| 1310 | 505073983 | Spacer |
| 1320a | 232061404 | Hexagonal Nut M6 |
| 1330a | 232061404 | Hexagonal Nut M6 |
