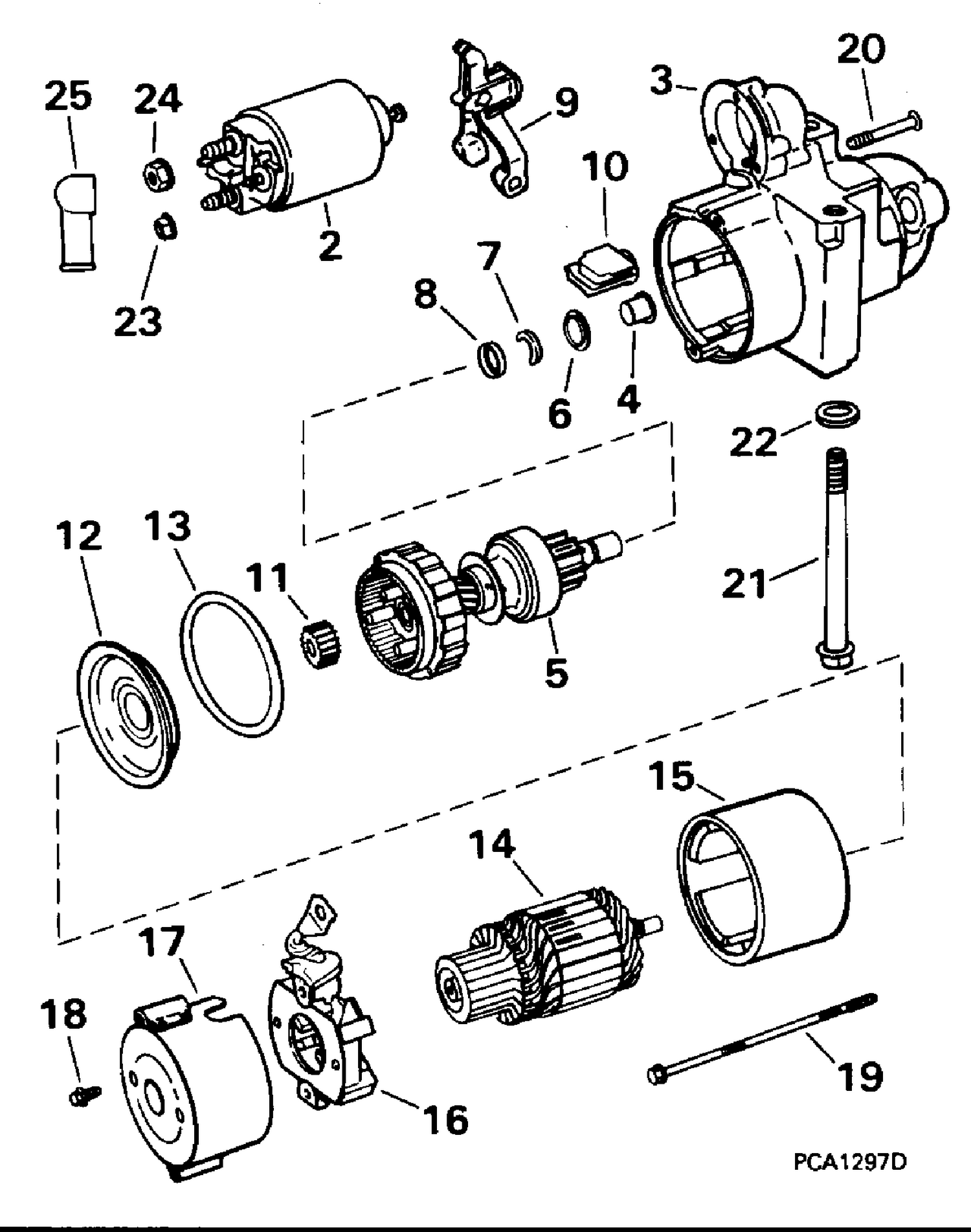

STARTER
Parts (22)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 3860566 | Motor Ay This part replaces 3854751. |
| 2 | 3850216 | SOLENOID |
| 3 | 3855886 | HOUSING, Drive |
| 4 | 3855887 | BEARING, Drive |
| 5 | 3855888 | DRIVE SHAFT ASSY. |
| 6 | 3852724 | COLLAR THRUST |
| 7 | 3852725 | COLLAR, Pinion stop |
| 8 | 3852726 | COLLAR STOP |
| 9 | 3855889 | LEVER |
| 10 | 3855890 | PLUG |
| 11 | 3855891 | GEAR |
| 12 | 3855892 | SHIELD |
| 13 | 3855893 | GASKET |
| 14 | 3855894 | ARMATURE |
| 15 | 3855895 | FRAME & FIELD |
| 16 | 3855896 | BRUSH HOLDER |
| 17 | 3855897 | END FRAME |
| 18 | 3855898 | SCREW, Brush holder |
| 19 | 3855899 | BOLT |
| 21 | 3854752 | SCREW, Starter |
| 23 | 3852518 | NUT, Solenoid, metric |
| 24 | 3853714 | NUT, Solenoid |
