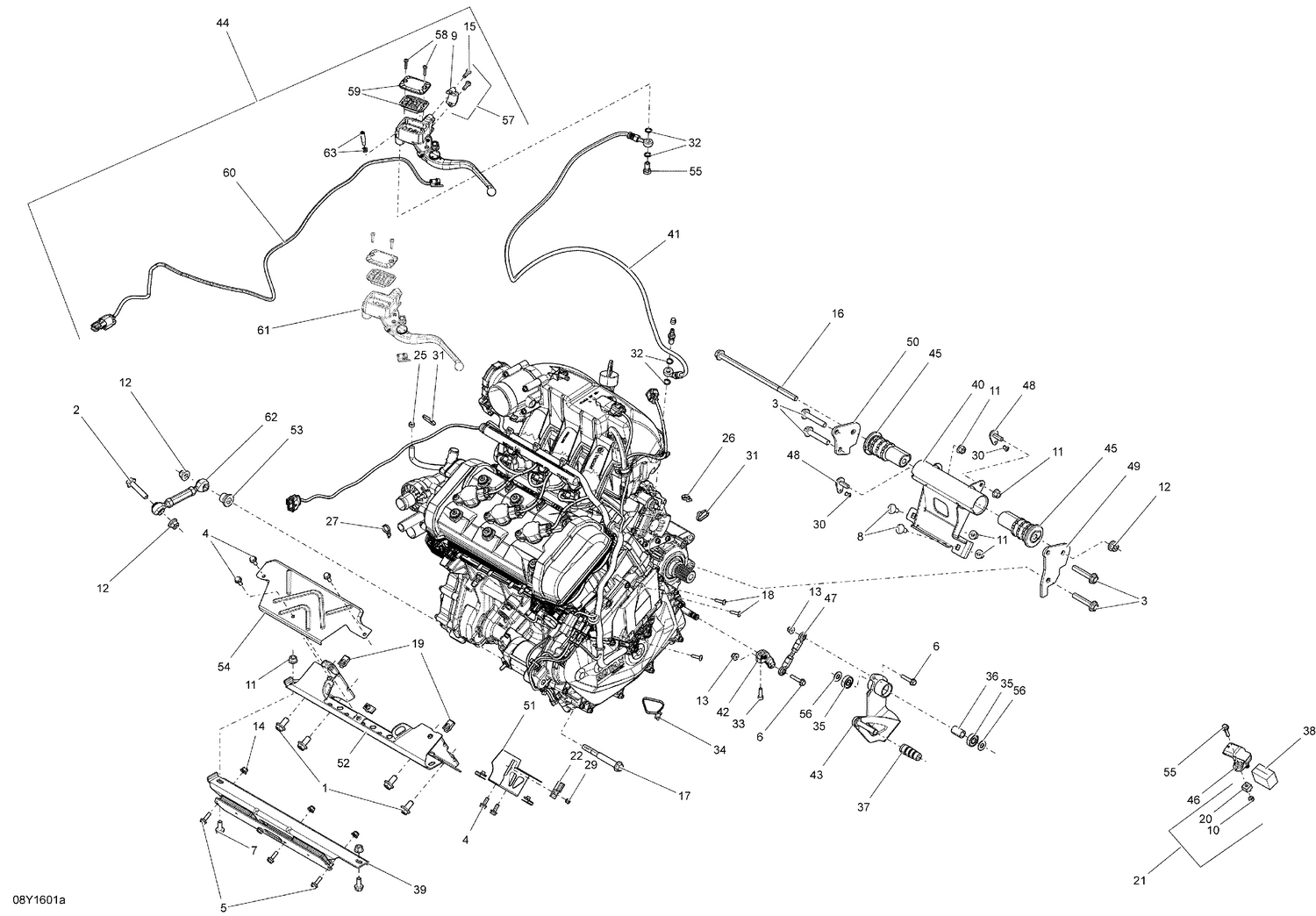

01- Engine - SM6
Parts (60)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207502044 | Hex Flange Screw M10 X 20 |
| 2 | 207504546 | Hex. Flange Screw M10 X 45 Scotch Grip |
| 3 | 207505544 | Hex. Flange Screw M10 X 55, Scotch Grip |
| 4 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 5 | 207662044 | Hex. Flange Screw M6 X 20 |
| 6 | 207563034 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 7 | 207682046 | Hex. Flange Screw M8 X 20 |
| 8 | 207782046 | Carriage Bolt M8 X 20 |
| 9 | 719000049 | Clamps |
| 10 | 232561600 | Hex. Elastic Stop Nut M6 |
| 11 | 233081416 | Hex. Flange Nut M8 |
| 12 | 233201436 | Hex. Flange Elastic Nut M10 This part replaces 233201416. |
| 13 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 14 | 233261466 | Hex. Flange Elastic Nut M6 |
| 15 | 250000433 | Torx Screw M6 X 20 |
| 16 | 250000507 | Hex. Flange Screw M10 X 220 |
| 17 | 250001099 | Hex. Flange Screw M10 X 100 This part replaces 250000702. |
| 18 | 250000724 | Torx Screw M5 X 20 |
| 19 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 20 | 269500252 | M6 Nut Housing Ass'y |
| 21 | 269500725 | M6 Nut Housing Ass'y |
| 22 | 270000141 | Clip |
| 25 | 293650044 | Oetiker Clamp |
| 26 | 293750002 | Tie Wrap 142 mm |
| 27 | 293750008 | Tie Wrap 368 mm |
| 29 | 390402200 | Pop Rivet 3/16" |
| 30 | 390402300 | Pop Rivet 3/16" |
| 31 | 414115200 | Tie-Rap 180 mm |
| 32 | 414920600 | Washer |
| 33 | 250001077 | Socket Head Screw Scotch Grip M6 X 20 This part replaces 514054626. |
| 34 | 515175220 | Wrap_Tie 200 X 4.6 - Call Your Local BRP Dealership |
| 35 | 705600458 | Bearing |
| 36 | 705600541 | Bushing |
| 36a | 293300191 | O-Ring |
| 37 | 707000456 | End Clutch Pedal |
| 38 | 707000586 | Foam Filter |
| 39 | 707000876 | Rubber Mount |
| 40 | 707000877 | Frame Extension |
| 41 | 707000879 | Hose |
| 42 | 707000926 | Shifter Arm |
| 44 | 707000972 | Master Cylinder Ass'y |
| 45 | 707000973 | Rubber Mount |
| 46 | 707000995 | Pressure And Temperature Sensor |
| 47 | 707001103 | Double Ball Joint |
| 48 | 707001292 | Attach |
| 49 | 707001293 | LH Engine Support |
| 50 | 707001294 | RH Engine Support |
| 51 | 707001353 | Connector Support |
| 52 | 707001561 | Front Engine Support |
| 53 | 707001736 | Spacer |
| 54 | 707601057 | Upper Heat Deflector |
| 55 | 207662554 | Hex. Flange Screw M6 X 25 |
| 55 | 507032551 | Banjo Bolt |
| 56 | 234001410 | Flat Washer 10 mm |
| 57 | 719000049 | Clamps |
| 58 | 415129356 | Screw M4 X 20 |
| 59 | 219800096 | Cap Set |
| 60 | 219800297 | MICROSWITCH - Call your local BRP dealership |
| 61 | 707001211 | Master Cylinder Ass'y with Lever |
| 62 | 707001918 | Connecting Rod |
