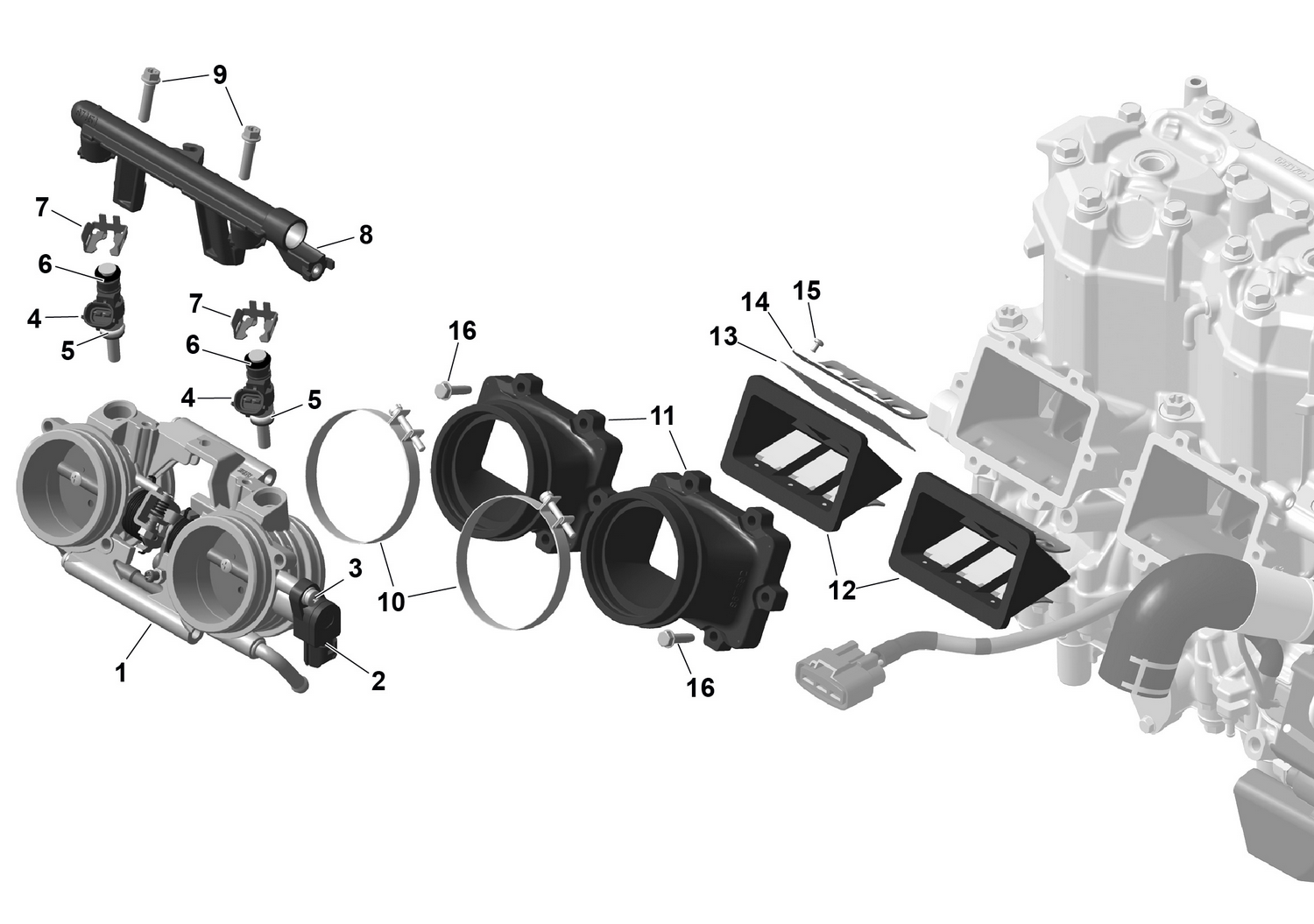

01- ROTAX - Electronic Fuel Injection
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 3 | XXX | Not Available As Spare Parts |
| 7 | 420853030 | Injector Clip |
| 8 | 420874158 | Fuel Rail |
| 9 | 420440234 | Torx Flange Screw M6 X 25 |
| 10 | 420251208 | Clamp |
| 11 | 420867392 | Intake Socket |
| 12 | 420924519 | Reed Valve Ass'y |
| 13 | 420924532 | Reed Pedal |
| 14 | 420924539 | Reed Pedal Stop |
| 15 | 420941215 | Phillips Screw M3 X 5 |
