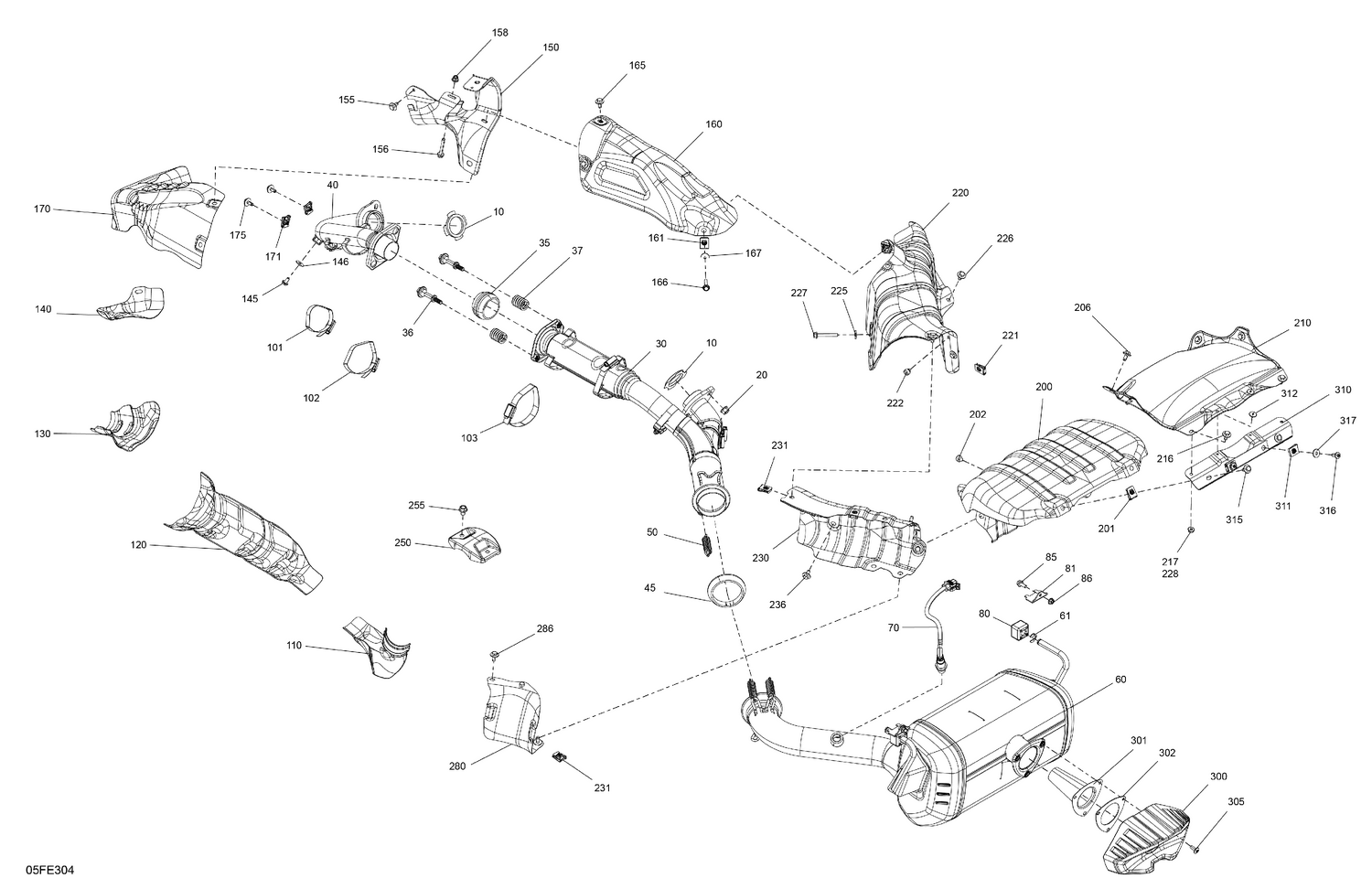

02- Engine - Exhaust
Parts (67)
| Ref | Part Number | Description |
|---|---|---|
| 10 | 707602697 | Exhaust Gasket |
| 20 | 233081436 | Hex. Flange Nut |
| 30 | 707603659 | Rear Exhaust Pipe |
| 35 | 707603774 | Exhaust Gasket |
| 36 | 250001306 | Hex. Flange Screw M8 X 38 |
| 37 | 707603775 | Compression Spring |
| 40 | 707602613 | Front Exhaust Pipe |
| 45 | 707603179 | Exhaust Gasket |
| 50 | 707601834 | Spring |
| 60 | 707602621 | Exhaust Muffler |
| 61 | 293370184 | External Retaining Ring |
| 70 | 707600872 | Oxygen Sensor |
| 80 | 707603000 | Vibration Damper |
| 81 | 707603200 | Muffler Support |
| 85 | 250000906 | Hex Flange Screw M6 X 16 |
| 86 | 233161414 | Hex. Flange Nut M6 |
| 101 | 293650337 | Tridon Gear Clamp |
| 102 | 293650338 | Tridon Gear Clamp |
| 103 | 293650342 | Tianjin Gear Clamp This part replaces 293650339. |
| 110 | 707603823 | Heat Shield |
| 120 | 707603822 | Heat Shield |
| 130 | 707603821 | Heat Shield |
| 140 | 707603845 | Heat Shield |
| 145 | 250000574 | Hex. Flange Screw M6 X 12 |
| 146 | 250200082 | Flat Washer |
| 150 | 707603607 | Heat Shield Support |
| 155 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 156 | 207664544 | Hex. Flange Screw M6 X 45 |
| 158 | 233061414 | Hex. Flange Nut M6 |
| 160 | 707602584 | Heat Shield |
| 161 | 250100208 | Panel Nut M6 X 1.0 |
| 165 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 166 | 207664544 | Hex. Flange Screw M6 X 45 |
| 167 | 234062410 | Flat Washer 6 mm |
| 170 | 707603265 | Heat Shield |
| 171 | 250100208 | Panel Nut M6 X 1.0 |
| 175 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 200 | 707603239 | Heat Shield |
| 201 | 250100208 | Panel Nut M6 X 1.0 |
| 202 | 293830005 | Rubber Bumper |
| 206 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 210 | 707603768 | Heat Shield |
| 216 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 217 | 233161414 | Hex. Flange Nut M6 |
| 220 | 707603237 | Heat Shield |
| 221 | 250100208 | Panel Nut M6 X 1.0 |
| 222 | 293830005 | Rubber Bumper |
| 225 | 234062410 | Flat Washer 6 mm |
| 226 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 227 | 207664544 | Hex. Flange Screw M6 X 45 |
| 228 | 233061414 | Hex. Flange Nut M6 |
| 230 | 707603003 | Heat Shield |
| 231 | 250100208 | Panel Nut M6 X 1.0 |
| 236 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 250 | 707603005 | Heat Shield |
| 255 | 207581244 | Hex. Flange Screw M8 X 12, Scotch Grip |
| 280 | 707603006 | Heat Shield |
| 286 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 300 | 707603759 | Muffler Trim |
| 301 | 707603520 | Spark Arrester |
| 302 | 707603102 | Exhaust Gasket |
| 305 | 250000717 | Torx Head Screw M6 X 16 |
| 310 | 707603767 | Heat Shield Support |
| 311 | 250100208 | Panel Nut M6 X 1.0 |
| 312 | 293150310 | Pop Rivet |
| 315 | 250001162 | Hex Sems Screw S.Grip Ht M6X16 |
| 316 | 250000717 | Torx Head Screw M6 X 16 |
