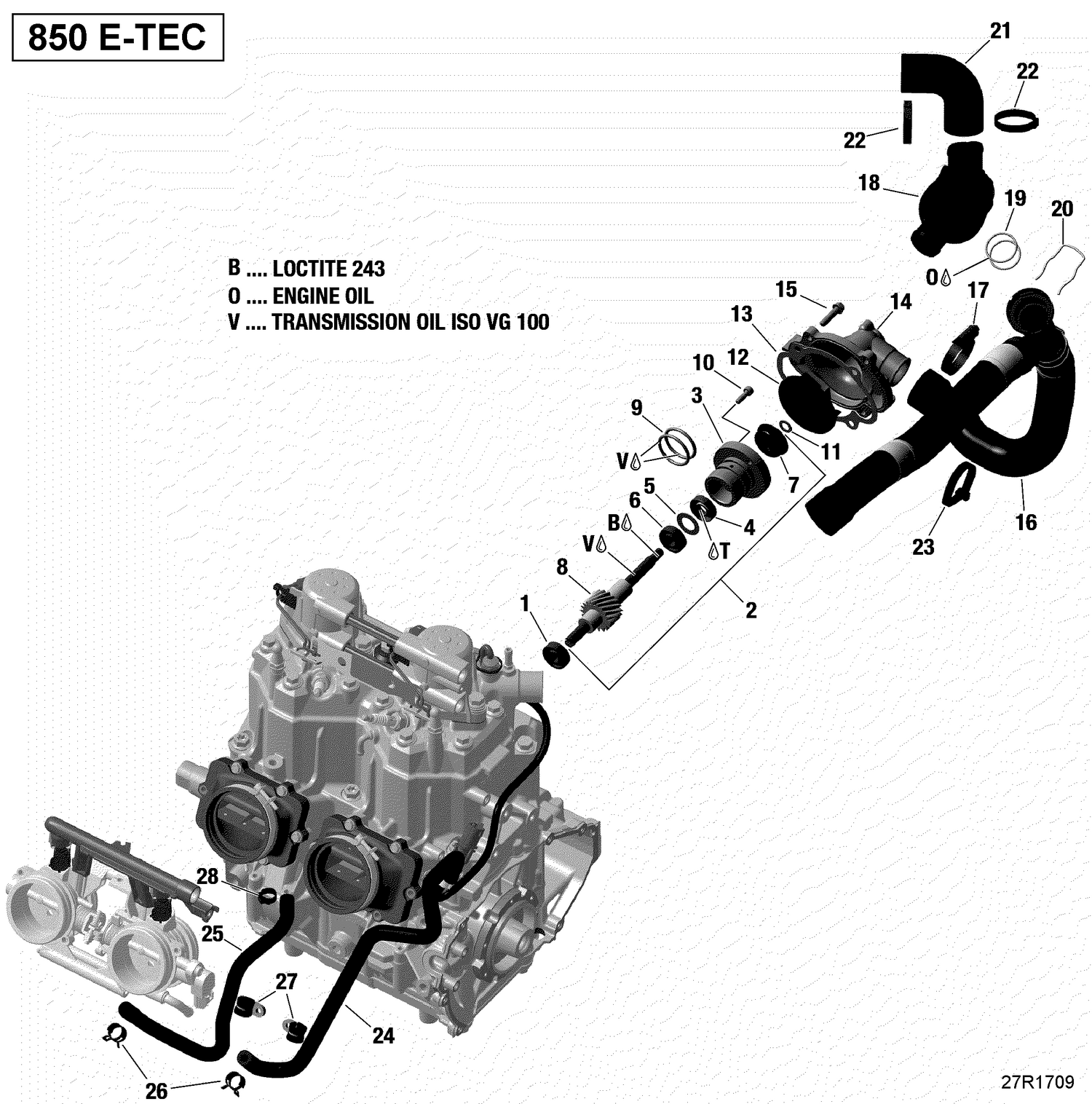

01- Engine Cooling - All Models
Parts (25)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420232100 | Ball Bearing |
| 3 | 420847930 | STEP COLLAR - Call your local BRP dealership |
| 4 | 420230195 | Oil Seal |
| 5 | 420927057 | THRUST WASHER - Call your local BRP dealership |
| 6 | 420232100 | Ball Bearing |
| 7 | 420650371 | Rotary Seal This part replaces 420650370. |
| 8 | Not | Available As Spare Part - Water Pump Shaft |
| 9 | 420950890 | O-Ring |
| 10 | 420840514 | Allen Screw M5 x 16 This part replaces 420840511. |
| 11 | 420944033 | Washer 8.4 |
| 12 | 420922805 | Water Impeller |
| 13 | 420430054 | Gasket Housing This part replaces 420430052. |
| 14 | 420822285 | Water Pump Housing |
| 15 | 420440235 | Torx Flange Screw M6 X 25 |
| 16 | 420822802 | Formed Hose This part replaces 420822801. |
| 17 | 420951120 | Clamp 26-38MM This part replaces 420251221. |
| 19 | 420430060 | O-ring |
| 20 | 420939344 | Spring Clip |
| 21 | 420822820 | Return Hose |
| 22 | 420951123 | Clamp 34.9-38.1MM |
| 23 | 420866716 | Tie-Rap |
| 24 | 420201516 | Molded Hose |
| 25 | 420201512 | Molded Hose |
| 26 | 420853511 | Clamp |
| 27 | 420851250 | Clamp |
