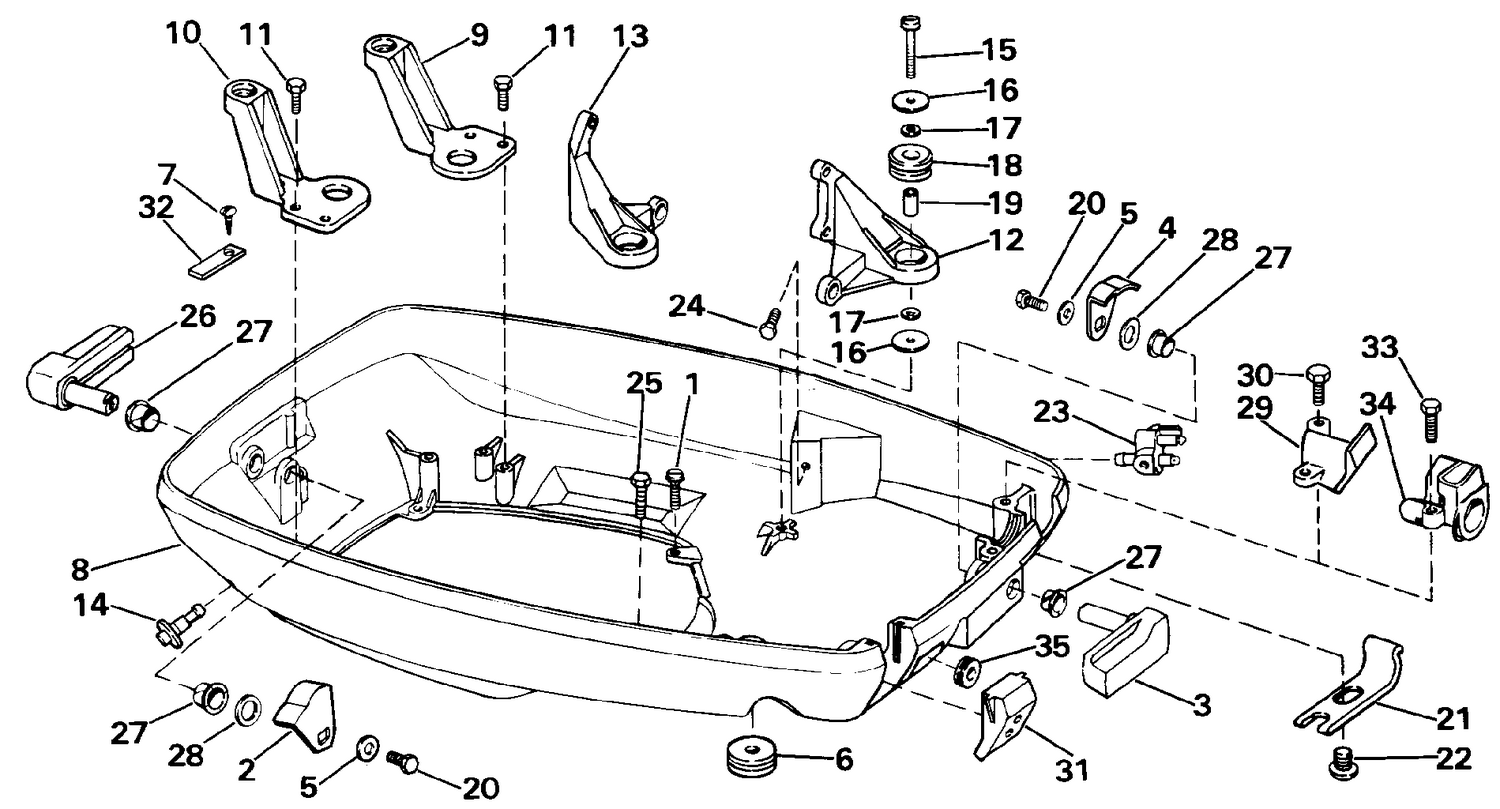

| Ref | Part Number | Description |
|---|
| 3 |
0322537 |
LATCH HANDLE & SHAFT ASSEMBLY |
| 4 |
0330253 |
HOOK Front |
| 8 |
0434173 |
ENGINE COVER, Lower This part replaces 0323067. |
| 9 |
0317290 |
BRACKET, Port, rear |
| 10 |
0317291 |
BRACKET, Starboard, rear |
| 12 |
0313839 |
BRACKET, Cover, port |
| 13 |
0313840 |
BRACKET, Cover, starboard |
| 14 |
0321885 |
NIPPLE |
| 15 |
0329240 |
SCREW |
| 17 |
0329241 |
RONDELLE |
| 18 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 19 |
0302406 |
SLEEVE |
| 20 |
0304027 |
VIS, arbre de commande de sens de marche This part replaces 0330154. |
| 21 |
0333739 |
RETAINER, Fuel hose to cover This part replaces 0318313. |
| 22 |
0310539 |
SCREW, Clamp choke solenoid This part replaces 0328745. |
| 23 |
0393334 |
CONNECTEUR, carburant - mâle |
| 24 |
0328731 |
VIS, câble de verrouillage This part replaces 0329265. |
| 25 |
0329238 |
SCREW, Cover mounting |
| 26 |
0384338 |
HANDLE & SHAFT ASSY. |
| 31 |
0318401 |
GROMMET, Remote cont cable |
| 32 |
0206268 |
SPRING, Handle detent |
| 33 |
0909533 |
SCREW, Pressure relief valve cover |
| 34 |
0329236 |
CLAMP, Primer pump |
