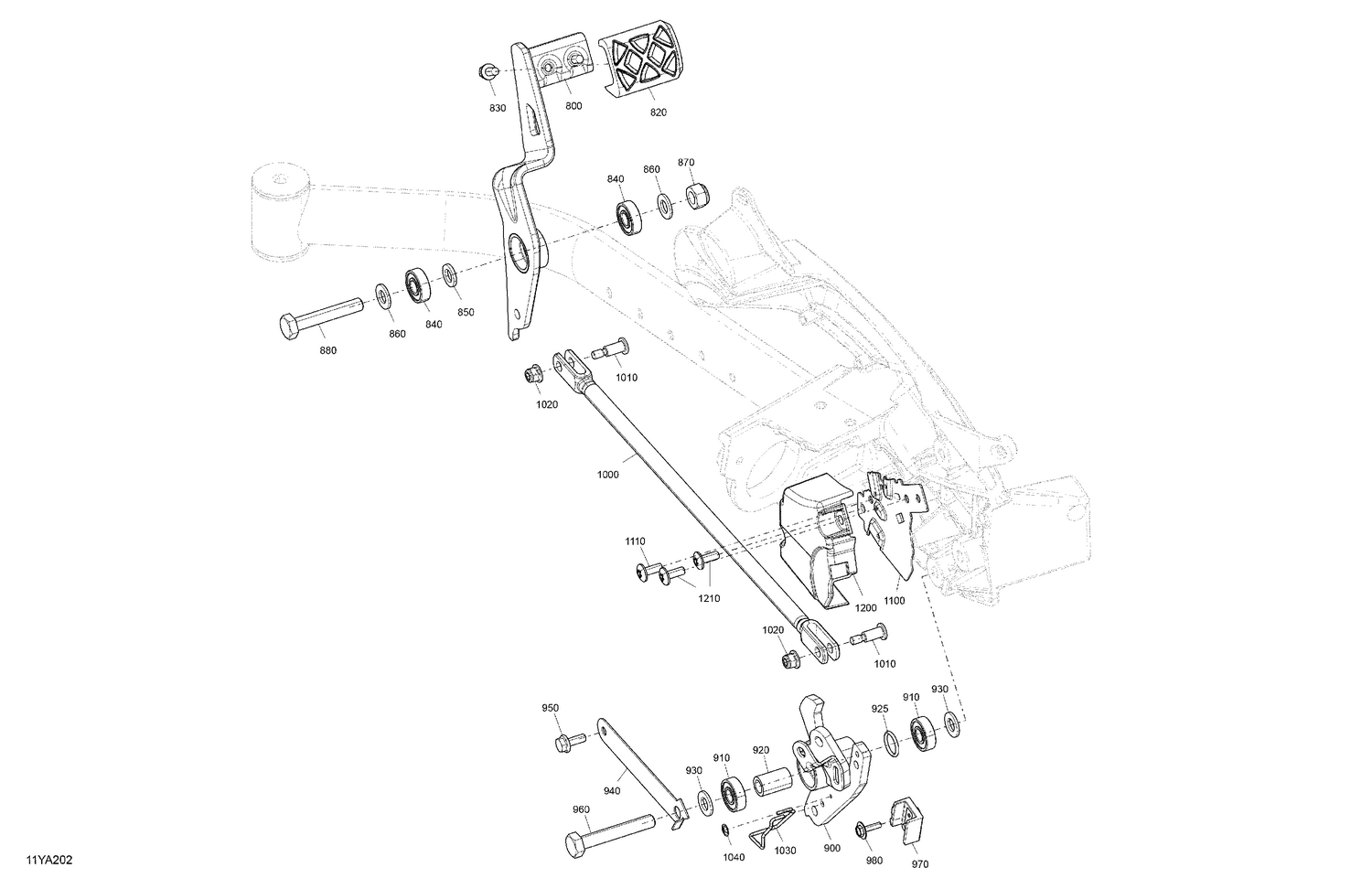

03- Mechanic - Pedal Brake
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 800 | 705601419 | Brake Pedal |
| 820 | 705004933 | Rubber Pad |
| 830 | 210261250 | Hex. Flange Screw M6 X 12 |
| 840 | 705600458 | Bearing |
| 850 | 503192496 | Washer |
| 860 | 503183800 | Washer |
| 870 | 233601466 | Elastic Locking Nut M10 |
| 880 | 207006056 | Hex. Cap Screw M10 X 60 |
| 900 | 705601308 | Master Cylinder Rocker |
| 910 | 705600458 | Bearing |
| 920 | 705600541 | Bushing |
| 925 | 293300191 | O-Ring |
| 930 | 503183800 | Washer |
| 940 | 705601229 | Locking Tab |
| 950 | 207561644 | Hex. Flange Screw M6 X 16, Scotch Grip |
| 960 | 207206534 | Hex. Screw M10 X 65, Scotch Grip |
| 970 | 705601375 | Brake Master Cylinder Stopper |
| 980 | 250000725 | Screw M4 X 16 |
| 1000 | 219400561 | Brake Linkage Kit (313.7 mm) |
| 1000 | 219400563 | Brake Linkage Kit (359.3 mm) |
| 1000 | 219400566 | Brake Linkage Kit (458.3 mm) |
| 1000 | 219400571 | Brake Linkage Kit (505.1 mm) |
| 1000 | 219400628 | Brake Linkage Kit (410.7 mm) |
| 1010 | 250000714 | Flange Screw M6 X 26 |
| 1020 | 233261466 | Hex. Flange Elastic Nut M6 |
| 1030 | 705601350 | Quick-Attach Bracket |
| 1040 | 250100178 | Push Nut |
| 1100 | 705601342 | Light Switch Bracket |
| 1110 | 250000717 | Torx Head Screw M6 X 16 |
| 1200 | 705601343 | Switch Deflector |
