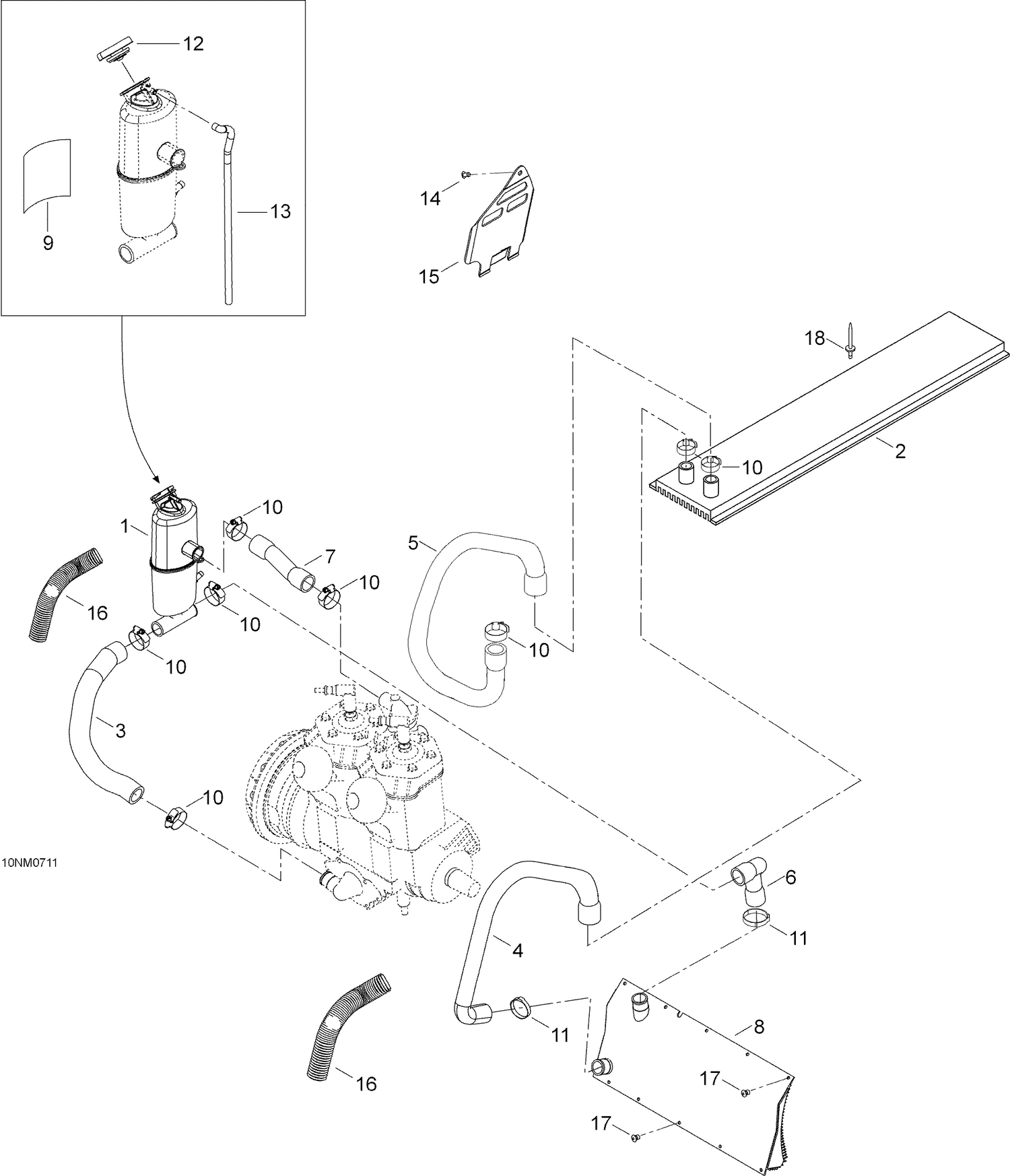

| Ref | Part Number | Description |
|---|
| 1 |
509000408 |
Coolant Tank This part replaces 509000324. |
| 2 |
605253372 |
Radiator |
| 3 |
509000135 |
ENGINE INLET HOSE - Call your local BRP dealership |
| 4 |
509000335 |
Hose |
| 5 |
509000334 |
ENGINE OUTLET HOSE - Call your local BRP dealership |
| 6 |
605354599 |
Hose |
| 7 |
605354602 |
HOSE - Call your local BRP dealership |
| 8 |
518323903 |
FRONT RADIATOR - Call your local BRP dealership |
| 9 |
509000190 |
REFECTIVE SHEET - Call your local BRP dealership |
| 10 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 |
509000181 |
Clamp |
| 12 |
509000187 |
Pressure Cap |
| 13 |
39038 |
Hose |
| 14 |
241151640 |
Hex. flanged screw K50 x 16 |
| 15 |
509000257 |
DEFLECTOR - Call your local BRP dealership |
| 16 |
28036 |
Tubing |
| 17 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
