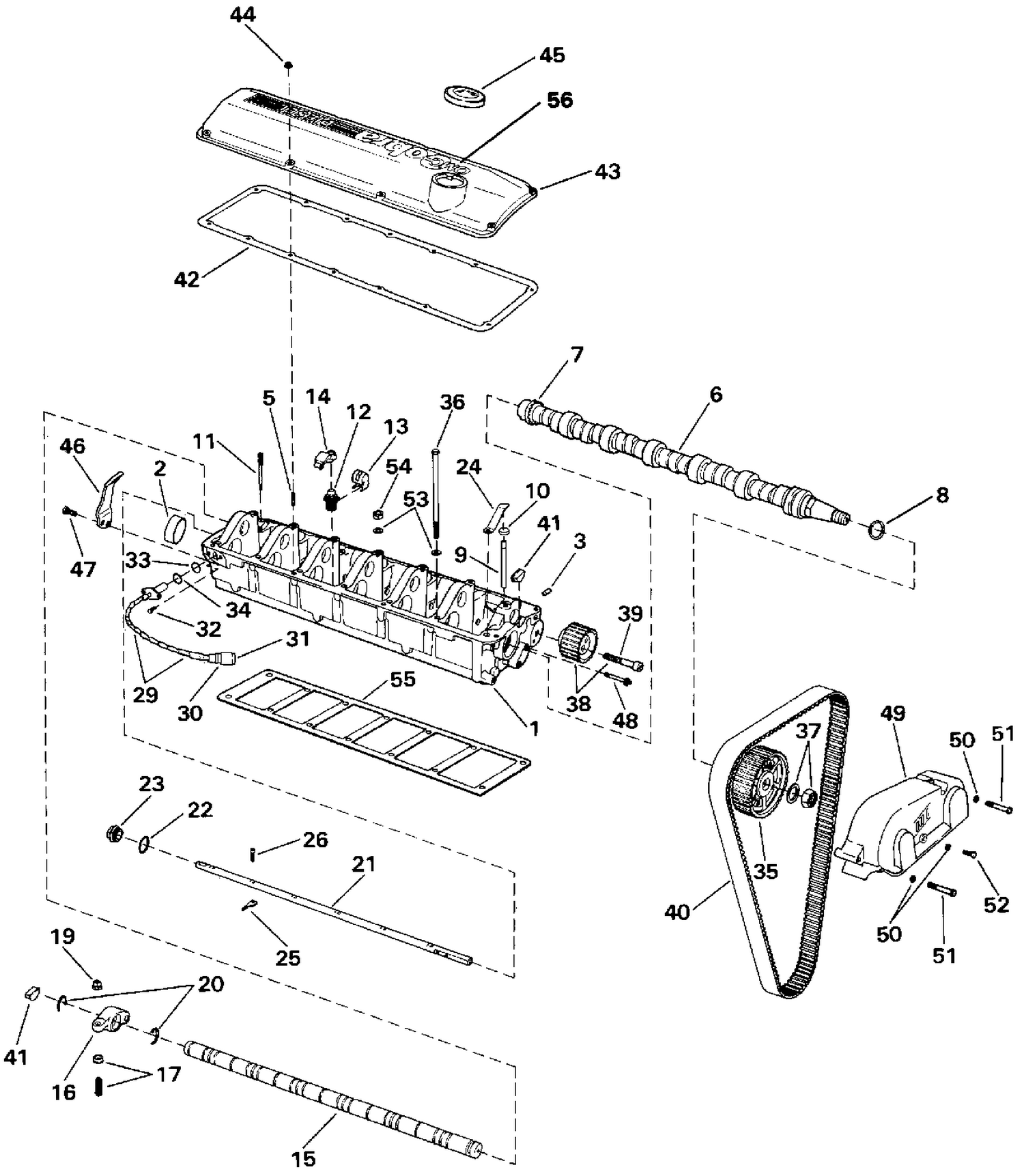

CAMSHAFT HOUSING — Parts Catalog

Parts (50)

Ref	Part Number	Description
1	0987375	CAMSHAFT HOUSING
2	0915426	CORE PLUG, Housing, rear
3	0915427	DOWEL, Adapter to actuator
5	0915429	STUD, Cover
6	0987376	CAMSHAFT
7	0915430	SENSOR RING, Rev. counter
8	0915431	SEAL, Camshaft
9	0915432	RETAINER, Camshaft
10	0915433	SEAL, Retainer, camshaft
11	0915445	LOCKING PIN, Control rod
12	0915435	ADJUSTER, Valve lash
13	0915436	RETAINER, Cam follower
14	0915437	CAM FOLLOWER
15	0915438	ROCKER SHAFT
16	0915439	ROCKER ARM
17	0987377	TAPPET ADJUSTER ASSY., Unit injector
19	0915440	NUT, Tappet, unit injector
20	0915441	KEEPER RING, Rocker arm
21	0915442	CONTROL ROD
22	0915443	SEAL, Plug, control rod
23	0915444	PLUG, Control rod
24	0915434	POSITIONER, Retainer, camshaft
25	0915446	CONTROL LINK, Unit injector
26	0915447	BOLT, Control link, unit injector
29	0987869	SPEED SENSOR
32	0915451	BOLT, Clamp, pipe to heat exchanger
33	0915448	SEAL, Speed sensor
34	0915449	SPACER, Seal, speed sensor
35	0915455	SPROCKET, Timing belt, camshaft
36	0915454	BOLT, Block
37	0915457	NUT, Sprocket, timing belt
38	0915458	TENSIONER, Timing belt
39	0915459	BOLT, Tensioner, timing belt
40	0915460	TIMING BELT
41	0915461	SEAL, Rocker shaft
42	0915462	GASKET, Cover, camshaft housing
43	0915463	COVER, Camshaft housing
44	0915464	NUT, Cover, camshaft housing
45	0915465	CAP, Engine oil
46	0915466	LIFTING EYE, Engine
47	0915467	BOLT, Elbow support
48	0915468	EXTENSION STUD, Front
49	0915469	COVER, Timing belt, upper
50	0915470	WASHER, Clamp to heatshield
51	0915471	BOLT, Cover, timing belt
52	0915472	BOLT, Cover, timing belt
53	0915501	WASHER, Block
54	0915453	NUT, Block
55	0915452	GASKET, Block
0987374	0987374	PARTIAL CAMSHAFT HOUSING
