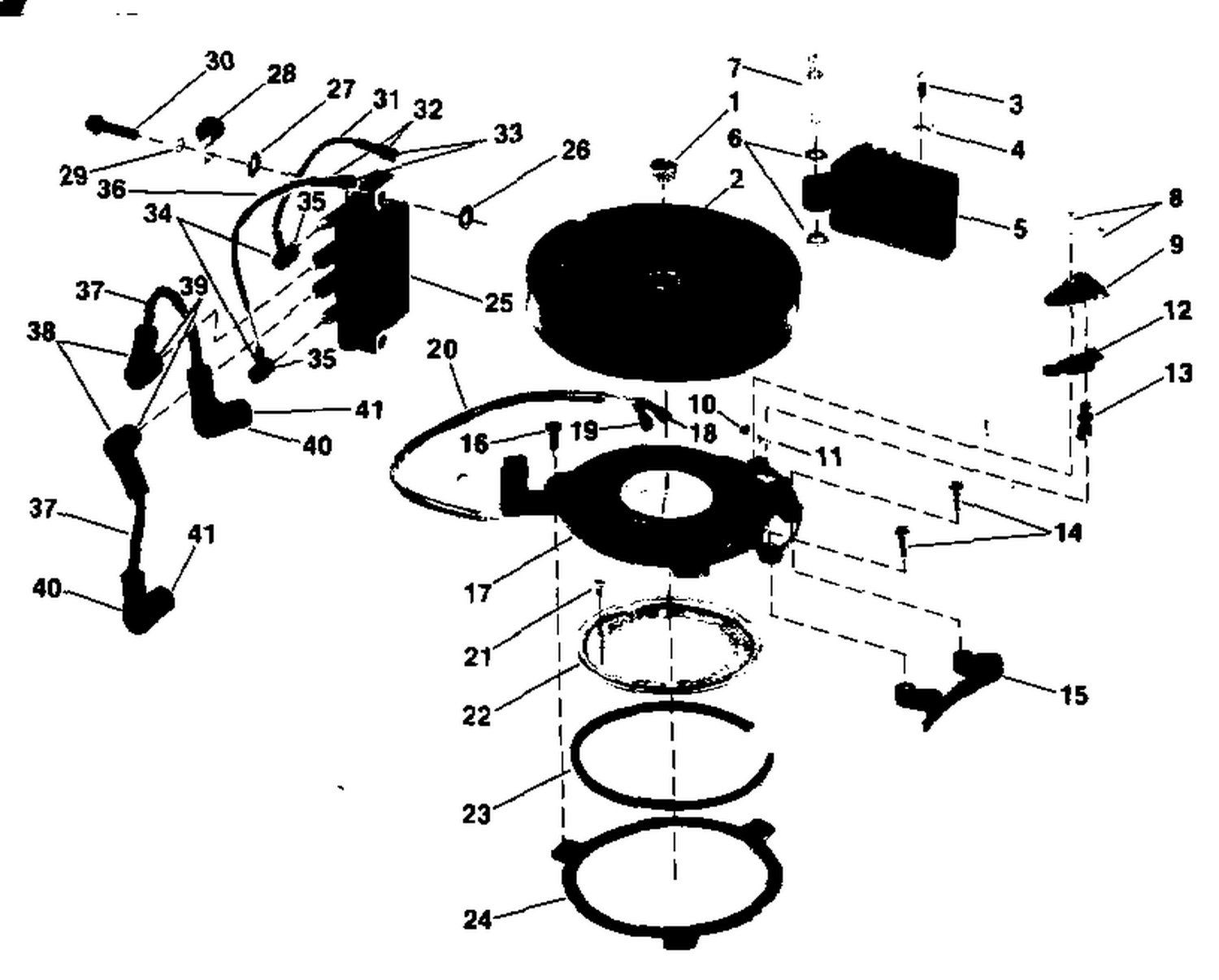

| Ref | Part Number | Description |
|---|
| 2 |
0583840 |
FLYWHEEL & HUB ASSEMBLY |
| 3 |
0333674 |
SCREW, Anode |
| 5 |
0583600 |
POWER PACK ASSEMBLY |
| 6 |
0333517 |
WASHER, Power pack to starter hsg. stud |
| 7 |
0334760 |
STUD, Power pack & starter hsg. |
| 8 |
0332984 |
SCREW, Retainer timer base plate |
| 9 |
0332982 |
RETAINER, Lever-timer base plate |
| 10 |
0332224 |
ROLLER, Timer base plate |
| 11 |
0332225 |
SPRING, Timer base plate |
| 12 |
0332061 |
LEVER, Activation |
| 13 |
0341304 |
RETAINER, Cable to base This part replaces 0332097. |
| 15 |
0397155 |
THROTTLE CAM & INSERT ASSY. |
| 17 |
0583259 |
TIMER BASE & SENSOR ASSEMBLY |
| 18 |
0512832 |
TERMINAL |
| 19 |
0512770 |
COVER |
| 21 |
0332070 |
SCREW, Retaining plate This part replaces 0326875. |
| 22 |
0335890 |
SUPPORT PLATE This part replaces 0332288. |
| 23 |
0332024 |
BEARING, Timer base plate to support plate |
| 24 |
0336392 |
RETAINER, Support plate to timer base plate This part replaces 0332023. |
| 25 |
0583740 |
COIL Assy |
| 26 |
0329176 |
FIBER WASHER, Ignition coil |
| 28 |
0310441 |
CLAMP, CPS lead |
| 31 |
0583594 |
LEAD AY., Ign. coil to power pack |
| 32 |
0512770 |
COVER |
| 33 |
0512832 |
TERMINAL |
| 36 |
0583595 |
LEAD AY., Ign. coil to power pack (includes 32, 33, 34 & 35) |
| 37 |
HIGH |
TENSION LEAD ONLY |
| 0582365 |
0582365 |
H.T. LEAD ASSEMBLY, Spark plugs to ignition coil |
