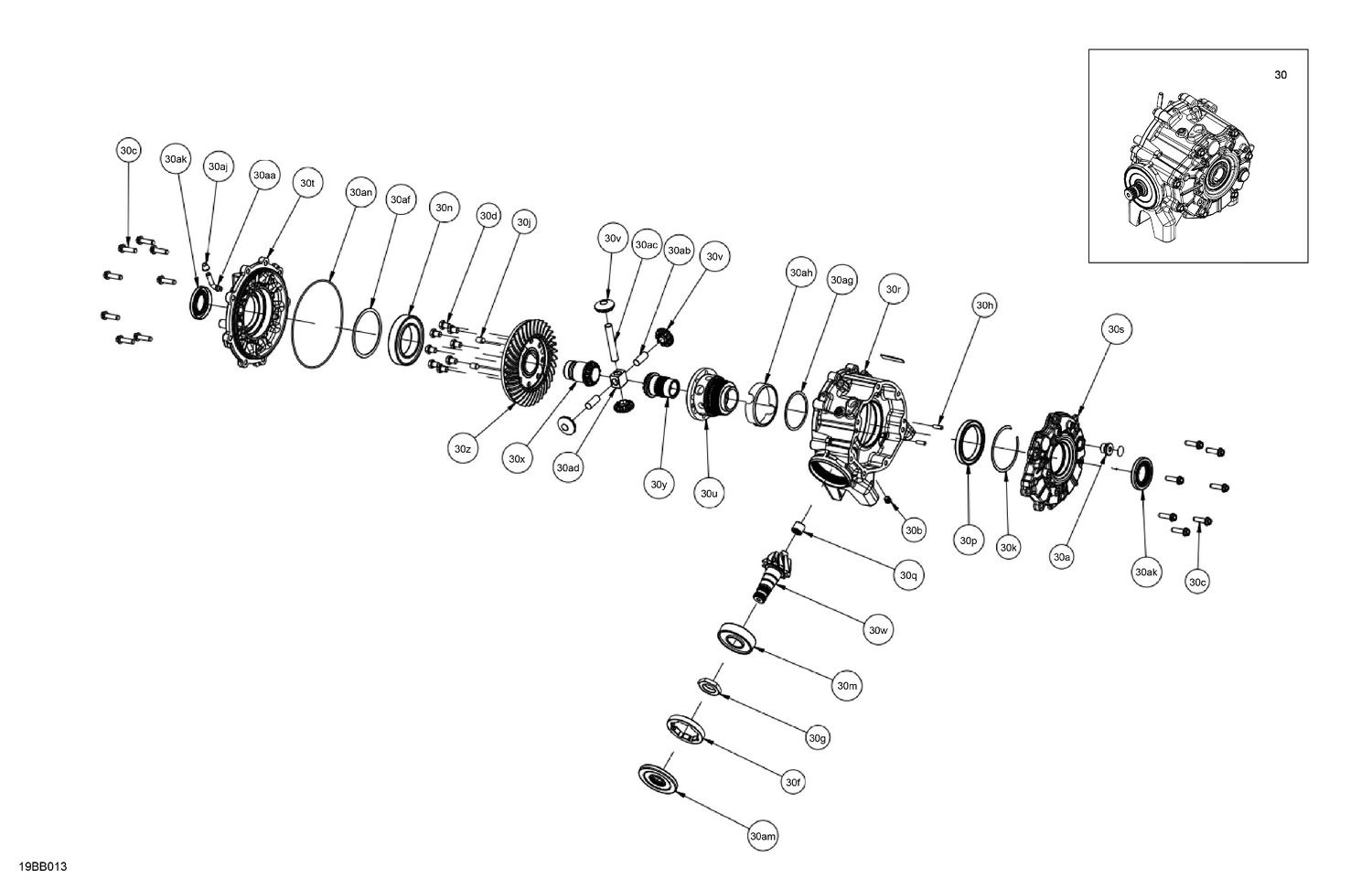

04- Drive - Front - Differential Parts - Model With ABS
Parts (32)
| Ref | Part Number | Description |
|---|---|---|
| 30a | 705501889 | Fill Level Plug |
| 30aa | 705401935 | Vent Valve |
| 30ab | 715900543 | Pinion Pin 0.5 X 1.250 |
| 30ac | 715900542 | Pinion Pin 0.5 X 3.000 |
| 30ad | 715900541 | Coupler, Pin |
| 30af | 715900539 | Shim 74.50 X 66.00 |
| 30ag | 715900538 | Shim 3.735 X 3.300 |
| 30ah | 715900535 | Cross Pin Retainer |
| 30aj | 715900533 | Vent Cap 5/16 |
| 30ak | 715900531 | Oil Seal |
| 30am | 705401827 | Oil Seal, Triple Lip 25 X 79 X 8 |
| 30b | 715900563 | Fill Level Plug M10 |
| 30c | 705501886 | Bolt |
| 30d | 715900561 | Hex Screw 3/8 X 0.500 |
| 30f | 705401819 | Nut M75 X 1.5 |
| 30g | 705401820 | Nut M27 X 1.5 |
| 30h | 715900559 | Dowel Pin |
| 30j | 715900618 | Dowell Pin |
| 30k | 715900558 | Retainin Ring |
| 30m | 705401821 | Ball Bearing |
| 30n | 715900556 | Ball Bearing 60 X 95 X 18 |
| 30p | 715900554 | Ball Bearing 65 X 85 X 10 |
| 30q | 715900634 | Needle Bearing |
| 30r | 715900675 | Mid Case |
| 30s | 715900685 | RH Cover |
| 30t | 715900686 | LH Cover |
| 30u | 715900617 | Housing |
| 30v | 715900548 | Pinion 10T |
| 30w | 715900635 | Pinion 10 T |
| 30x | 715900546 | Gear 14T |
| 30y | 715900545 | Gear 14T |
| 30z | 715900676 | Gear 36T |
