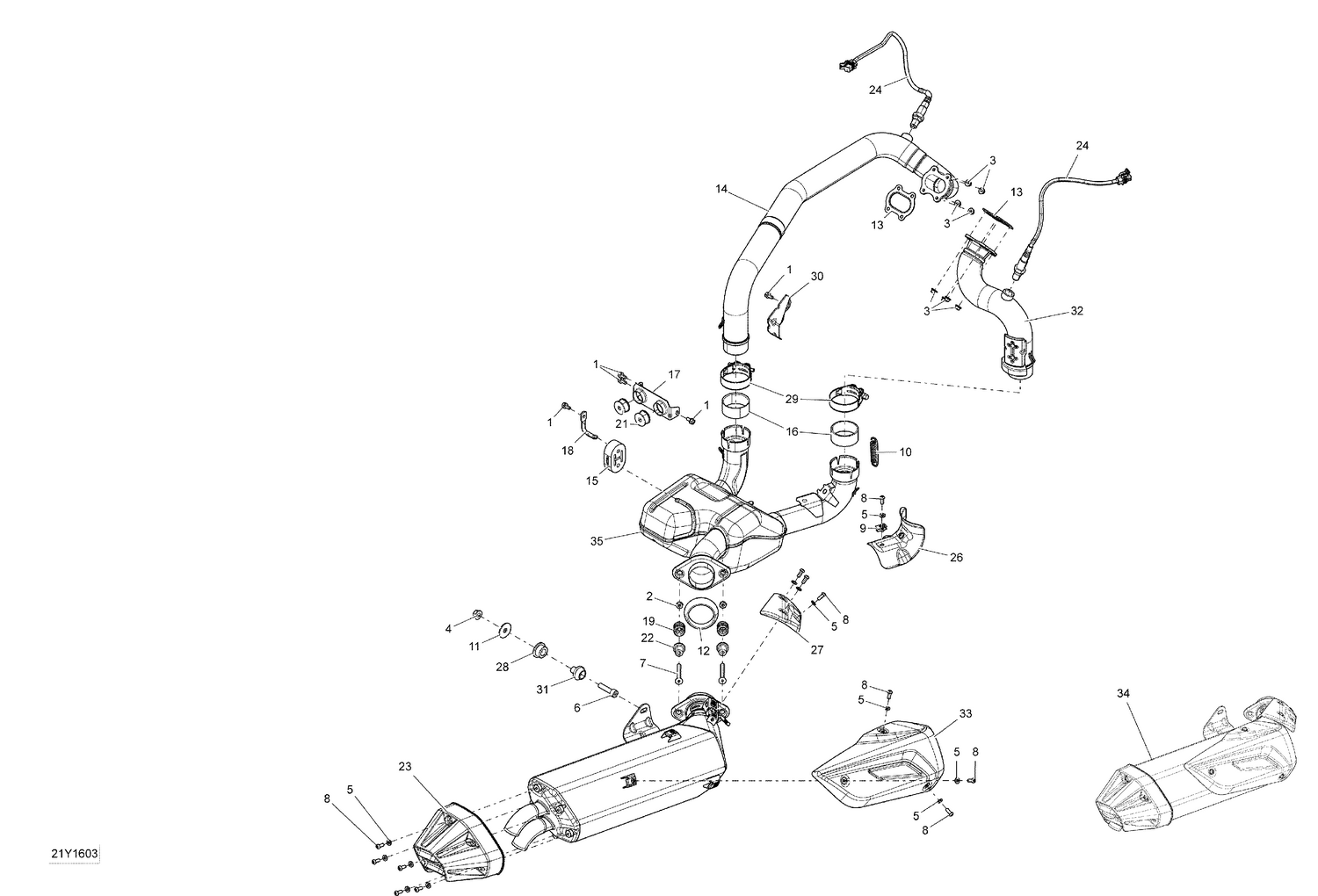

01- Exhaust System
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 210261250 | Hex. Flange Screw M6 X 12 |
| 2 | 232581600 | Hex. Elastic Nut M8 |
| 3 | 233061414 | Hex. Flange Nut M6 |
| 4 | 233101600 | Hex. Flange Nut M10 |
| 5 | 234061600 | Stainless Flat Washer M6 |
| 6 | 244004060 | Hex. Screw M10 X 40, Scotch Grip |
| 7 | 250000404 | SOCKET SCREW, M8 X 75 S. GRIP - Call your local BRP dealership |
| 8 | 250000437 | Stainless, Socket Screw, M6X16 S.Grip |
| 9 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 10 | 415107100 | Spring |
| 11 | 506150000 | Washer 10 mm |
| 12 | 514053677 | Exhaust Gasket |
| 13 | 707600296 | Seal |
| 14 | 707600634 | PIPE_EXHAUST IN WELD - Call your local BRP dealership |
| 15 | 707600638 | Rubber Bumper |
| 16 | 707600650 | Pipe Slip Joint |
| 17 | 707600661 | Front Bracket |
| 18 | 707600666 | RETAINING ROD - Call your local BRP dealership |
| 19 | 707600682 | Spring |
| 21 | 707600702 | Anti-Vibration Rubber |
| 22 | 707600750 | Bushing |
| 24 | 707600872 | Oxygen Sensor |
| 26 | 707601042 | Heat Shield |
| 28 | 707601236 | BUSHING - Call your local BRP dealership |
| 29 | 707601249 | COLLAR - Call your local BRP dealership |
| 30 | 707601251 | DEFLECTOR - Call your local BRP dealership |
| 31 | 707601276 | BUSHING - Call your local BRP dealership |
| 32 | 707601367 | REAR EXHAUST TUNED PIPE - Call your local BRP dealership |
