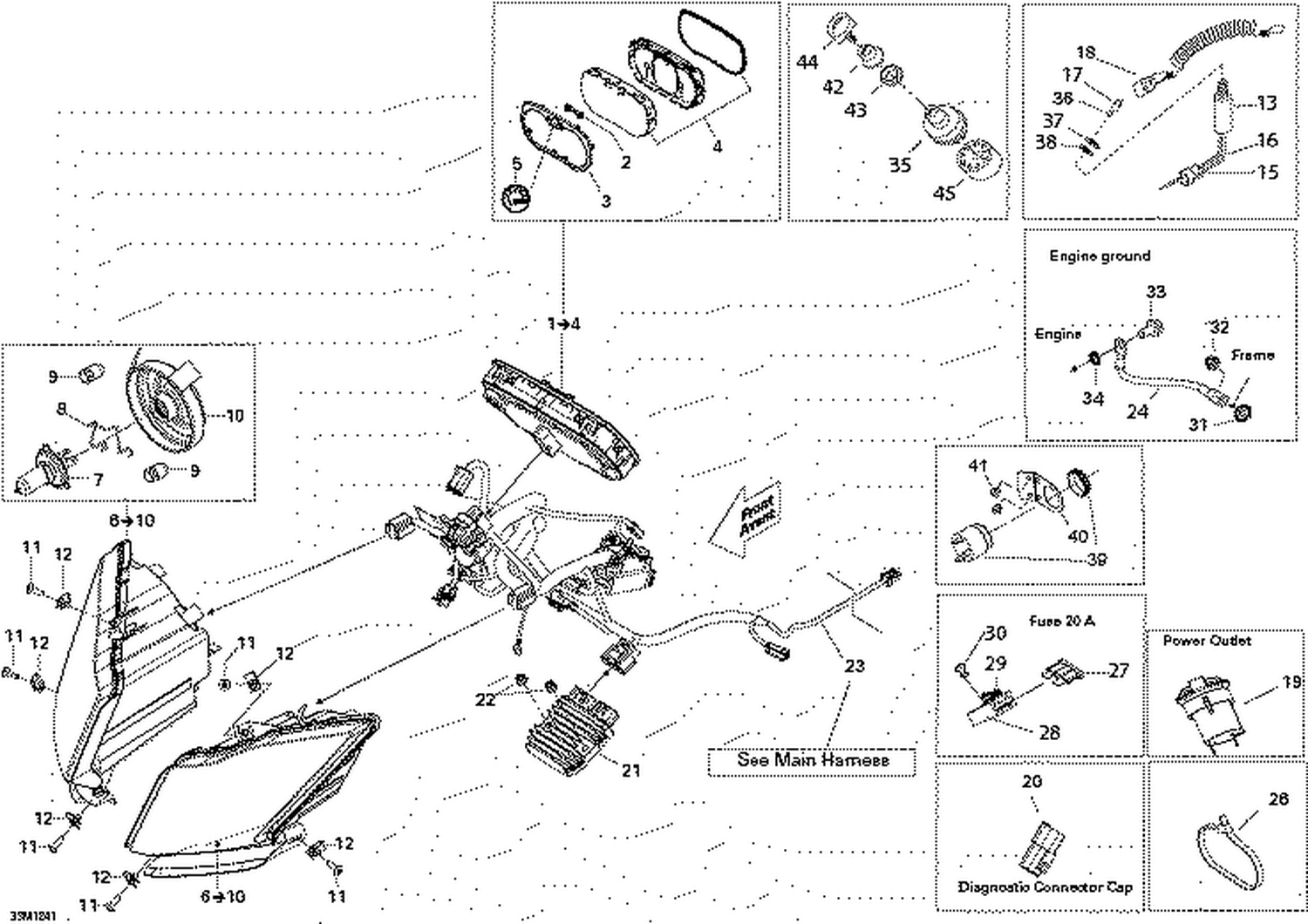

10- Electrical System
Parts (46)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 515177279 | Indicator This part replaces 515177254. |
| 2 | Not | Available As Spare Part - Speedometer Button |
| 3 | 415129348 | Gauge Ring |
| 4 | 415129349 | Lens |
| 5 | 516006224 | BRP Logo 20MM x 2MM This part replaces 219902677. |
| 6 | 517304194 | RH Headlamp Ass'y |
| 6 | 517304195 | LH Headlamp Ass'y |
| 7 | 515176274 | Halogen Bulb, 60/55 W, 12 V ( H4 ) |
| 8 | Not | Available As Spare Part - Bulb Holder |
| 9 | 515176498 | Cap |
| 10 | 219800280 | Rubber Cap Protector This part replaces 515176499. |
| 11 | 250000722 | Torx Screw M6 X 20 This part replaces 250000128. |
| 12 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 13 | 515175653 | Brake Switch |
| 15 | 570151100 | Plunger Cap |
| 16 | 409902000 | Tubing 12 mm |
| 17 | 515145900 | Switch Nut |
| 18 | 515178283 | Cap Ass'y This part replaces 515176463. |
| 19 | 710001248 | DC Outlet |
| 20 | 515176234 | FEMALE TERMINAL HOUSING, 6 CIRCUITS - Call your local BRP dealership |
| 21 | 515176699 | Voltage Regulator |
| 22 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 23 | 515177074 | FRAME HARNESS - Call your local BRP dealership |
| 24 | 515176745 | Ground Wire |
| 26 | 293750001 | Tie Wrap 94 mm |
| 26 | 293750002 | Tie Wrap 142 mm |
| 26 | 293750008 | Tie Wrap 368 mm |
| 26 | 414115200 | Tie-Rap 180 mm |
| 27 | 409003900 | Fuse, 20 Amperes |
| 28 | 515176681 | Lock |
| 29 | 270000141 | Clip This part replaces 515175917. |
| 30 | 293150037 | Avdel Rivet 3/16" |
| 31 | 250200041 | Lock Washer Serrated M6 |
| 32 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 |
| 33 | 207581646 | Hex. Flange Screw M8 X 16, Scotch Grip |
| 34 | 234481608 | Serrated Lock Washer 8 mm |
| 35 | 515177063 | Ignition Swirch |
| 36 | 570151100 | Plunger Cap |
| 37 | 250200084 | Flat Washer |
| 38 | 732610010 | RH Threaded Hex. Jam Nut M10 |
| 39 | 414792102 | Back-Up Alarm |
| 40 | 515176822 | REVERSE BUZZ HOLDER - Call your local BRP dealership |
| 41 | 250000725 | Screw M4 X 16 This part replaces 250000113. |
| 42 | 570151100 | Plunger Cap |
| 43 | 410112100 | FACE NUT - Call your local BRP dealership |
| 44 | 415129350 | BLANK KEY - Call your local BRP dealership |
