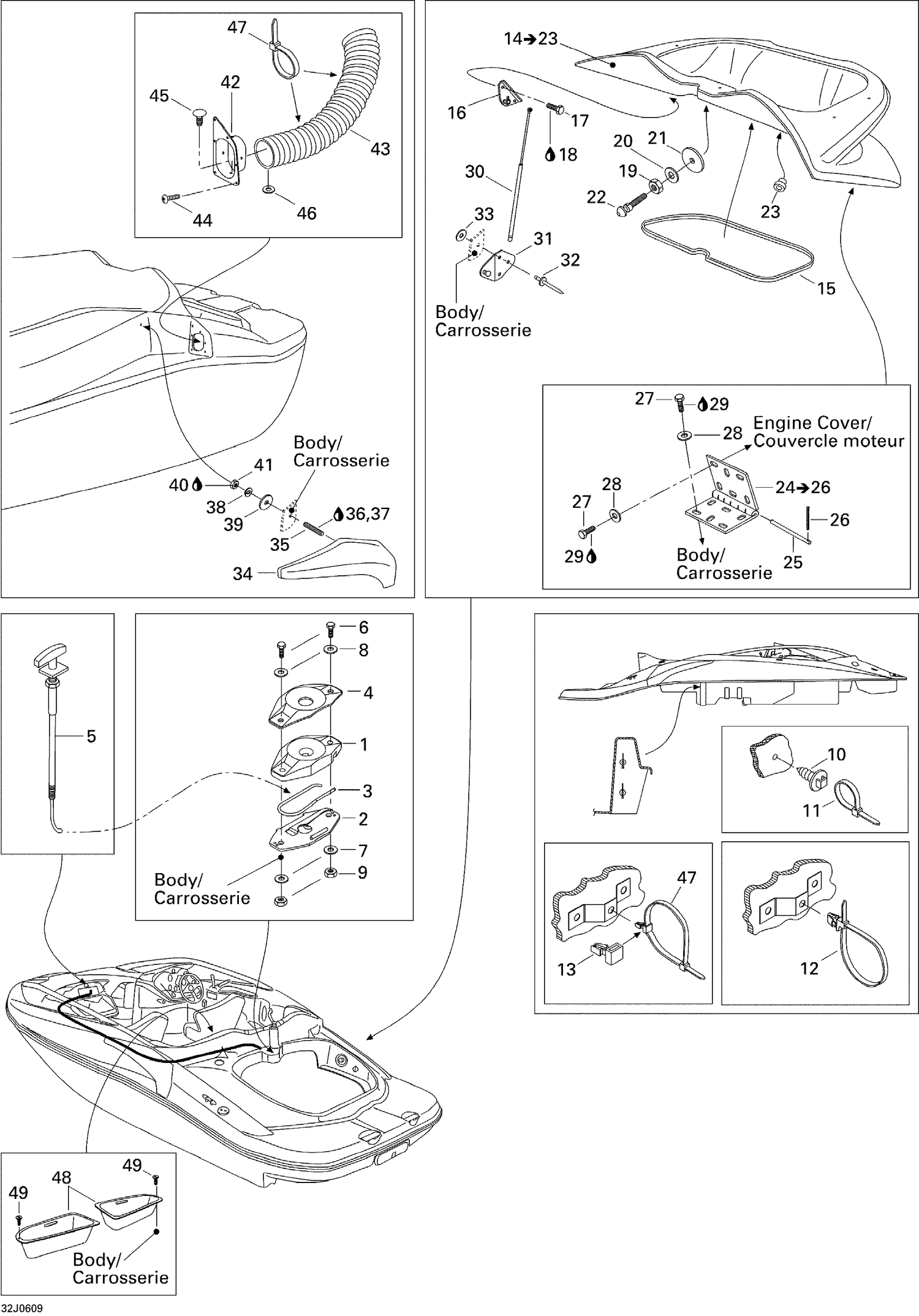

| Ref | Part Number | Description |
|---|
| 1 |
204070037 |
LATCH BASE - Call your local BRP dealership |
| 2 |
204070036 |
LATCH COVER - Call your local BRP dealership |
| 3 |
204070038 |
SPRING - Call your local BRP dealership |
| 4 |
204070952 |
LATCH PROTECTOR - Call your local BRP dealership |
| 5 |
204070049 |
LATCH CABLE - Call your local BRP dealership |
| 6 |
207163560 |
Hex. Screw M6 X 35 |
| 7 |
234062600 |
Flat Washer M6, Stainless |
| 8 |
234061600 |
Stainless Flat Washer M6 |
| 9 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 10 |
293730040 |
Mount Dart This part replaces 293730018. |
| 11 |
414115200 |
Tie-Rap 180 mm |
| 12 |
204130098 |
TIE RAP WITH DART - Call your local BRP dealership |
| 13 |
204130099 |
DART, BLACK - Call your local BRP dealership |
| 15 |
204130083 |
D-SEAL RUBBER - Call your local BRP dealership |
| 16 |
204070065 |
SHOCK BRACKET - Call your local BRP dealership |
| 17 |
207141660 |
Hex. Screw M4 X 16 |
| 18 |
293800060 |
Loctite 243, 10 ml |
| 19 |
232100600 |
Hex. Jam Nut M10 |
| 20 |
234002600 |
Flat Washer 10 mm, Stainless |
| 21 |
291000628 |
RUBBER WASHER - Call your local BRP dealership |
| 22 |
291001420 |
Latch Stud |
| 23 |
293720017 |
GROMMET - Call your local BRP dealership |
| 25 |
204070204 |
HINGE ROD - Call your local BRP dealership |
| 26 |
204070205 |
Cotter Pin M2.5 X 12 |
| 27 |
207162560 |
Hex. Screw M6 X 25 |
| 28 |
234061600 |
Stainless Flat Washer M6 |
| 29 |
293800060 |
Loctite 243, 10 ml |
| 31 |
204070065 |
SHOCK BRACKET - Call your local BRP dealership |
| 32 |
293150201 |
RIVET_POP 3/16 - Call your local BRP dealership This part replaces 204130014. |
| 33 |
234051600 |
Flat Washer M5, Stainless |
| 35 |
204100142 |
Set Screw 1/4-20 |
| 36 |
219704458 |
Was 293800041 Loctite Primer 7649 |
| 37 |
293800005 |
Loctite 271, 10 ml |
| 38 |
211200025 |
Lock Washer 1/4” |
| 39 |
204100089 |
FLAT WASHER 9/32? - Call your local BRP dealership |
| 40 |
293800060 |
Loctite 243, 10 ml |
| 41 |
211100026 |
HEX. NUT 1/4 - Call your local BRP dealership |
| 43 |
219704358 |
Was 204050122 Vent Hose 4" |
| 44 |
250000090 |
TAPPING SCREW M4.2 X 19 - Call your local BRP dealership |
| 45 |
293730006 |
Black, Dart |
| 46 |
234062600 |
Flat Washer M6, Stainless |
| 47 |
293750008 |
Tie Wrap 368 mm |
