| Ref | Part Number | Description |
|---|
| 1 |
0206408 |
CASE GUIDE,Control hsg. |
| 2 |
0279175 |
CHOKE SWITCH ASSEMBLY |
| 3 |
0585992 |
HORN This part replaces 0279336. |

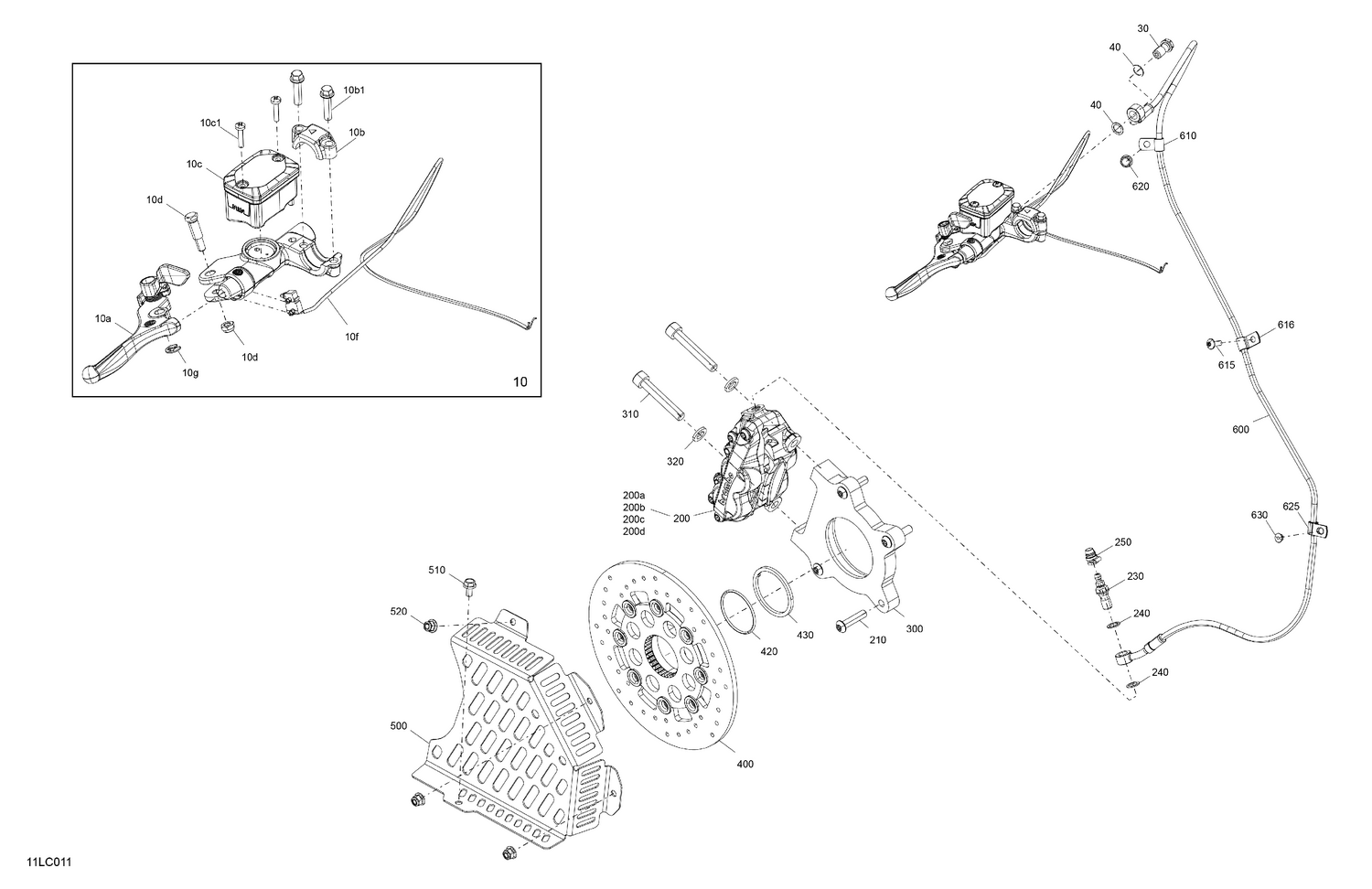

| 10a |
507032476 |
Lever With Parking Lock |
| 10b1 |
250000447 |
Hex Flanged Screw M6 X 25 |
| 10c1 |
415129356 |
Screw M4 X 20 |
| 10d |
415030000 |
Pin Ass'y |
| 10f |
507032601 |
Microswitch |
| 10g |
414439000 |
Circlip |
| 11 |
0328737 |
RONDELLE, levier de sens de marche et manette des gaz This part replaces 0306561. |
| 12 |
0319823 |
SCREW, Control housing This part replaces 0318666. |
| 13 |
0307025 |
SCREW,Friction adjusting screw |
| 17 |
0308078 |
CLAMP |
| 24 |
0314002 |
BUSHING |
| 25 |
0318645 |
BUSHING SHIFT LEVER |
| 26 |
0318821 |
GUIDE, Warm up link |
| 28 |
0317791 |
WAVE WASHER, Plate |
| 29 |
0319210 |
HOUSING |
| 30 |
0318626 |
BILLE |
| 30 |
507032551 |
Banjo Bolt |
| 31 |
0320610 |
CAM, Throttle This part replaces 0386352. |
| 32 |
0317912 |
ACCESS COVER |
| 33 |
0317913 |
LEVER |
| 34 |
0317927 |
SWITCH PLATE |
| 35 |
0317930 |
MOUNTING BRACKET, Horn |
| 36 |
0318153 |
KNOB |
| 37 |
0318185 |
SHIFT & THROTTLE PLATE |
| 38 |
0318212 |
SET SCREW, Warm up lever |
| 39 |
0318225 |
MOUNTING BRACKET , Upper half |
| 40 |
414920600 |
Washer For Hose Connection |
| 41 |
0318231 |
DENTENT,Warm up lever |
| 42 |
0318267 |
APPLIQUE |
| 44 |
0319472 |
LEVER, Reverse lock |
| 45 |
0318271 |
KNOB, Lever reserve lock |
| 46 |
0318275 |
SPRING, Detent |
| 47 |
0318276 |
SPRING, Reverse lock |
| 49 |
0318292 |
SCREW, Lever |
| 50 |
0318293 |
CLAMP, Instrument cable |
| 51 |
0318294 |
CLAMP, Instrument cable |
| 54 |
0318319 |
CLAMP CABLE |
| 57 |
0318323 |
WASHER, Screw cover |
| 60 |
0318362 |
ROLLER, Warm up lever |
| 62 |
0307063 |
O RING |
| 63 |
0386947 |
IGNITION SWITCH This part replaces 0385483. |
| 64 |
0386542 |
SHIFT LEVER ASSY This part replaces 0385506. |
| 65 |
0385555 |
THORTLE LEVER ASSY |
| 66 |
0385581 |
KNOB & FRICITON ADJ.SCREW ASSY. |
| 67 |
0385642 |
WARM UP LEVER & OPIN ASSY. |
| 68 |
0385659 |
SWITCH ASSY, Neutral start |
| 69 |
0385698 |
INST CABLE ASSY, Std |
| 69 |
0385700 |
INST CABLE ASSY, Long |
| 74 |
0385701 |
LEVER ARM & FRICTION AD ASSY. |
| 75 |
0385793 |
STYLIND COVER ASSY |
| 76 |
0510978 |
CLAMP, Lead assy |
| 77 |
0554330 |
SCREW, Cam lever |
| 78 |
0580829 |
LEAD ASSY, Ground |
| 79 |
0581096 |
LEAD ASSY, Neutral start |
| 80 |
0581112 |
LEAD ASSY, Ignition switch to horn |
| 81 |
0322489 |
TRANSFER, Throttle friction This part replaces 0318327. |
| 82 |
0900696 |
WASHER |
| 83 |
0318624 |
COVER, Detent |
| 85 |
0324530 |
COVER, Housing This part replaces 0317810. |
| 86 |
0306407 |
LOCCKWASHER,Cover latch |
| 89 |
0322487 |
TRANSFER, Johnson This part replaces 0318325. |
| 90 |
0318326 |
TRANSFER, Choke |
| 91 |
0385959 |
CLAMP & SET SC R.ASSY. |
| 94 |
0385699 |
WARM UP LIN ASSY |
| 200a |
507032615 |
Brake Pads Kit |
| 200b |
507032616 |
Pin & Spring Kit |
| 200c |
507032617 |
Spring Plate |
| 200d |
507032618 |
Spring Clips |
| 210 |
250000971 |
Screw-torx Button Head M8 X 35 |
| 230 |
705601201 |
Banjo Bolt/ Bleeder |
| 240 |
414920600 |
Washer For Hose Connection |
| 250 |
705601190 |
Bleeder Bolt Cap |
| 300 |
507032660 |
Brake Caliper Support |
| 310 |
244006060 |
Socket Screw M10 X 60 |
| 320 |
503192496 |
Washer |
| 420 |
293300221 |
O Ring |
| 430 |
507032711 |
Spacer |
| 500 |
507032656 |
Black, Disc Protector |
| 510 |
207661254 |
Hex. Flange Screw M6 X 12 |
| 520 |
233261466 |
Hex. Flanged Elastic Nut M6 |
| 600 |
507032661 |
Brake Hose |
| 610 |
414108400 |
Open Clamp |
| 615 |
250000742 |
Torx Screw M5 X 14 |
| 616 |
293650257 |
Hose Clamp |
| 620 |
210261040 |
Hex. Flanged Forming Screw M6 X 10 |
| 625 |
293650257 |
Hose Clamp |
| 0385505 |
0175945 |
REMOTE CONTROL ASSY. This part replaces 0385505. |
| 0386057 |
0386057 |
OPTIONAL MOUNT KIT |
