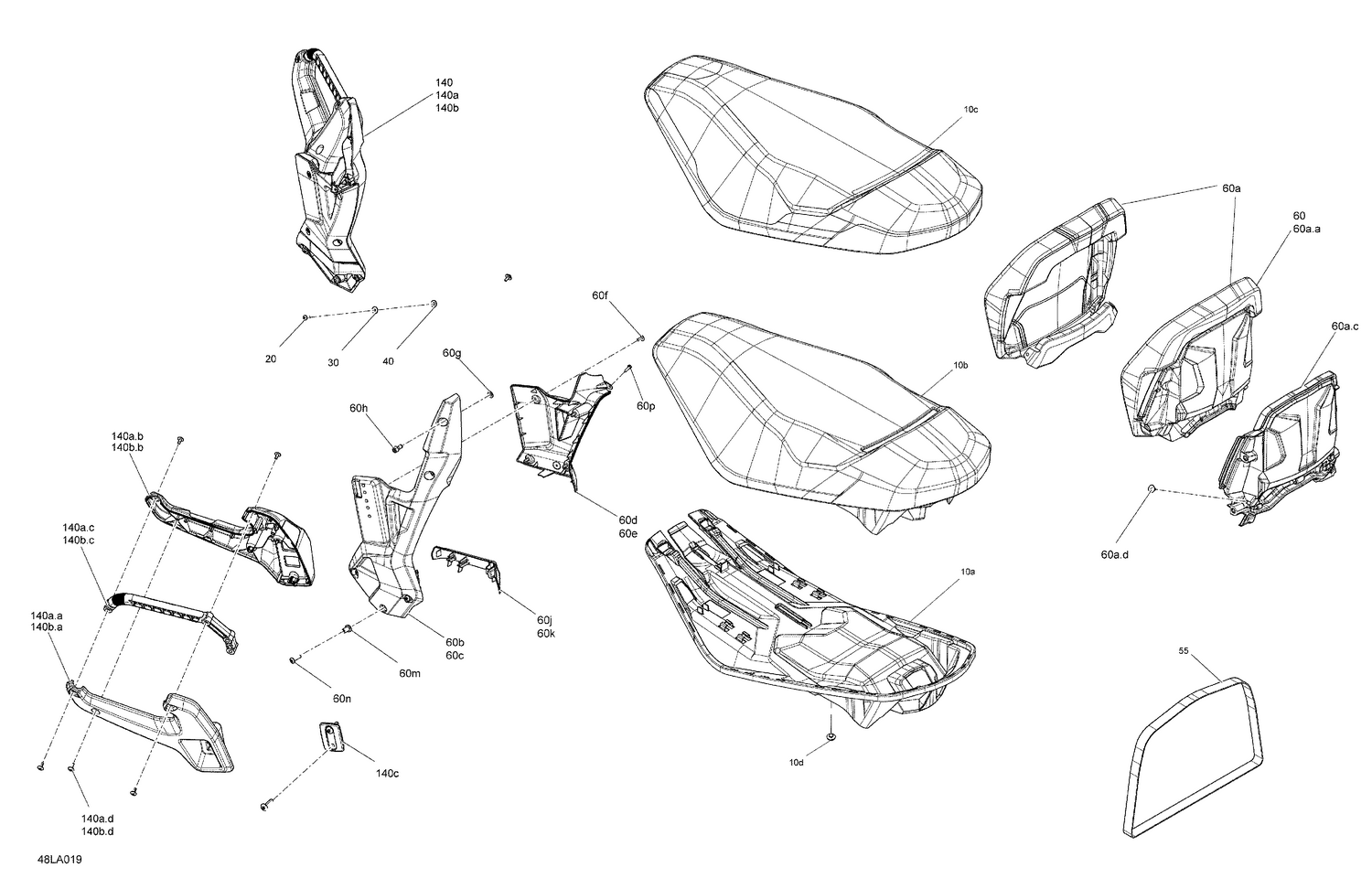

07- Body - Seat
Parts (26)
| Ref | Part Number | Description |
|---|---|---|
| 10a | 510006558 | Seat Base |
| 10b | 510006523 | Seat Foam |
| 10b | 510006559 | Seat Foam |
| 10c | 510007057 | Seat Cover |
| 10c | 510007059 | Seat Cover |
| 10d | 605452114 | Plug |
| 20 | 250000742 | Torx Screw M5 X 14 |
| 30 | 250200140 | Washer |
| 40 | 250200024 | Rubber Washer 5 mm |
| 55 | 510005386 | Seat Belt, Black |
| 60a | 510007063 | Foam And Upholstery Ass'y |
| 60b | 510007208 | LH Backrest Support Ass'y |
| 60c | 510007209 | RH Backrest Support Ass'y |
| 60d | 510006704 | LH Trim |
| 60e | 510006705 | RH Trim |
| 60f | 250000789 | Torx Truss M6X14 |
| 60g | 234080600 | Flat Washer M8, Stainless |
| 60h | 205081654 | Screw-Socket HD.DIN.912 |
| 60j | 510006169 | LH Base Cover |
| 60k | 510006170 | RH Base Cover |
| 60m | 511000822 | Insert |
| 60n | 250001000 | Torx-Truss M/S M6 X 25 |
| 60p | 250000068 | Hex. Tapping Screw #8 X 5/8 |
| 140a | 510006515 | LH Passenger Hand Hold Ass'y |
| 140b | 510006516 | RH Passenger Hand Hold Ass'y |
| 140c | 510006602 | Passenger Handle Trim |
