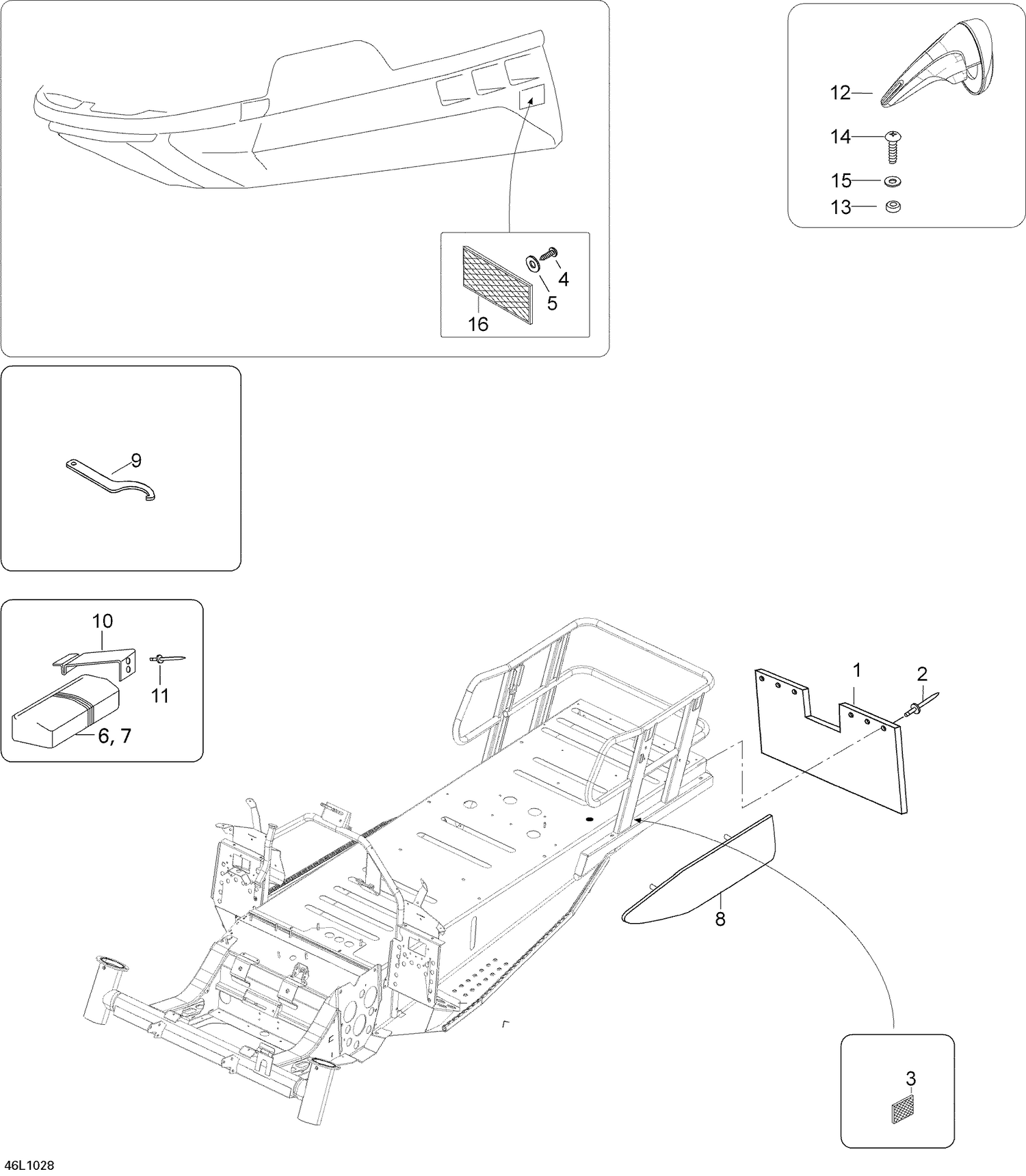

| Ref | Part Number | Description |
|---|
| 1 |
538629 |
Snow guard This part replaces M538629. |
| 2 |
M36036 |
Black, Rivet |
| 3 |
414510100 |
REFLECTOR, RED - Call your local BRP dealership |
| 4 |
M40070 |
Screw |
| 5 |
234451418 |
WASHER-LOCK SERRATED DIN.6798A - Call your local BRP dealership |
| 6 |
605350525 |
TOOL KIT - Call your local BRP dealership |
| 7 |
A50121179000 |
TOOL BOX - Call your local BRP dealership |
| 8 |
605354746 |
LH SIDE SNOW GUARD - Call your local BRP dealership |
| 8 |
605354747 |
RH SIDE SNOW GUARD - Call your local BRP dealership |
| 9 |
529035582 |
ADJUSTMENT WRENCH - Call your local BRP dealership |
| 10 |
M5346728 |
SPRING PLATE - Call your local BRP dealership |
| 11 |
36108 |
Rivet This part replaces M36108. |
| 12 |
517303955 |
Mirror Kit |
| 13 |
250200024 |
Rubber Washer 5 mm |
| 14 |
250000720 |
Torx Screw K50 X 16 This part replaces 250000146. |
| 15 |
250200025 |
Washer M5 |
