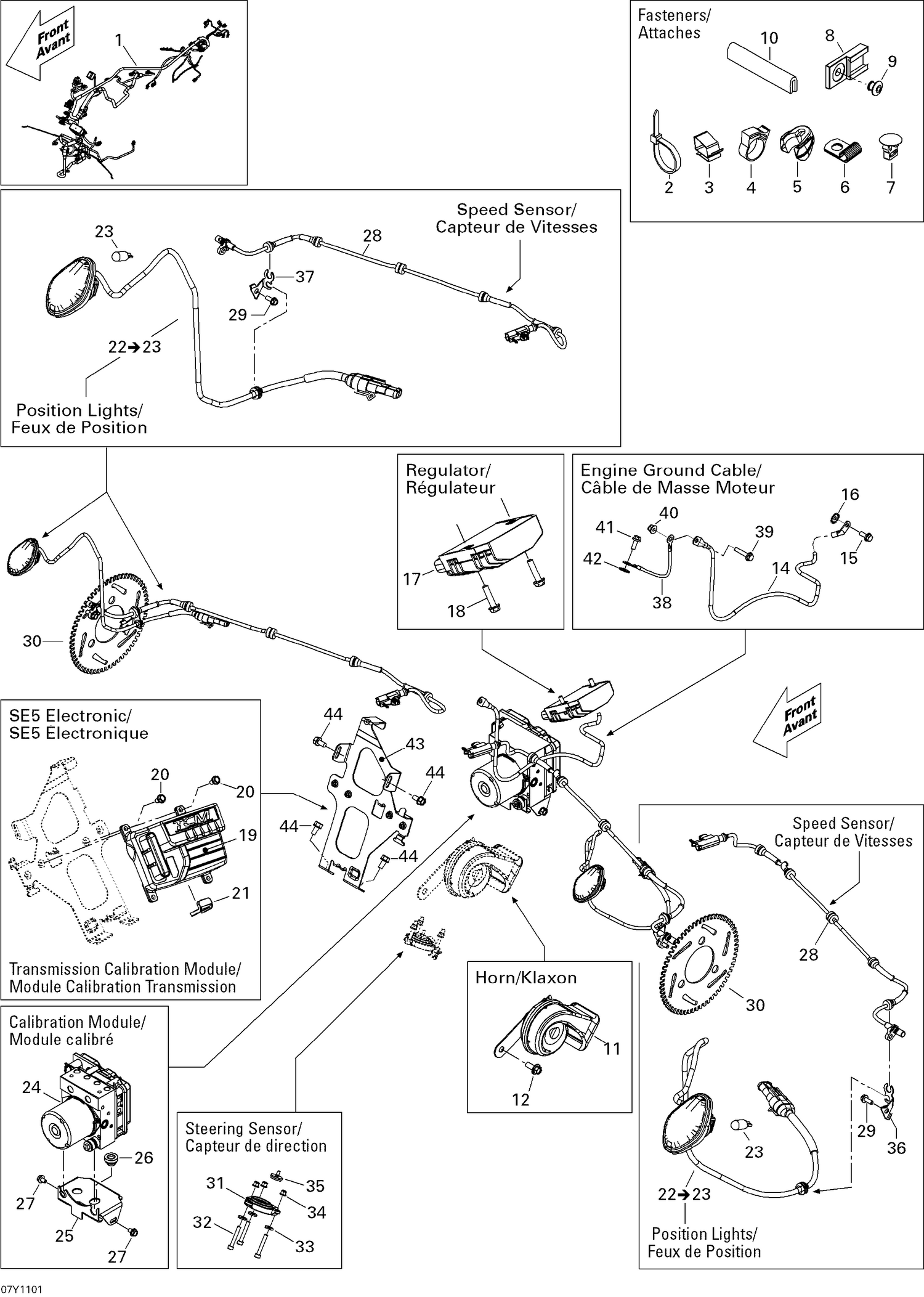

| Ref | Part Number | Description |
|---|
| 2 |
293750008 |
Tie Wrap 368 mm |
| 2 |
414115200 |
Tie-Rap 180 mm |
| 4 |
293650082 |
Clamp |
| 5 |
710001452 |
WIRE BRACKET - Call your local BRP dealership |
| 6 |
415052400 |
Bracket |
| 7 |
293750044 |
Tie Rap Mount |
| 8 |
270000141 |
Clip |
| 9 |
390402400 |
Pop Rivet 3/16" |
| 10 |
219704354 |
Trim 1000Mm Long |
| 11 |
710004229 |
HORN - Call your local BRP dealership This part replaces 710002318. |
| 12 |
207682044 |
Hex. Flange Screw M8 X 20 |
| 14 |
710000177 |
ENGINE GROUND CABLE - Call your local BRP dealership |
| 15 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 16 |
250200041 |
Lock Washer Serrated M6 |
| 17 |
219800252 |
REGULATOR KIT - Call your local BRP dealership |
| 18 |
210262550 |
Hex. Flange Forming Screw M6 X 25 This part replaces 210262580. |
| 19 |
XXX |
Not Available As Spare Parts |
| 20 |
XXX |
Not Available As Spare Parts |
| 21 |
XXX |
Not Available As Spare Parts |
| 23 |
410922994 |
BULB 5W. - Call your local BRP dealership |
| 24 |
219800098 |
Calibration Module |
| 25 |
705600602 |
MODULE BRACKET - Call your local BRP dealership |
| 26 |
710000938 |
STOPPER - Call your local BRP dealership |
| 27 |
210261250 |
Hex. Flange Screw M6 X 12 This part replaces 210261280. |
| 28 |
706200495 |
SPEED SENSOR - Call your local BRP dealership |
| 29 |
210261650 |
Hex. Flange Screw M6 X 16 This part replaces 210261680. |
| 30 |
705600436 |
TONE WHEEL - Call your local BRP dealership |
| 31 |
709400363 |
Steering Position Sensor |
| 32 |
205053588 |
Socket Head Screw M5 X 35 |
| 33 |
234051410 |
Flat Washer M5 |
| 34 |
233251434 |
Flange Elastic Nut M5 This part replaces 233251414. |
| 35 |
709400362 |
ENCODER MAGNET - Call your local BRP dealership |
| 36 |
710002019 |
LH WIRE SUPPORT - Call your local BRP dealership |
| 37 |
710002018 |
RH WIRE SUPPORT - Call your local BRP dealership |
| 38 |
710001165 |
GROUND HARNESS - Call your local BRP dealership |
| 39 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663044. |
| 40 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 41 |
207661644 |
Hex. Flange Screw M6 X 16 |
| 42 |
250200041 |
Lock Washer Serrated M6 |
| 43 |
705202002 |
MODULE SUPPORT - Call your local BRP dealership |
