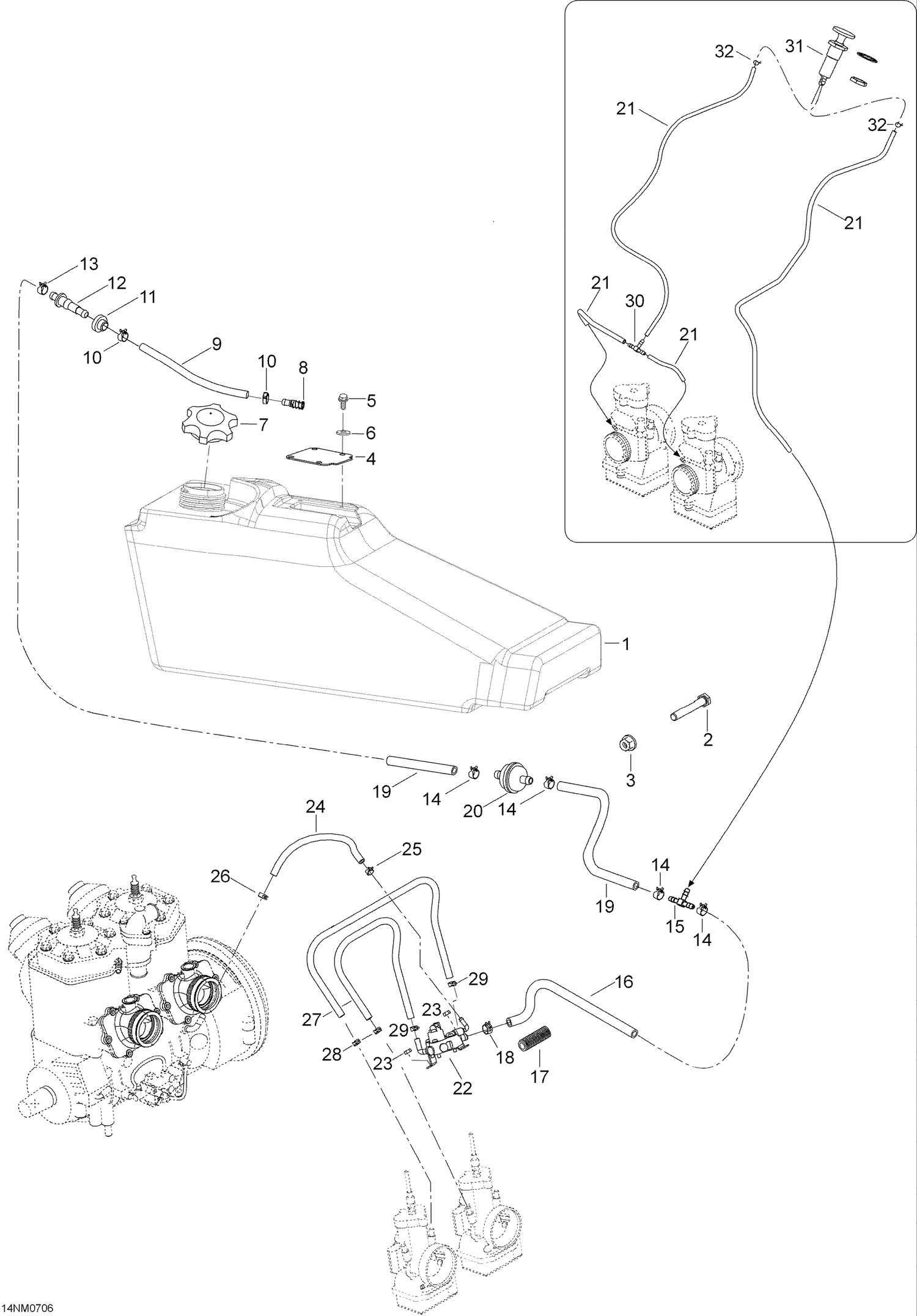

02- Fuel System
Parts (31)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 605153871 | Fuel tank |
| 2 | 40031 | Hex. screw M6 x 25 |
| 3 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 4 | 605353106 | Plate |
| 5 | 605640014 | Screw M5 x 10 |
| 6 | 20002 | Washer A5,3 |
| 7 | 709000059 | FUEL CAP - Call your local BRP dealership |
| 8 | 414872100 | Filter |
| 9 | 605354463 | Hose |
| 10 | 513033010 | Clamp |
| 11 | 707800347 | Grommet This part replaces 570273900. |
| 12 | 414872700 | Fitting, straight |
| 13 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 14 | 414655700 | Clamp |
| 15 | 415119300 | T-fitting |
| 16 | 513033031 | FORMED HOSE - Call your local BRP dealership |
| 17 | 27127 | Tubing |
| 18 | 513032979 | UNIVERSAL SPRING CLAMP - Call your local BRP dealership |
| 19 | 513033022 | HOSE 8 MM, METER - Call your local BRP dealership |
| 20 | 414536500 | Filter |
| 21 | 39035 | Hose |
| 22 | 403901810 | FUEL PUMP - Call your local BRP dealership |
| 23 | 233261414 | Hex. Flange Elastic Nut M6 x 1.0 This part replaces 33200. |
| 24 | 513033035 | HOSE - Call your local BRP dealership |
| 25 | 414415200 | Clamp |
| 26 | 513033029 | Clamp |
| 27 | 39004 | Hose |
| 28 | 414554800 | Clamp |
| 29 | 414420700 | Universal Spring Clamp |
| 30 | 21062 | T-fitting |
| 31 | 415060500 | Primer |
