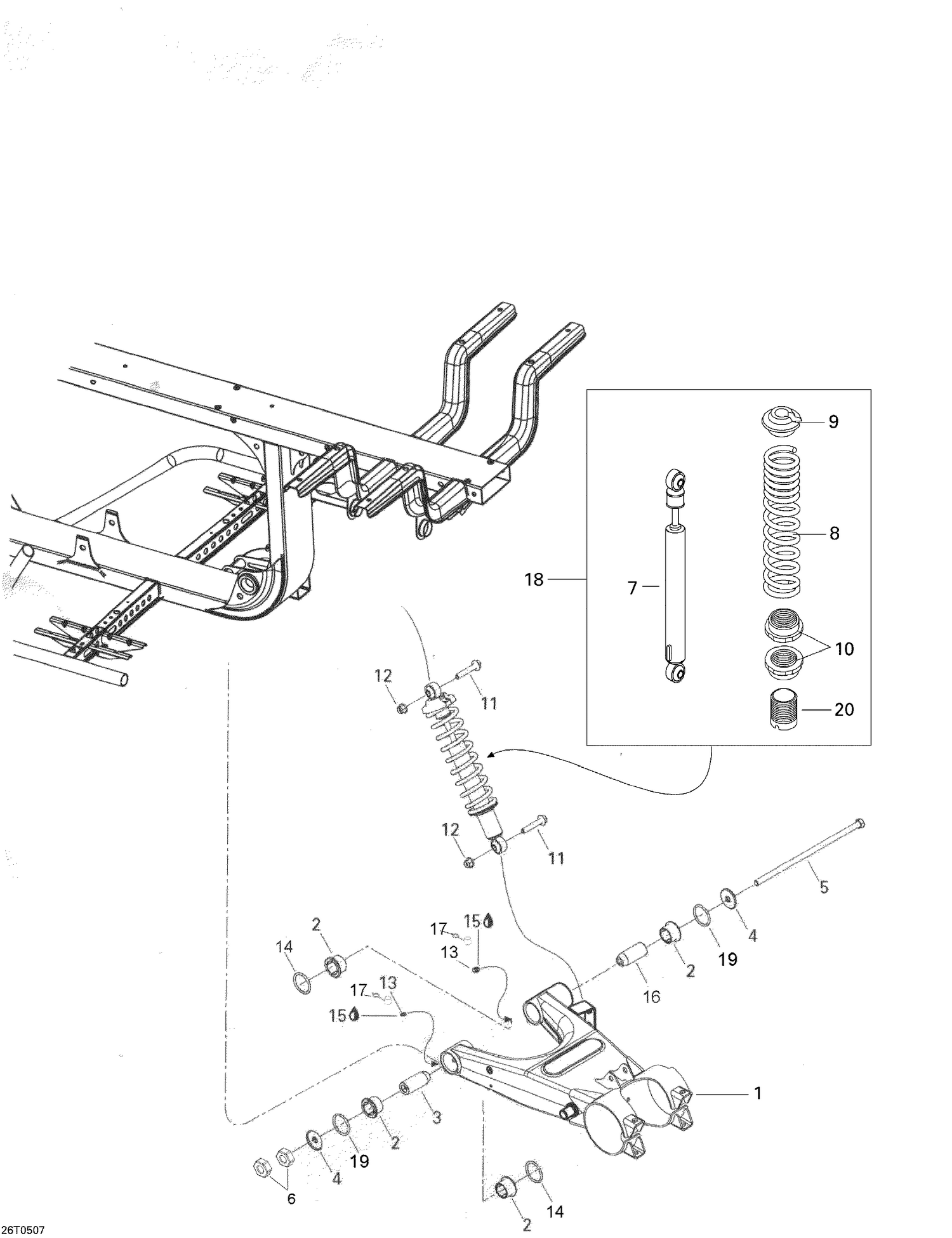

08- Rear Suspension
Parts (19)
| Ref | Part Number | Description |
|---|---|---|
| 1 | A52100179001 | Swing Arm |
| 2 | A52103179000 | CUSHION - Call your local BRP dealership |
| 3 | A52113179000 | INNER BUSHING - Call your local BRP dealership |
| 4 | A904511245050 | Thrust Washer |
| 5 | A920001232017 | Hex. Screw M12 X 320 |
| 6 | 420242515 | HEX. NUT M12 - Call your local BRP dealership |
| 7 | A52404179000 | Rear Shock |
| 8 | A52405179000 | Rear Spring |
| 9 | A51402179000 | Spring Stopper |
| 10 | A51421179000 | Spring Seat |
| 11 | A9600010055Z | SCREW-HEX.FLANGE - Call your local BRP dealership |
| 12 | A9405010000L | Hex. Flange Nut |
| 13 | 408200700 | Grease Fitting |
| 14 | 293300087 | O-RING - Call your local BRP dealership |
| 15 | 293550010 | Synthetic Grease, 400 G |
| 16 | A52119179000 | Inner Bushing |
| 17 | A9650206000 | GREASE VALVE CAP - Call your local BRP dealership |
| 18 | Not | Available As Spare Part - Rear Shock Ass'y |
| 19 | 293300089 | O-RING - Call your local BRP dealership This part replaces A91335108000. |
