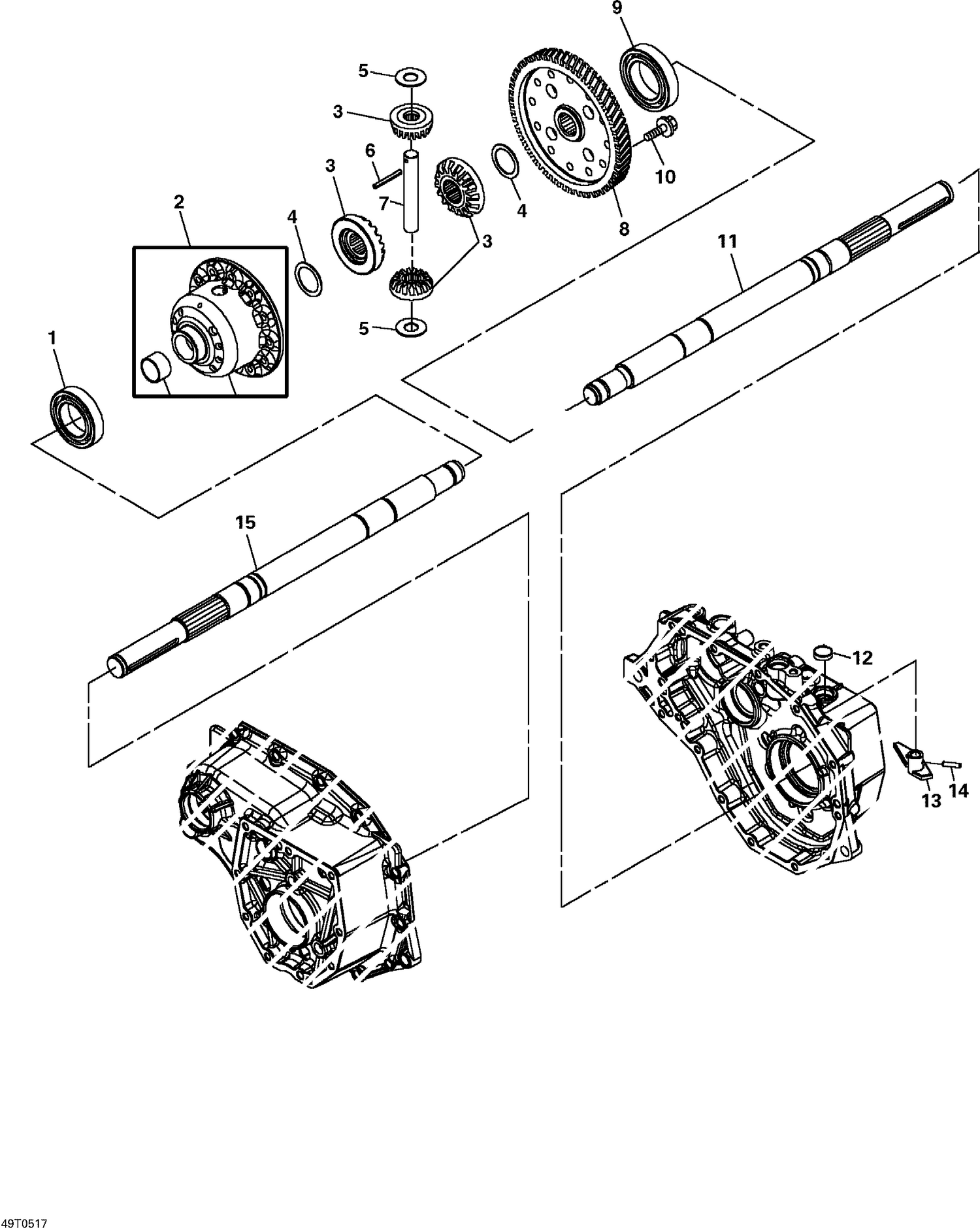

05- Differential Gear
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | DCH14592 | Ball Bearing |
| 2 | DAM881344 | Differentiel Compartement Case |
| 3 | DAM881477 | Differentiel Gear Kit |
| 4 | DM810544 | Differentiel Liner |
| 5 | DM810546 | Différentiel Pinion Liner |
| 6 | DCH12300 | Pin |
| 7 | DM810545 | Differentiel Pinion Shaft |
| 8 | DM810556 | Final Gear 64Th |
| 9 | DCH14581 | Ball Bearing |
| 10 | D19M7867 | Hex. Flange Bolt M8 X 25 |
| 11 | DM810558 | RH Axle Shaft |
| 12 | DCH18638 | Sealing Cap |
| 13 | DAM881345 | Arm |
| 14 | DCH11496 | Pin |
