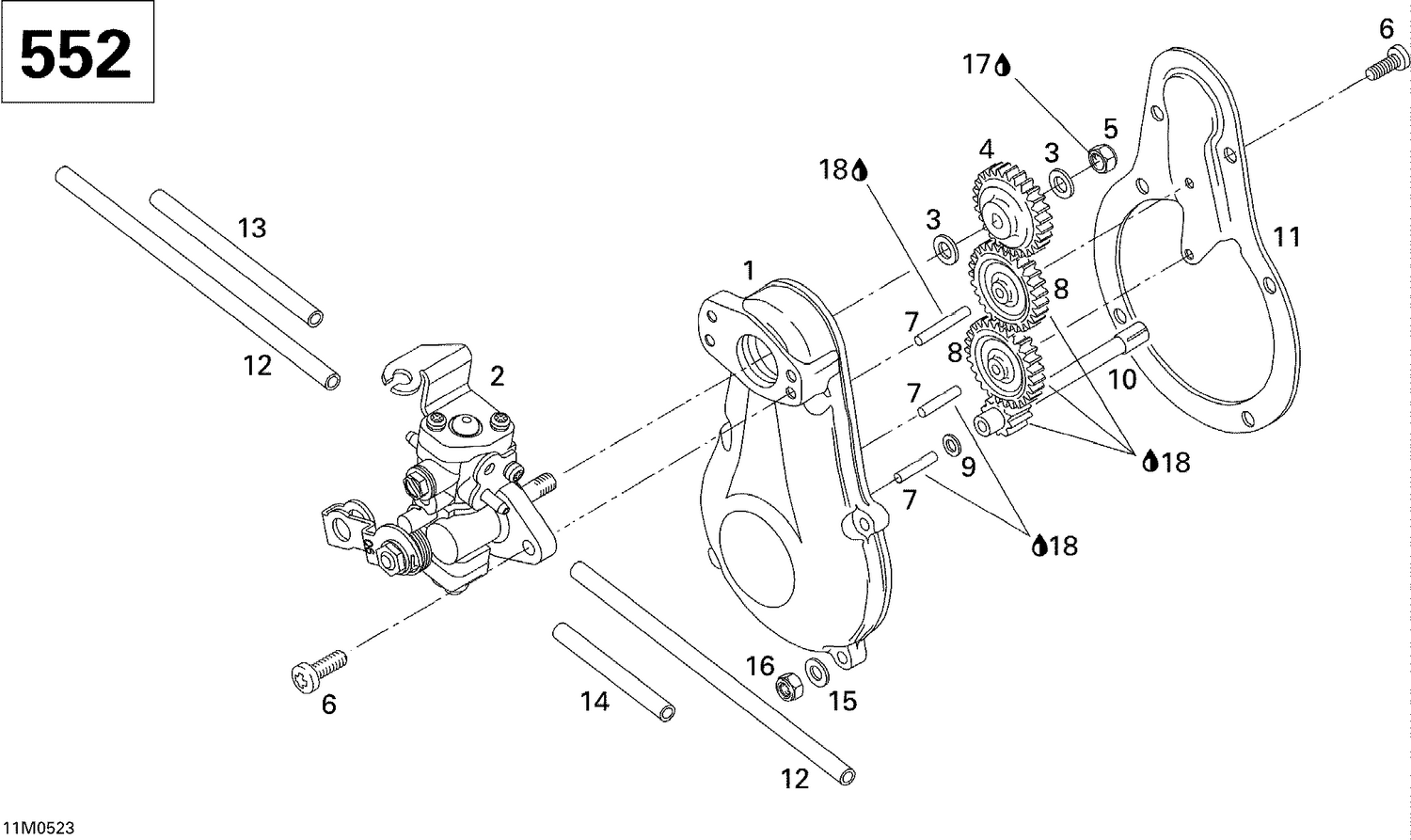

02- Oil Pump
Parts (17)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 420810110 | FLANGED PUMP - Call your local BRP dealership |
| 2 | 420889072 | Oil Pump Ass'y |
| 3 | 420927945 | FLAT WASHER - Call your local BRP dealership |
| 4 | 420935930 | Oil Pump Gear, 27 Teeth |
| 5 | 232561414 | Elastic Stop Nut M6 |
| 6 | 420841971 | Screw |
| 7 | 420232420 | Needle Pin |
| 8 | 420834210 | OIL PUMP GEAR - Call your local BRP dealership |
| 9 | 420244072 | Flat Washer 4 This part replaces 420244073. |
| 10 | 420935970 | Gear, 9 Teeth |
| 11 | 420810122 | FLANGED PUMP - Call your local BRP dealership |
| 12 | 219704404 | Oil Hose 1500Mm Long |
| 13 | 219704360 | Hose 6 Mm 15000Mm Long |
| 14 | 219704360 | Hose 6 Mm 15000Mm Long |
| 15 | 420827800 | WASHER - Call your local BRP dealership |
| 16 | 420942025 | NUT M5 - Call your local BRP dealership |
| 17 | 293800060 | Loctite 243, 10 ml |
