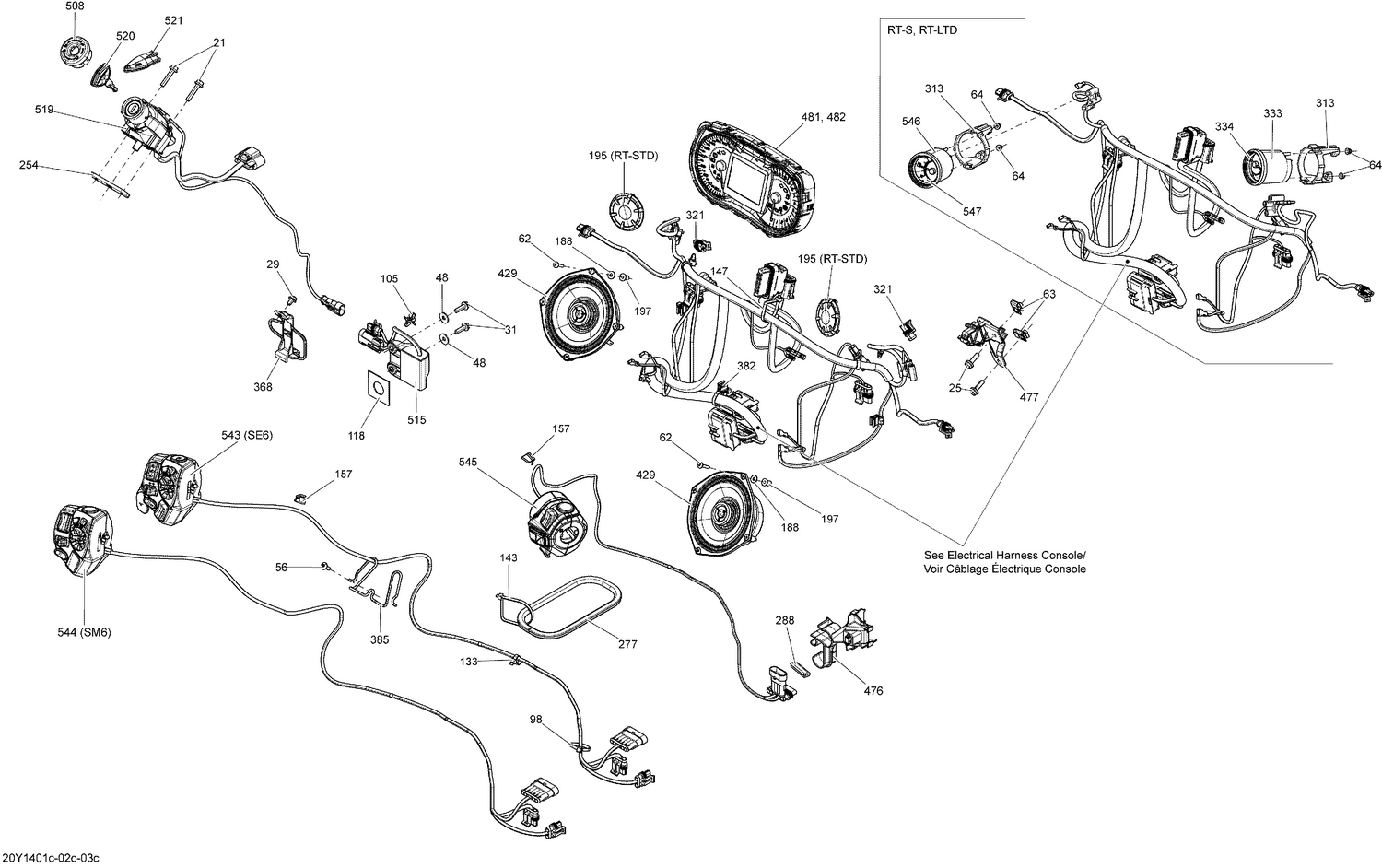

10- Electrical System Front View_20Y1403c
Parts (38)
| Ref | Part Number | Description |
|---|---|---|
| 21 | 207563044 | Hex. Flange Screw M6 X 30, Scotch Grip |
| 25 | 207662044 | Hex. Flange Screw M6 X 20 |
| 29 | 210261050 | Hex. Forming Screw M6 X 10 This part replaces 210261080. |
| 31 | 210262050 | Hexagonal Head Screw This part replaces 210262080. |
| 48 | 234062410 | Flat Washer 6 mm |
| 56 | 250000742 | Torx Screw M5 X 14 This part replaces 250000145. |
| 62 | 250000405 | TORX SCREW M4 X 20 - Call your local BRP dealership |
| 63 | 250100198 | Panel Nut M6 X 1.0 This part replaces 250100113. |
| 64 | 250100142 | Hex. Serrated Flange Nut |
| 98 | 293750008 | Tie Wrap 368 mm |
| 105 | 293750009 | Tie-Rap 173 mm |
| 118 | 293830091 | Rubber Bumper |
| 133 | 414115200 | Tie-Rap 180 mm |
| 143 | 414115200 | Tie-Rap 180 mm |
| 147 | 414115200 | Tie-Rap 180 mm |
| 157 | 414227300 | Clip |
| 188 | 517225900 | Flat Washer |
| 195 | XXX | Not Available As Spare Parts |
| 197 | 705003635 | Well Rubber Nut M4 X 0.7 |
| 254 | 710001365 | Switch Support |
| 277 | 219704354 | Trim 1000Mm Long |
| 288 | 219704354 | Trim 1000Mm Long |
| 313 | 710002067 | CASE HOLDER - Call your local BRP dealership |
| 321 | XXX | Not Available As Spare Parts |
| 334 | 219800181 | LED BULB - Call your local BRP dealership |
| 368 | 710002840 | Front Support |
| 382 | 710002899 | Clip Tie-Rap |
| 385 | 710003017 | Grommet Spindle |
| 429 | 710003233 | Front Speaker |
| 476 | 710003437 | RH Connector Support |
| 477 | 710003458 | LH Connector Support |
| 482 | 415129349 | Lens |
| 508 | 710003594 | Switch Cover |
| 515 | 710004916 | Dess Module This part replaces 710004190. |
| 520 | 710004408 | Ignition Key Kit This part replaces 710003596. |
| 521 | 710003597 | Key Sleeve |
| 544 | XXX | Not Available As Spare Parts |
| 545 | 710003921 | Switch Housing |
