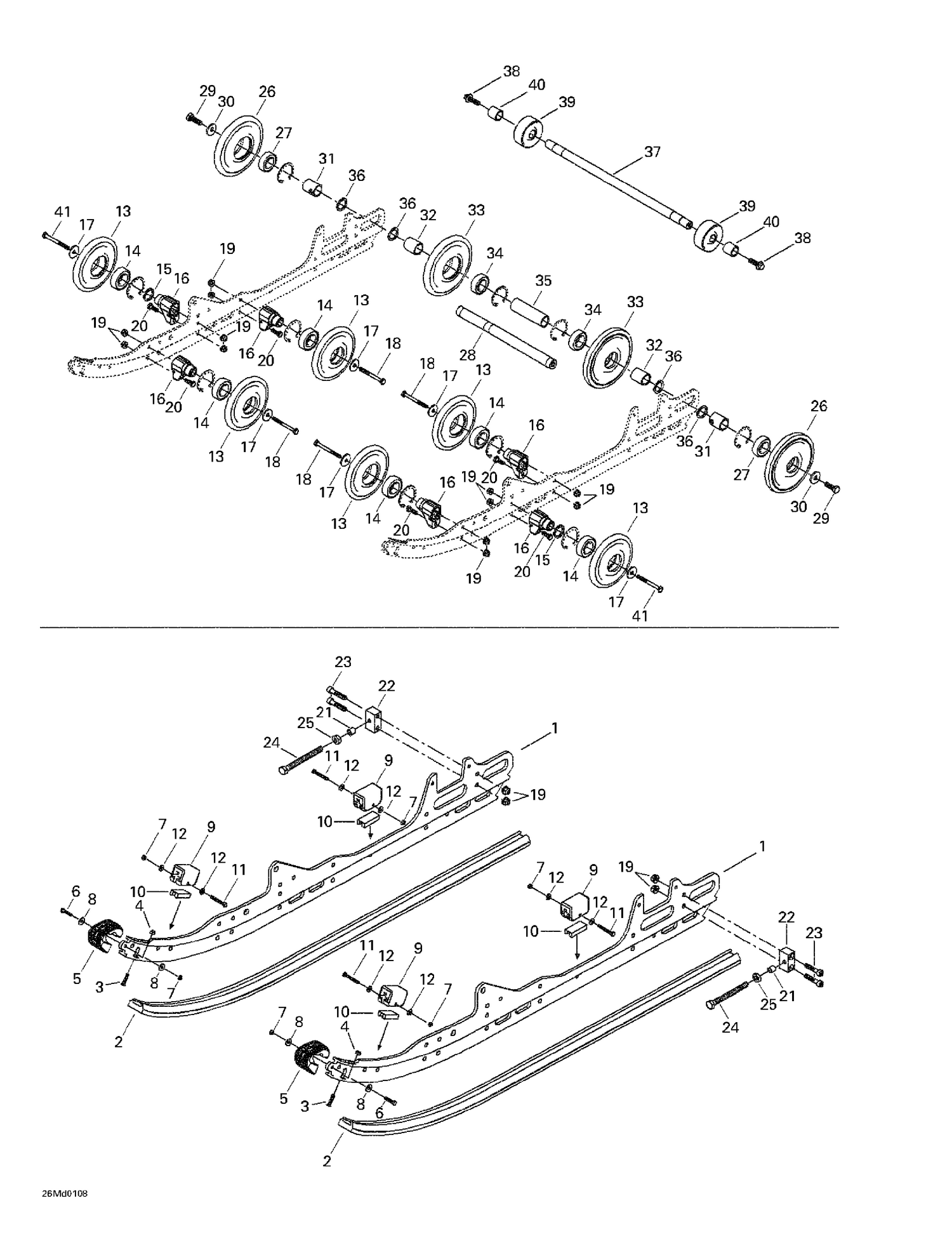

08- Rear Suspension
Parts (37)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503189856 | Runner |
| 2 | 560316300 | Shoe |
| 3 | 208562560 | Phillips Screw M6 X 25 |
| 4 | 232561414 | Elastic Stop Nut M6 |
| 5 | 572075400 | RUNNER PROTECTOR - Call your local BRP dealership |
| 6 | 207152544 | HEX. SCREW M5 X 25 - Call your local BRP dealership |
| 7 | 232551414 | Elastic Stop Nut M5 |
| 8 | 391301600 | Washer |
| 9 | 570063000 | Rubber Stopper |
| 10 | 572084800 | Reinforcement Stopper |
| 11 | 207054044 | HEX. SCREW M5 X 40 - Call your local BRP dealership |
| 12 | 250200081 | FLAT WASHER - Call your local BRP dealership This part replaces 391301700. |
| 14 | 293350115 | Ball Bearing This part replaces 405404500. |
| 15 | 503173700 | WASHER - Call your local BRP dealership |
| 16 | 503190389 | SUPPORT - Call your local BRP dealership This part replaces 503174600. |
| 17 | 503183100 | Washer |
| 18 | 207088044 | Hex. Screw M8 X 80 |
| 19 | 233281414 | Hex. Flange Elastic Nut M8 |
| 20 | 207182544 | Hex. Screw M8 X 25 |
| 21 | 503168500 | TENSIONER SPACER - Call your local BRP dealership |
| 22 | 503189211 | Tensioner |
| 23 | 205084044 | Socket Head Screw M8 X 1.25 X 40 |
| 24 | 230100044 | HEX. SCREW M10 X 100 - Call your local BRP dealership |
| 25 | 232006414 | Hex. Nut M10 X 1.5 |
| 27 | 293350115 | Ball Bearing This part replaces 405404500. |
| 28 | 503167900 | Rear Axle |
| 29 | 250000019 | Hex. Screw With Nylon |
| 30 | 503183300 | Washer |
| 31 | 503189809 | Outer Spacer This part replaces 503189161. |
| 32 | 503182900 | Inner Spacer |
| 34 | 293350115 | Ball Bearing This part replaces 405404500. |
| 35 | 503156000 | Center Spacer |
| 36 | 503180400 | Washer |
| 37 | 503189733 | Shaft |
| 38 | 207582544 | Hex. Flange Screw M8 X 25, Scotch Grip |
| 39 | 503189514 | Track Protector |
| 40 | 503189254 | Spacer |
