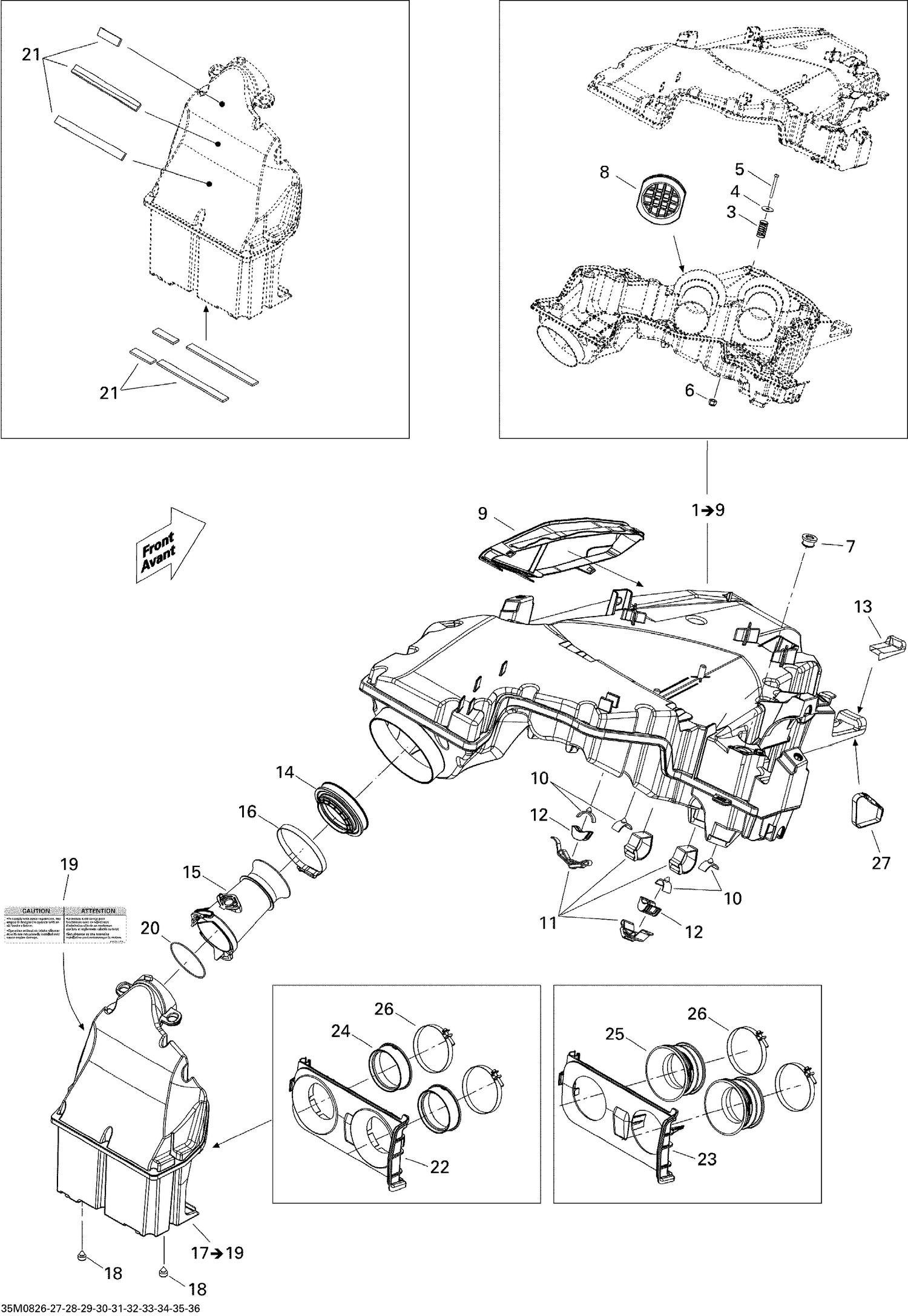

02- Air Intake System
Parts (23)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 508000576 | Spring |
| 4 | 224060201 | Flat Washer |
| 5 | 205444086 | Socket Head Screw M4 X 40 |
| 6 | 232541414 | Elastic Stop Nut M4 |
| 7 | 508000574 | Grommet |
| 8 | XXX | Not Available As Spare Parts |
| 9 | 508000568 | Air Intake Filter |
| 10 | 508000537 | Stopper |
| 11 | 508000820 | Velcro Strip This part replaces 508000532. |
| 12 | 508000572 | Bumper |
| 13 | 508000581 | REFLECTIVE SHEET - Call your local BRP dealership |
| 14 | 508000567 | Boot |
| 15 | 508000662 | Flute This part replaces 508000542. |
| 16 | 514052924 | Norma Clamp |
| 18 | 293830005 | Rubber Bumper |
| 19 | 516003371 | CAUTION DECAL, AIR INTAKE - Call your local BRP dealership |
| 20 | 293300115 | O-Ring |
| 21 | 219704476 | Gasket, Neoprene 2000Mm Long This part replaces 219704372. |
| 22 | 508000500 | Plate Adapter |
| 23 | XXX | Not Available As Spare Parts |
| 24 | 508000501 | Air Intake Adapter |
| 25 | XXX | Not Available As Spare Parts |
| 26 | 508000346 | Gemi Clamp |
