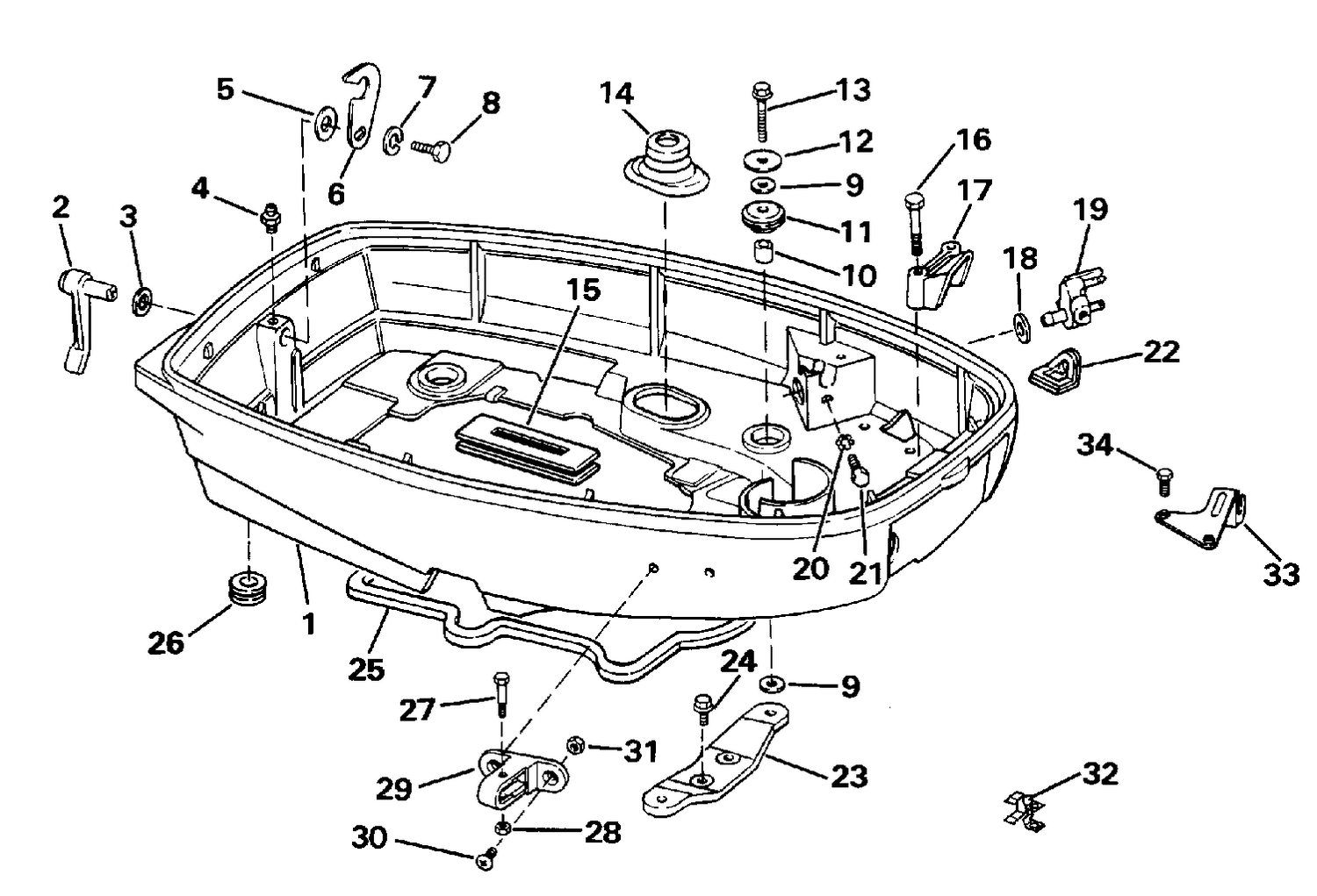

| Ref | Part Number | Description |
|---|
| 1 |
0433392 |
ENGINE COVER, Lower This part replaces 0432432. |
| 9 |
0329241 |
RONDELLE |
| 10 |
0302406 |
SLEEVE |
| 11 |
0316354 |
ENGINE COVER SUPPORT GROMMET |
| 12 |
0203622 |
WASHER |
| 13 |
0329240 |
SCREW |
| 14 |
0304019 |
CROMMET, CONTROL SHAFT |
| 15 |
0325327 |
GROMMET, Actuator cam |
| 16 |
0329110 |
VIS, boîtier d'échappement vers bloc cylindres-carter This part replaces 0319358. |
| 17 |
0325972 |
COLLIER, câbles électriques |
| 23 |
0325868 |
BRACKET, Cove to exh. hsg., front |
| 25 |
0320158 |
SEAL, Housing to cover |
| 26 |
0334761 |
GROMMET |
| 27 |
0332638 |
VIS, ancrage de câble de commande de sens de marche |
| 29 |
0332637 |
BLOC, ancrage |
| 33 |
0331460 |
SUPPORT DE VERROUILLAGE |
