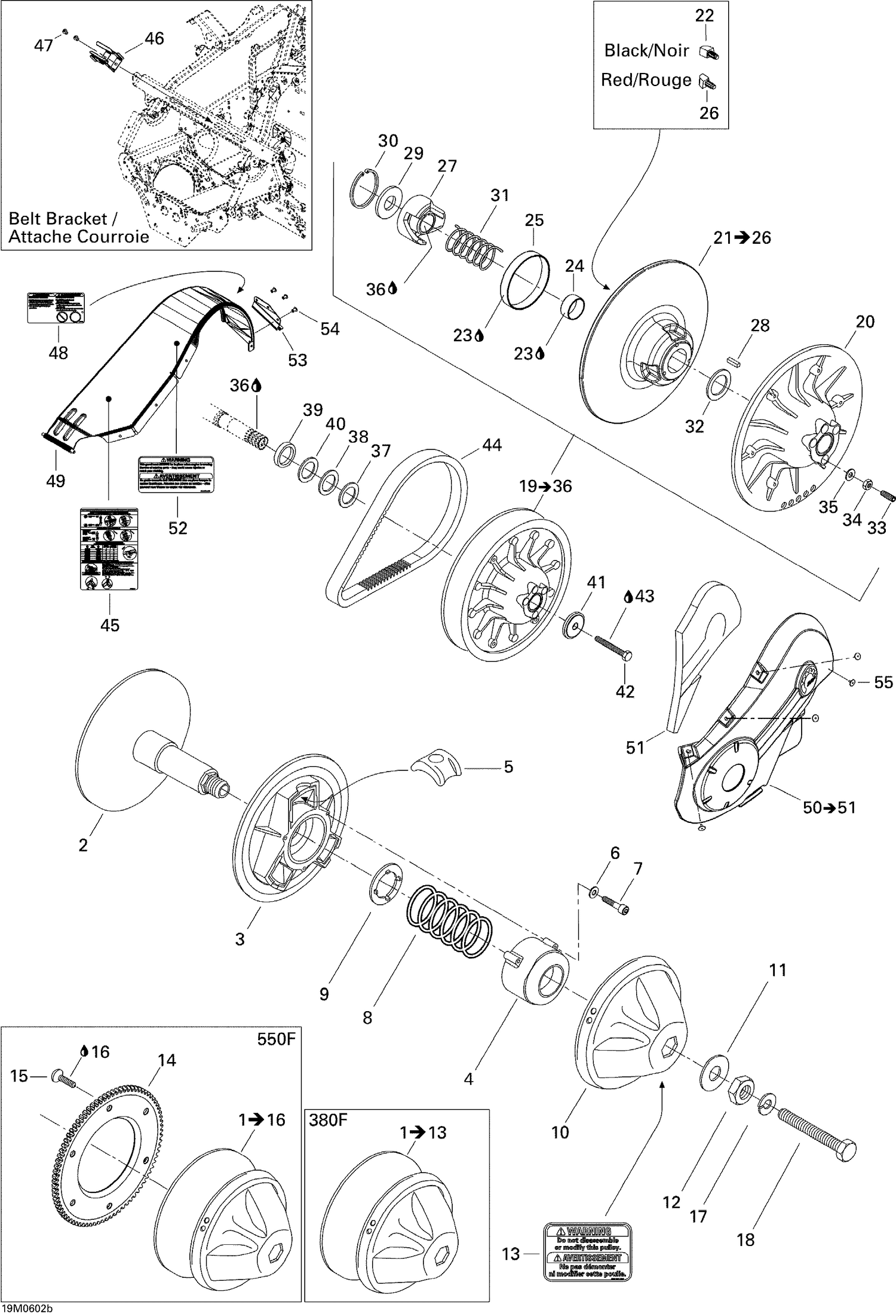

05- Pulley System MX Z 380F
Parts (47)
| Ref | Part Number | Description |
|---|---|---|
| 3 | 417126692 | SLIDING FLANGE - Call your local BRP dealership |
| 4 | 415128602 | SPRING COVER - Call your local BRP dealership |
| 6 | 420245370 | WASHER - Call your local BRP dealership |
| 7 | 415128606 | SOCKET HEAD SCREW M6 X 35 - Call your local BRP dealership |
| 9 | 417126694 | SPRING SEAT - Call your local BRP dealership |
| 10 | 415128609 | Cap |
| 11 | 415128610 | WASHER - Call your local BRP dealership |
| 12 | 417118300 | NUT - Call your local BRP dealership |
| 13 | 516001726 | Security Label |
| 14 | XXX | Not Available As Spare Parts |
| 15 | XXX | Not Available As Spare Parts |
| 16 | XXX | Not Available As Spare Parts |
| 17 | 392002800 | WASHER-LOCK HELICAL SPRING - Call your local BRP dealership |
| 18 | 417113800 | BOLT - Call your local BRP dealership |
| 20 | 417126663 | Fixed Flange |
| 22 | 417126538 | Slider Shoe, Front |
| 23 | 413703100 | Loctite 609, 10 ml |
| 24 | 417126515 | CUSHION - Call your local BRP dealership |
| 25 | 417126562 | Bushing |
| 26 | 417126539 | SLIDER SHOE, REAR - Call your local BRP dealership |
| 27 | 417126715 | Cam 44° |
| 28 | 414820800 | Key |
| 29 | 417126555 | Washer |
| 30 | 371903100 | CIRCLIP - Call your local BRP dealership |
| 31 | 504152070 | RELEASE SPRING, WHITE - Call your local BRP dealership |
| 32 | 504141900 | Thrust Washer |
| 33 | 206263044 | Socket Set Screw M6 X 30 |
| 34 | 232061414 | Hex. Nut M6 |
| 35 | 420245370 | WASHER - Call your local BRP dealership |
| 36 | 219704461 | LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership |
| 37 | 417300252 | Spacer |
| 38 | 417300265 | Spacer |
| 39 | 504149100 | Spacer |
| 40 | 504112000 | Shim |
| 41 | 517302322 | Strength Washer |
| 42 | 207087544 | HEX. SCREW M8 X 75 - Call your local BRP dealership |
| 43 | 293800060 | Loctite 243, 10 ml |
| 44 | 415060600 | Drive Belt |
| 45 | 516002616 | DECAL, SUSPENSION ADJUSTMENT - Call your local BRP dealership |
| 46 | 517281905 | Bracket |
| 47 | 390402200 | Pop Rivet 3/16" |
| 48 | 516002674 | EMERGENCY STARTING LABEL - Call your local BRP dealership |
| 49 | 417300269 | BELT GUARD - Call your local BRP dealership |
| 51 | 417300246 | Foam |
| 52 | 516002670 | WARNING DECAL, SECURITY BELT GUARD - Call your local BRP dealership |
| 53 | 417300216 | BELT GUARD BRACKET - Call your local BRP dealership |
| 54 | 390909200 | Avex Rivet |
