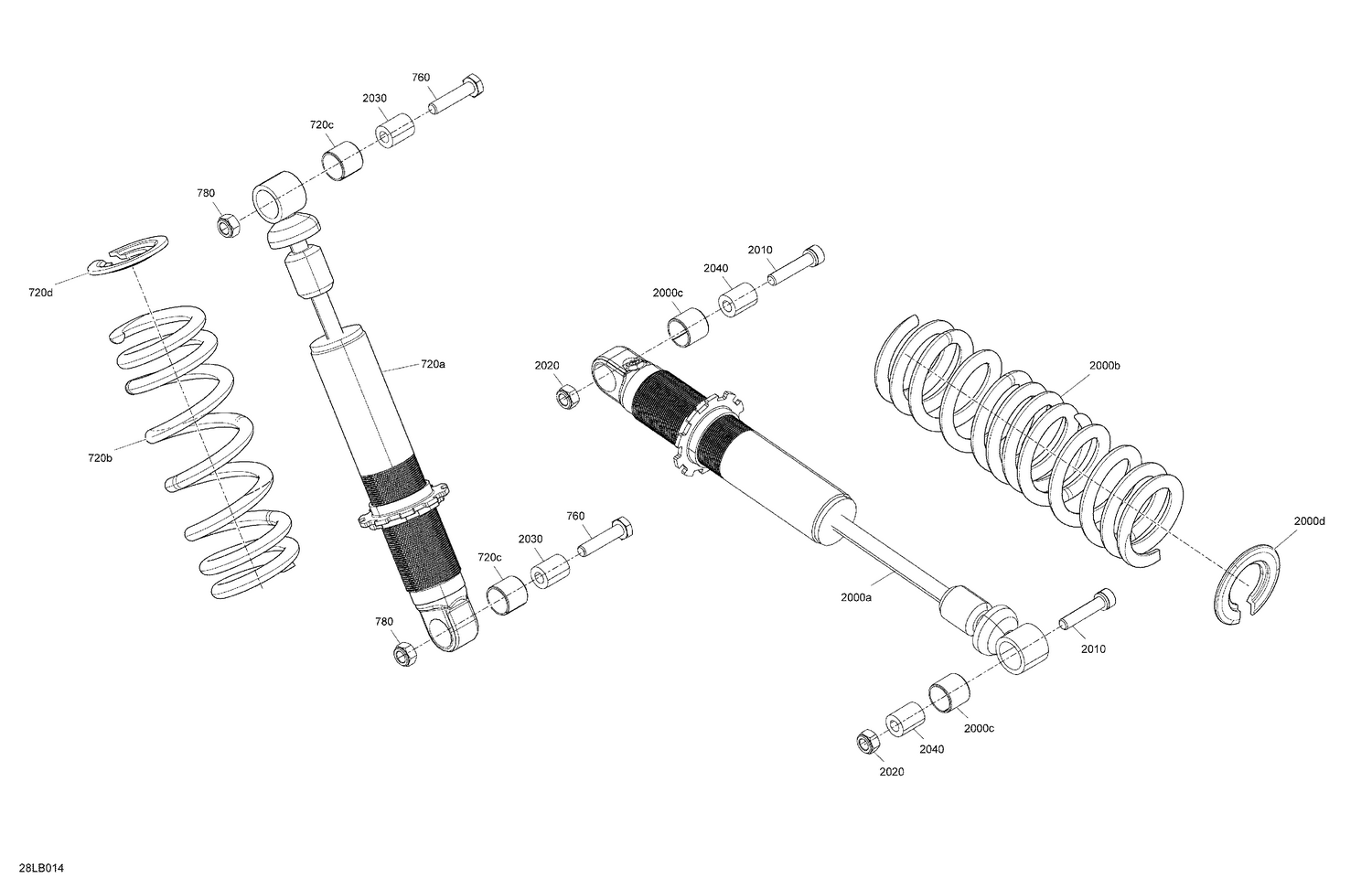

05- Suspension - Rear Shocks
Parts (13)
| Ref | Part Number | Description |
|---|---|---|
| 720a | 503195128 | Shock |
| 720b | 503194211 | Spring |
| 720c | 503195134 | Glide Bearing |
| 720d | 230076 | Spring Seat |
| 760 | 207004544 | Hex. Screw M10 X 45 |
| 780 | 232500416 | Elastic Stop Nut M10 |
| 2000a | 503195130 | Shock |
| 2000b | 503195209 | Black, Spring 280 MM-65 N/MM |
| 2000c | 503195134 | Glide Bearing |
| 2000d | 605354631 | Spring Lock |
| 2010 | 40134 | Screw Socket HD.DIN 912 |
| 2020 | 232500416 | Elastic Stop Nut M10 |
| 2030 | 5446652 | Bushing |
