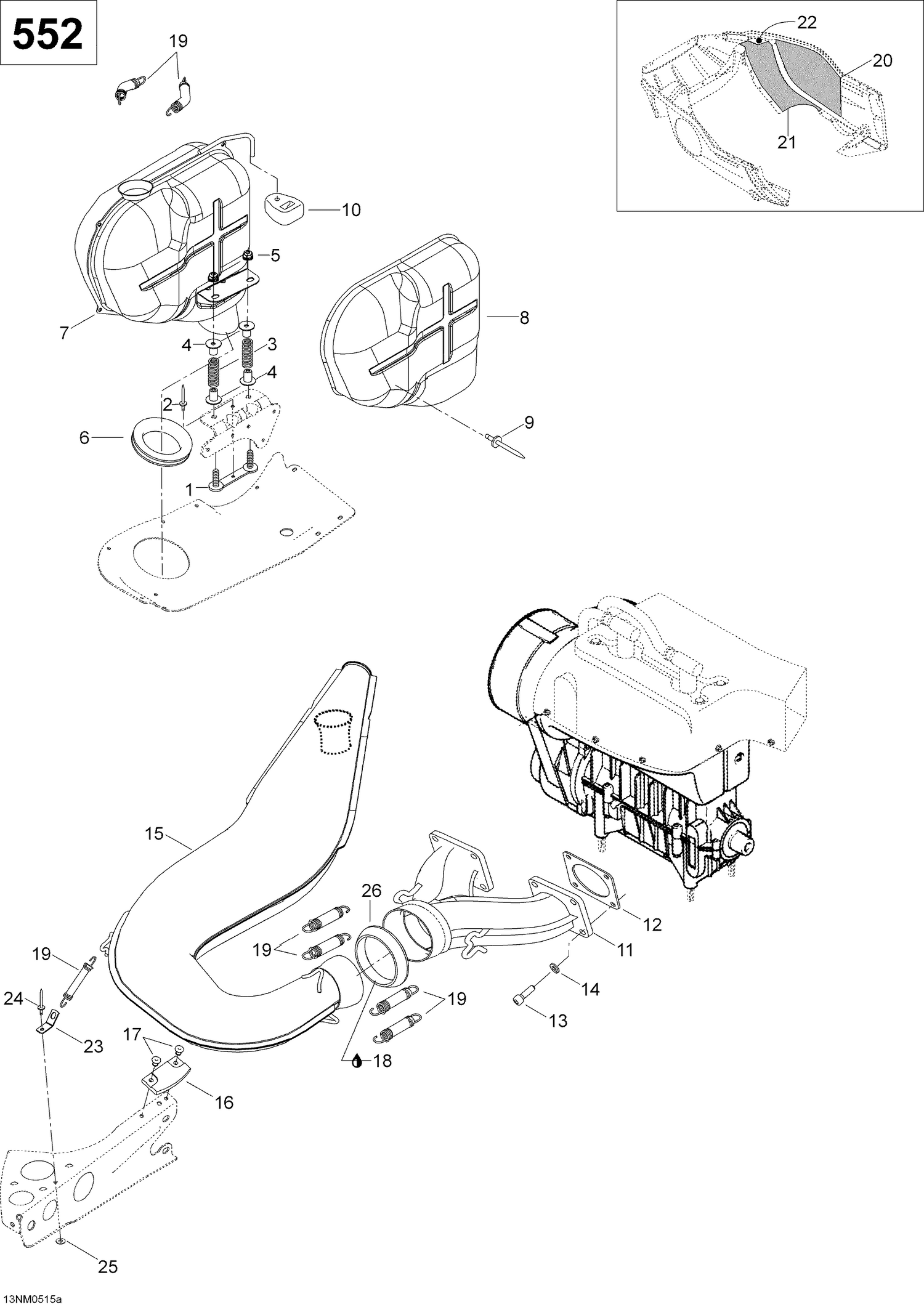

| Ref | Part Number | Description |
|---|
| 1 |
5447628 |
Bracket |
| 2 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 3 |
414913700 |
SPRING - Call your local BRP dealership |
| 4 |
514053343 |
GUIDE - Call your local BRP dealership |
| 5 |
33029 |
Elastic stop nut M8 |
| 6 |
570039000 |
EXHAUST GROMMET - Call your local BRP dealership |
| 8 |
514053389 |
L.H. heat shield |
| 9 |
390910000 |
Rivet |
| 10 |
514052704 |
RUBBER BUMPER - Call your local BRP dealership |
| 11 |
420673065 |
Branch-Y |
| 12 |
420831849 |
Gasket |
| 13 |
40135 |
Allen sc. M8 x 30 DIN912m8.8Zne(1=10pcs) - Call your local BRP dealership |
| 14 |
20014 |
Lock washer A8 |
| 15 |
605150552 |
Tuned pipe |
| 16 |
570044100 |
Rubber pad |
| 17 |
36037 |
Rivet |
| 18 |
293800090 |
Loctite, 80ml |
| 19 |
415107100 |
Spring |
| 20 |
514053363 |
Isolering |
| 21 |
514052718 |
Isolering |
| 22 |
514053390 |
REFLECTIVE SHEET - Call your local BRP dealership |
| 23 |
5447086 |
Spring bracket |
| 24 |
36489 |
Rivet TSPD68 4.8x12 (1 PAC <=> 50 PC) - Call your local BRP dealership |
| 25 |
20008 |
Washer A5,3 |
