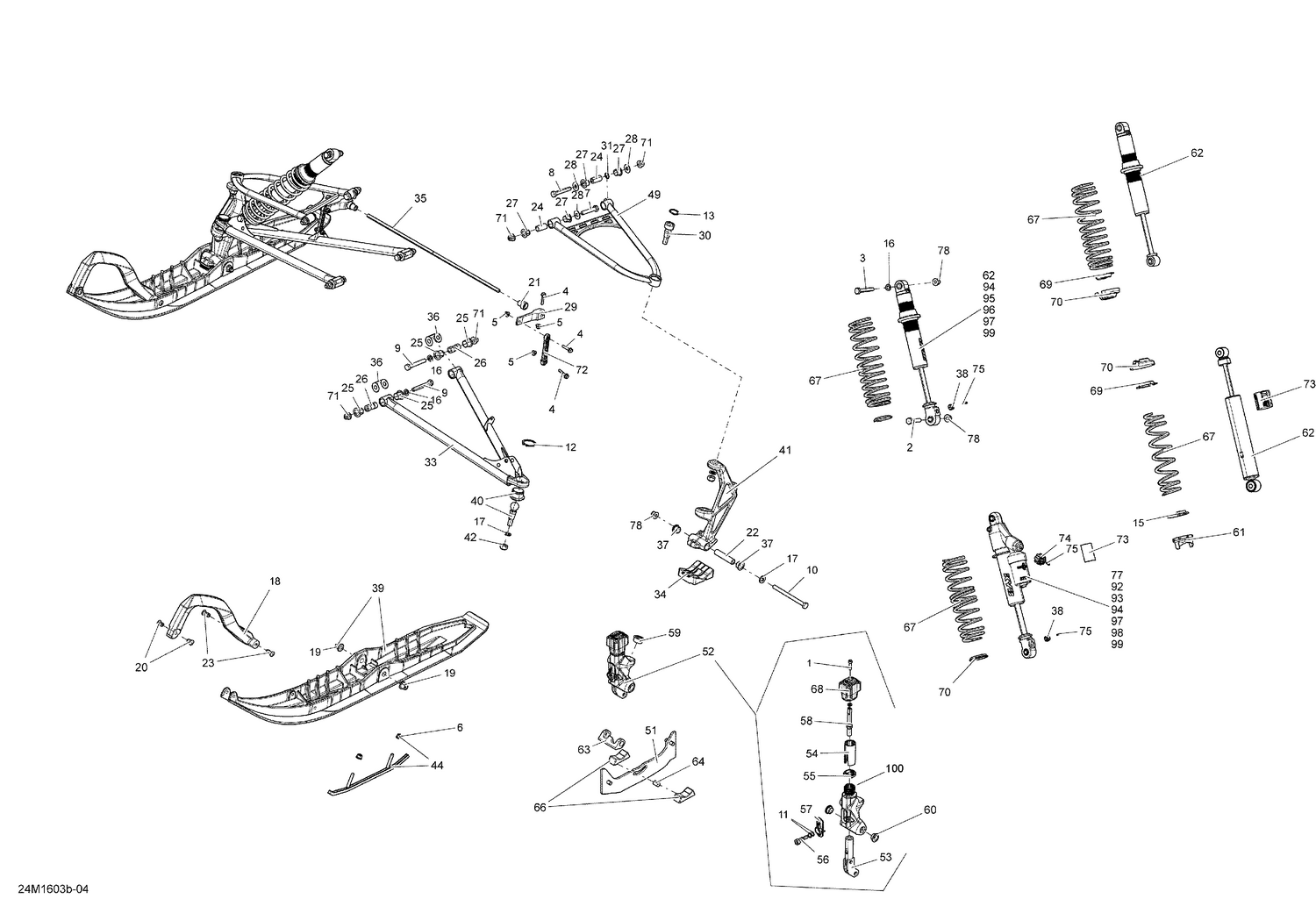

07- Front Suspension And Ski - All Models
Parts (64)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 250000925 | Socket Head Screw M6 X 25 |
| 2 | 207005554 | Hex Screw M10 X 1.5 X 55 |
| 3 | 207006544 | Hex. Screw M10 X 1.5 X 65 |
| 4 | 207663056 | Hex. Flange Screw M6 X 1.0 X 30 |
| 5 | 233261466 | Hex. Flange Elastic Nut M6 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 250001022 | Screw Hex. M10 X 50 This part replaces 250000289. |
| 8 | 250001023 | Screw Hex. M10 X 60 This part replaces 250000290. |
| 9 | 250001024 | Screw Hex. M10 X 70 This part replaces 250000291. |
| 10 | 250000703 | Hex. Screw M10 X 130 |
| 11 | 293300013 | O-Ring |
| 12 | 293370035 | Circlip |
| 13 | 293370070 | Circlip |
| 15 | 503187500 | Spring Guide |
| 16 | 503189564 | Washer |
| 17 | 503192491 | Washer |
| 19 | 505071781 | Ski Bushing |
| 20 | 505071812 | Retainer 17mm long |
| 21 | 505072064 | Bushing |
| 22 | 506133300 | Spacer |
| 23 | 505072133 | Retainer 23mm Long |
| 24 | 505072143 | Sleeve |
| 25 | 505072208 | Bushing |
| 26 | 505072209 | Sleeve |
| 27 | 505072250 | Bushing |
| 28 | 505072392 | Washer |
| 29 | 505072394 | Stabilisator Lever |
| 30 | 505072913 | Upper Ball Joint |
| 31 | 505072448 | O-Ring |
| 35 | 505072602 | Stabilisator |
| 36 | 505072634 | Wear Plate |
| 37 | 505072690 | Leg Bushing |
| 38 | 505072753 | Adjustment Knob |
| 40 | 505073636 | Ball Joint |
| 42 | 232521464 | Hex Elastic Nut M12 X 1.25 |
| 44 | 860201044 | Carbide Runner Kit (Square Runner) |
| 44 | 860201178 | Carbide Runner Kit, Ajustable TS Ski |
| 51 | 860201178 | Carbide Runner Kit, Ajustable TS Ski |
| 52 | 415130043 | Knob Adjuster Repair Kit |
| 52 | 505073789 | Black LH Support |
| 52 | 505073792 | Black RH Support |
| 53 | 505073761 | Tip |
| 54 | 415130043 | Knob Adjuster Repair Kit |
| 55 | 415130043 | Knob Adjuster Repair Kit |
| 56 | 505073767 | Screw |
| 57 | 415130043 | Knob Adjuster Repair Kit |
| 58 | 505073771 | Shaft |
| 59 | 505073772 | Black, Rubber Grommet |
| 60 | 505073773 | Bushing |
| 61 | 505073625 | Adjustment Cam |
| 63 | 505073779 | Leg Stopper |
| 64 | 505073782 | Pin |
| 66 | 505073788 | Ski Stopper |
| 68 | 415130043 | Knob Adjuster Repair Kit |
| 69 | 706200785 | Cap |
| 71 | 250100165 | Hex. Flange Elastic Nut M10 |
| 72 | 505072204 | Sway Bar Double Joint Link |
| 73 | 516005535 | Shock Decal "Mc" |
| 75 | 250000644 | Allen Screw M3 X 0.5 X 10 This part replaces 205031060. |
| 94 | 505070398 | Air Valve |
| 95 | 503189308 | Piston Ring |
| 96 | 414888312 | O-Ring |
| 97 | 505070400 | O-Ring |
| 99 | 505070399 | Screw |
