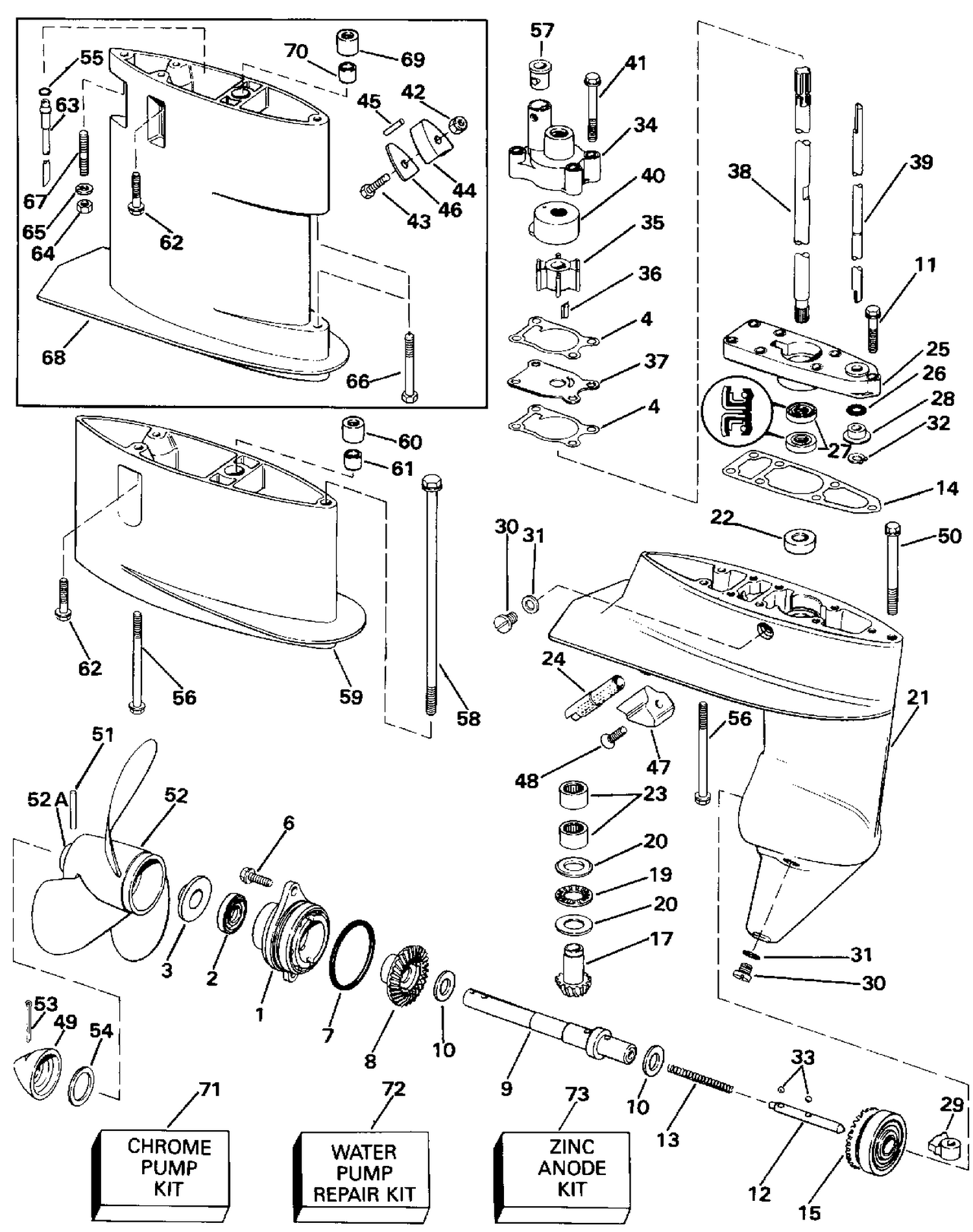

| Ref | Part Number | Description |
|---|
| 8 |
0397699 |
GEAR & BUSHING ASSY., Reverse |
| 9 |
0435407 |
PROPELLER SHAFT |
| 12 |
0332655 |
SHIFTER |
| 13 |
0343272 |
SPRING, Shifter This part replaces 0332656. |
| 15 |
0432144 |
GEAR & BEARING ASSY., Forward |
| 26 |
0305242 |
O RING |
| 29 |
0332654 |
CAM, Shift |
| 33 |
0332658 |
BALL, Drive |
| 34 |
0389577 |
IMPELLER HOUSING ASSY. |
| 35 |
0436137 |
IMPELLER Assy |
| 37 |
0324640 |
PLAT, Impeller housing |
| 38 |
0337939 |
DRIVESHAFT |
| 38 |
0341212 |
DRIVESHAFT, x-long, 25 in. This part replaces 0337941. |
| 39 |
0336061 |
SHIFT ROD, Lower |
| 39 |
0336067 |
SHIFT ROD, Lower, x-long |
| 41 |
0331980 |
SCREW, Bracket, port |
| 44 |
0327501 |
EXHAUST PLUG |
| 45 |
0327503 |
DRAIN TUBE |
| 46 |
0327505 |
PLATE, Exhaust plub (srl only) |
| 47 |
0432397 |
ANODE KIT This part replaces 0334451. |
| 49 |
0324694 |
CAP, Propeller shaft |
| 50 |
0342540 |
SCREW, Exhaust housing to ext. This part replaces 0316440. |
| 51 |
0324690 |
DRIVE PIN |
| 52 |
0390237 |
PROPELLER |
| 52 |
0391096 |
PROPELLER |
| 52 |
0392183 |
PROPELLER - 9 1/4 X 6 1/2 |
| 54 |
0324689 |
SPACER |
| 66 |
0342540 |
SCREW, Exhaust housing to ext. This part replaces 0316440. |
| 67 |
0552913 |
STUD, Gearcase to exh. hsg. |
| 68 |
0396032 |
EXTENSION ASSY. |
| 68 |
0396307 |
EXTENSION ASSY. |
| 71 |
0390772 |
CHROME PUMP KIT |
| 72 |
0396644 |
WATER PUMP REPAIR KIT |
| 0435107 |
0439006 |
GEARCASE Assy This part replaces 0435107. |
| 0435108 |
0439006 |
GEARCASE Assy This part replaces 0435108. |
| 0435109 |
0439006 |
GEARCASE Assy This part replaces 0435109. |
| 0435542 |
0435542 |
EXTENSION KIT Assy |
