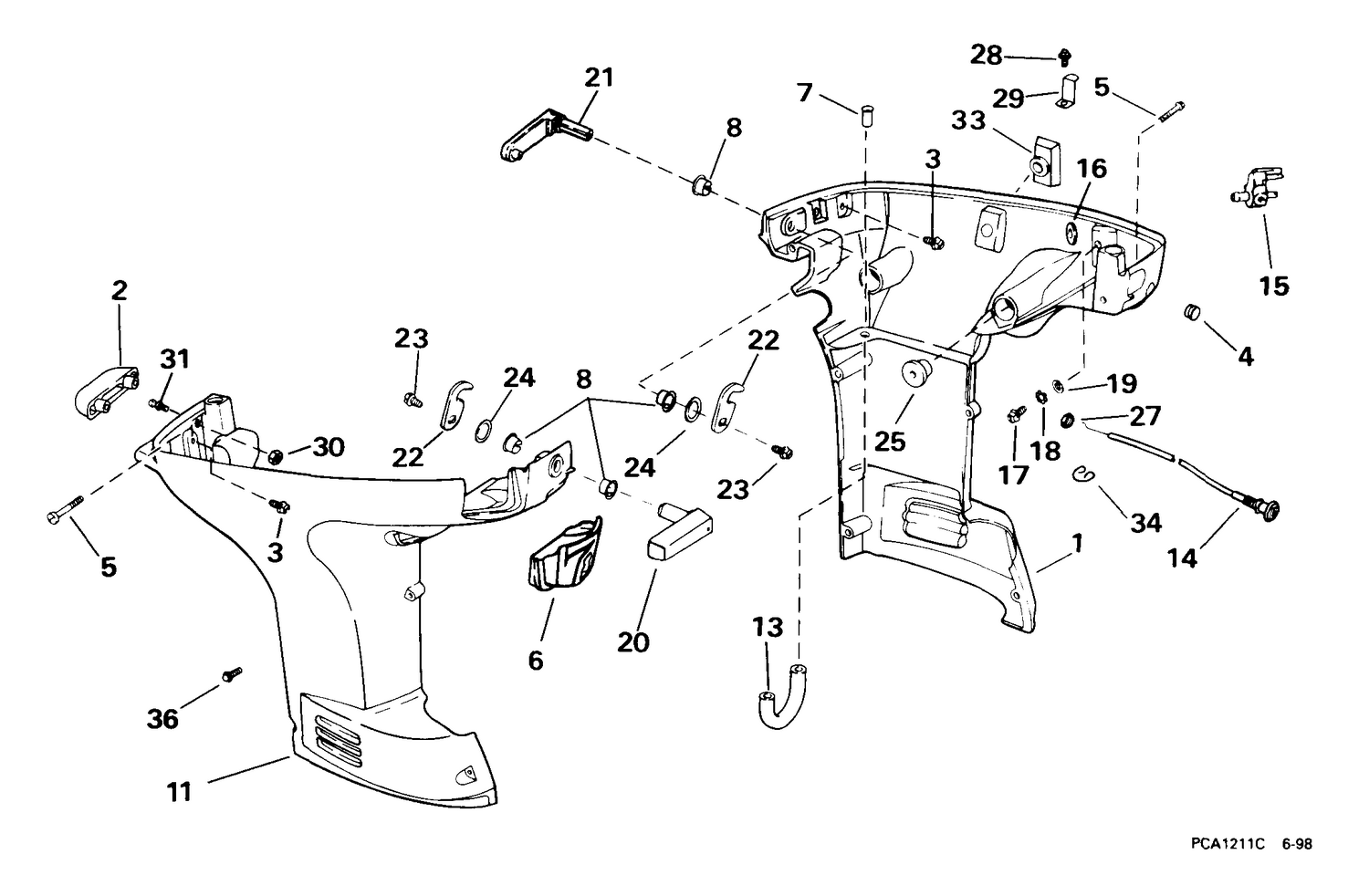

LOWER ENGINE COVER
Parts (14)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0343170 | ENGINE COVER ASSY., Lower, port |
| 2 | 0344466 | BUMPER, Cover |
| 3 | 0338318 | SCREW, Bumper to cover |
| 5 | 0341989 | SCREW, Cover, front, M6 |
| 6 | 0339446 | GROMMET |
| 6 | 0339447 | GROMMET |
| 11 | 0344461 | ENGINE COVER, Lower, stbd. |
| 13 | 0336225 | FLEXIBLE, connecteur vers filtre |
| 14 | 0437011 | CHOKE CABLE |
| 20 | 0433514 | HANDLE ASSY. |
| 21 | 0439536 | HANDLE ASSY., Rear |
| 22 | 0335570 | HOOK, Front & rear |
| 25 | 0332413 | MOUNT |
| 34 | 0336417 | DISPOSITIF DE RETENUE, tringlerie de sens de marche |
