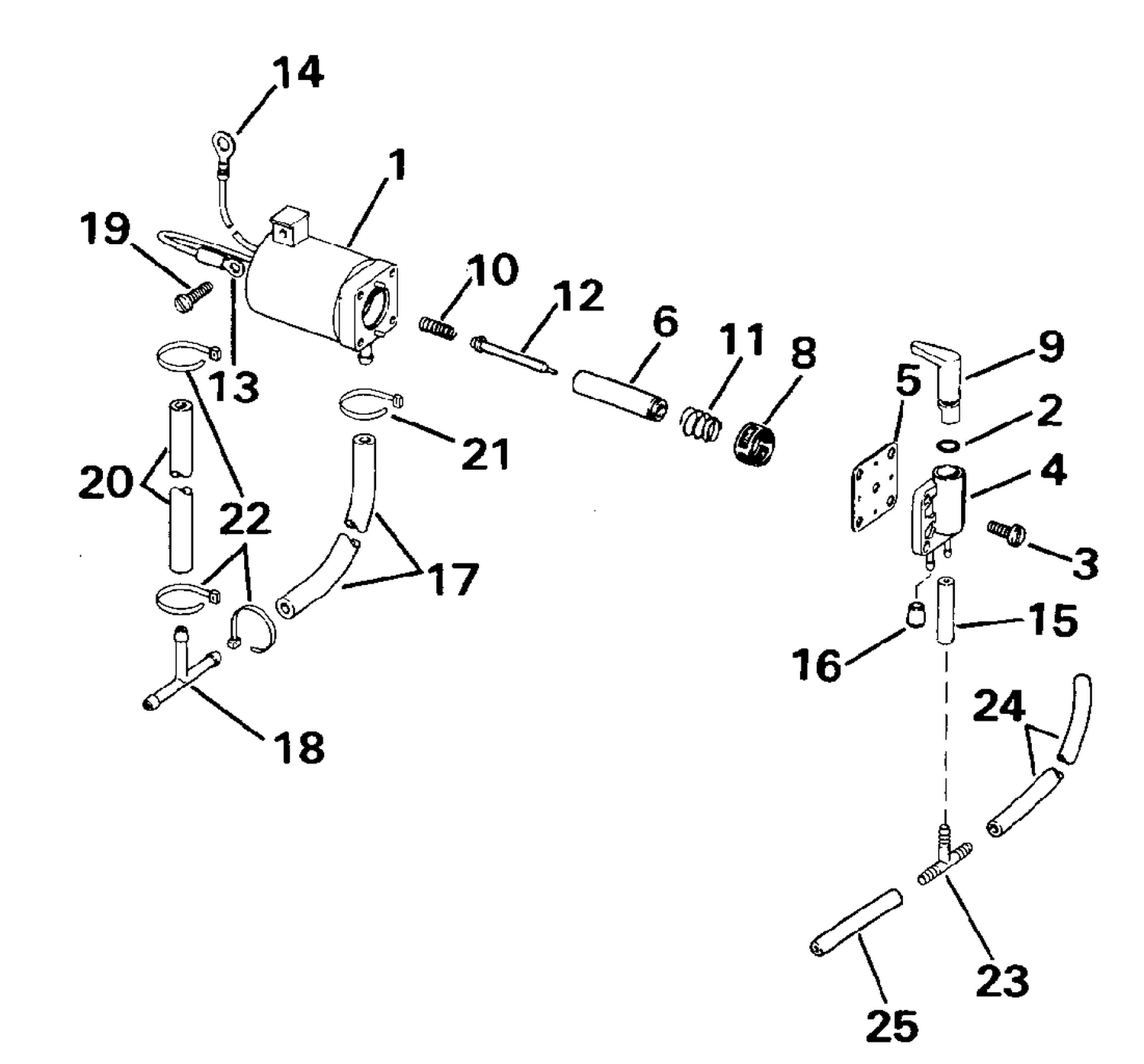

ELECTRIC PRIMER SYSTEM
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 5007356 | Kit Ay This part replaces 0397909. |
| 4 | 0511807 | COVER&GASKET AY |
| 5 | 0333448 | GASKET |
| 15 | HOSE, | Primer to tee, 2 1/4 in. (57mm) |
| 17 | HOSE, | Tee to primer, 3 in. (76mm) |
| 19 | 0329182 | VIS, borne |
| 20 | HOSE, | Tee to carb., 6 1/4 in. (159mm) |
| 22 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 23 | 0325569 | T, amorçage |
| 24 | HOSE, | Tee to carb. 8 in. (203mm) |
