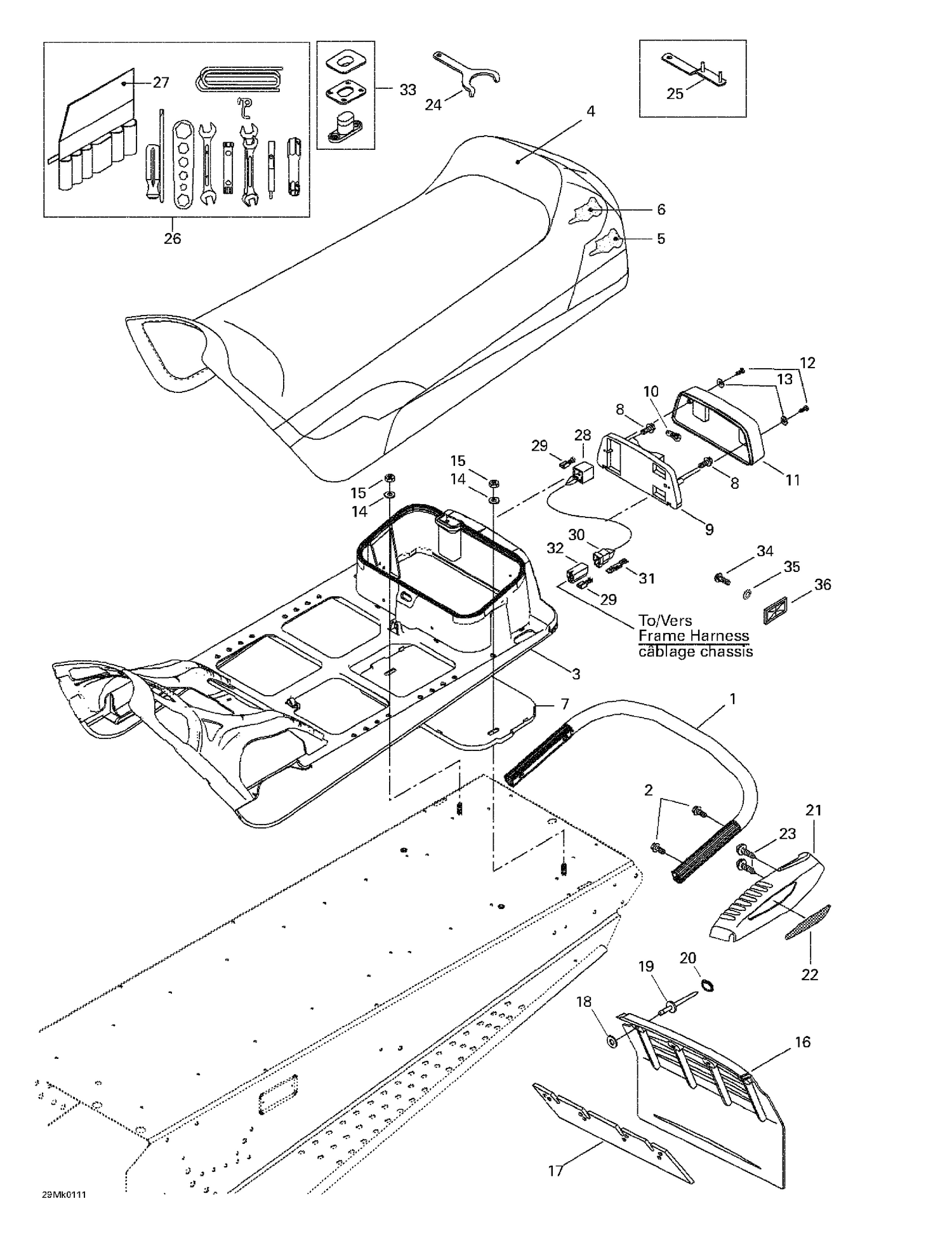

09- Seat And Accessories
Parts (28)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 518322438 | REAR BUMPER - Call your local BRP dealership |
| 2 | 207682044 | Hex. Flange Screw M8 X 20 |
| 3 | 572107600 | Seat Base |
| 4 | 510003858 | Seat Cover (STD-TRAIL-ADR) |
| 5 | 510003840 | Seat Foam |
| 6 | 510003841 | Seat Foam |
| 7 | 572107601 | UNDER CHEST - Call your local BRP dealership |
| 8 | 732603006 | Hex. Screw #10 X 1" |
| 9 | 510004061 | LIGHT HOUSING - Call your local BRP dealership This part replaces 414513600. |
| 10 | 520000758 | Bulb This part replaces 410504000. |
| 11 | 414513700 | Lens |
| 12 | 209632540 | Phillips Tapping Screw M3.9 X 25 |
| 13 | 414516400 | Washer - Call your local BRP dealership |
| 14 | 234082410 | Flat Washer 8 mm |
| 15 | 232581414 | Hex. Elastic Stop Nut M8 |
| 16 | 572092100 | SNOW GUARD - Call your local BRP dealership |
| 17 | 572108200 | REINFORCEMENT - Call your local BRP dealership |
| 18 | 517225900 | Flat Washer |
| 19 | 293150100 | Pop Rivet 3/16" This part replaces 390908000. |
| 20 | 415073300 | Cap |
| 25 | 520000126 | Adjustment Wrench |
| 27 | 520000047 | Tool Bag |
| 28 | 515175250 | Female Terminal Housing, 3 Circuits |
| 29 | 561503100 | FEMALE TERMINAL - Call your local BRP dealership |
| 30 | 409204200 | FEMALE HOUSING - Call your local BRP dealership |
| 31 | 409210000 | MALE TERMINAL - Call your local BRP dealership This part replaces 409206100. |
| 32 | 409204300 | Female Housing |
| 33 | 414728000 | SEAT BUCKLE - Call your local BRP dealership |
