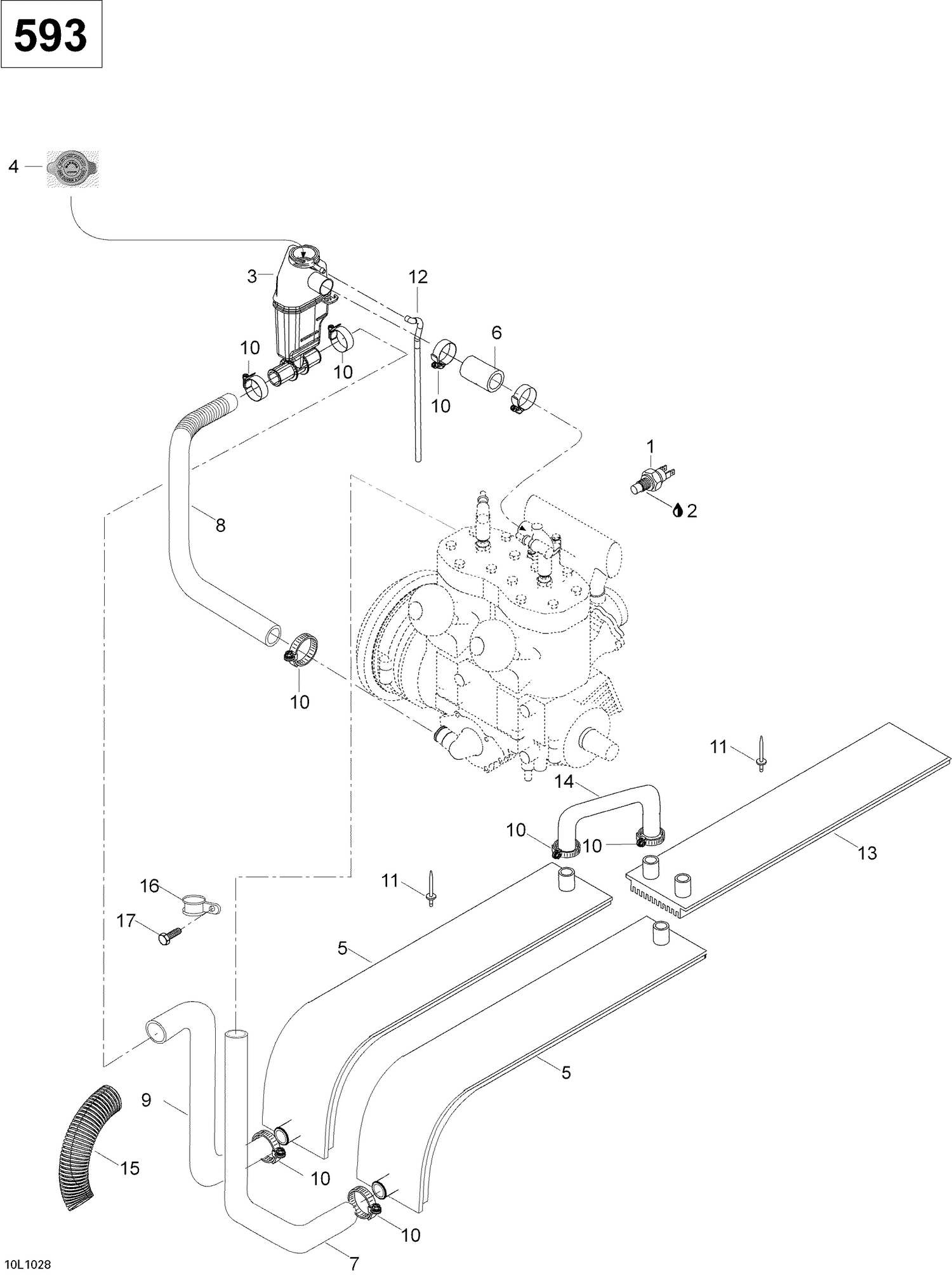

| Ref | Part Number | Description |
|---|
| 1 |
515177835 |
Temperature Sensor This part replaces 515176043. |
| 2 |
Not |
Available As Spare Part - Loctite 572, 50ml |
| 3 |
509000134 |
Tank Coolant |
| 4 |
509000187 |
Pressure Cap |
| 5 |
605151689 |
LH RADIATOR - Call your local BRP dealership |
| 5 |
605151690 |
RH RADIATOR - Call your local BRP dealership |
| 6 |
605354602 |
HOSE - Call your local BRP dealership |
| 7 |
605353565 |
HOSE - Call your local BRP dealership |
| 8 |
605355768 |
HOSE - Call your local BRP dealership |
| 9 |
605353567 |
HOSE - Call your local BRP dealership |
| 10 |
408800400 |
TRIDON GEAR CLAMP - Call your local BRP dealership |
| 11 |
36108 |
Rivet This part replaces M36108. |
| 12 |
219704410 |
Polyurethane Hose 10000Mm Long |
| 13 |
605351687 |
Radiator, Rear |
| 14 |
605253904 |
FRONT RADIATOR HOSE - Call your local BRP dealership |
| 15 |
M28036 |
Tubing |
| 16 |
M27011 |
CLIP - Call your local BRP dealership |
