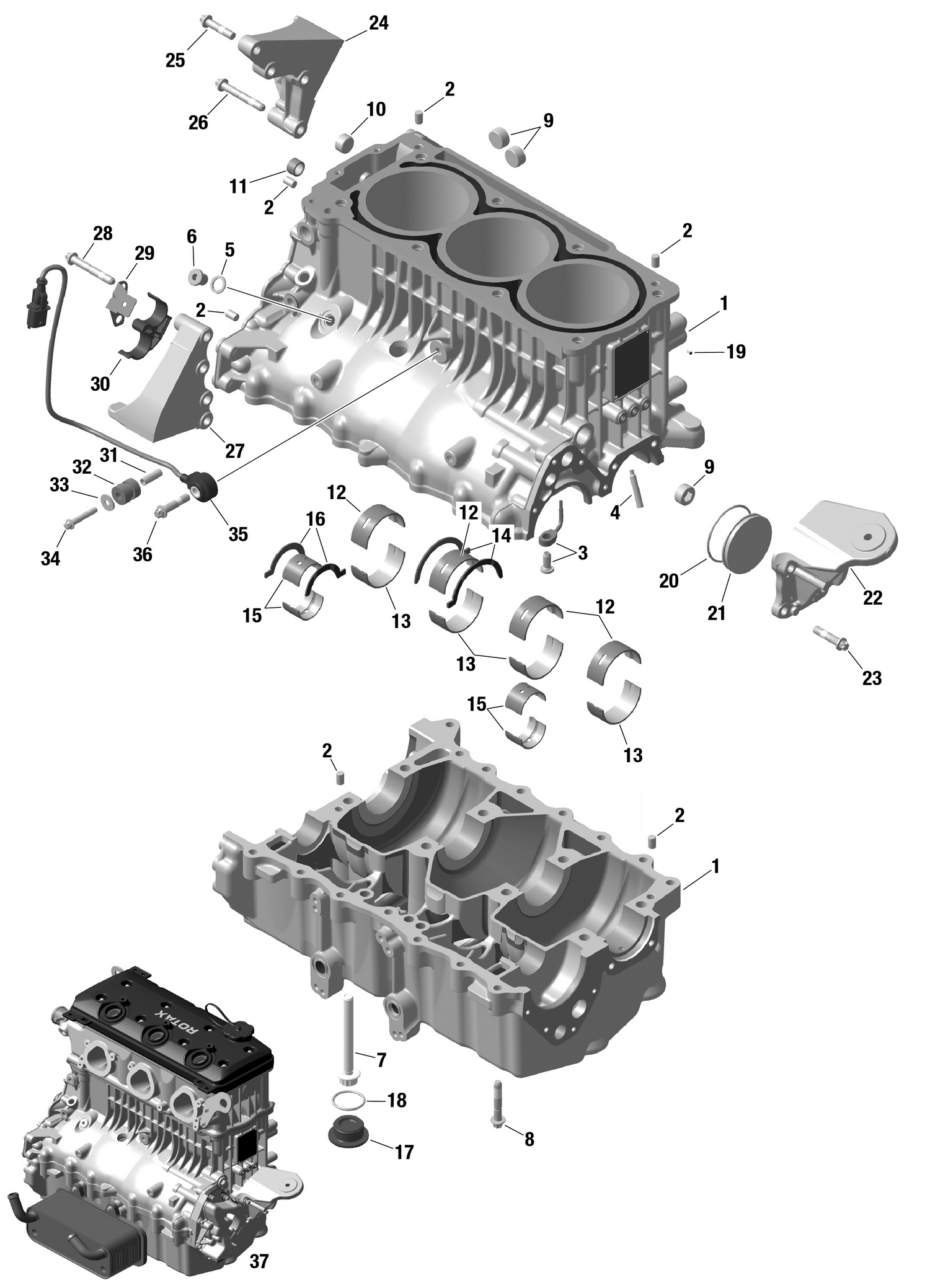

01- ROTAX - Crankcase — Parts Catalog

Ref	Part Number	Description
2	420632010	Center Pin 8 X 12
3	420956773	Oil Spray Nozzle
4	XXX	Not Available As Spare Parts
5	420250016	Aluminum Sealing Ring
6	420841923	Plug Screw M12
7	420641121	Torx Flange Screw M10 X 1.25
8	420641208	Hex. Flange Screw M8 X 45
9	420641317	Plug Screw M20 X 1.5
10	420441051	Screw
11	420232482	Needle Bushing
12	420933456	Plain Half-Bearing
13	420933466	Plain Half-Bearing
14	420933475	Half-Ring
15	420933442	Plain Bearing Half
16	420933470	Half-Ring
19	420249073	Grooved Pin
21	420660110	Plug Cover
22	420811794	Front Engine Bracket
23	420641188	Torx Flange Screw M8 X 35
24	420811788	Engine Bracket PTO, Exhaust
25	420641188	Torx Flange Screw M8 X 35
26	420641213	Torx Flange Screw M8 X 55
27	420811784	Engine Bracket PTO, Exhaust
28	420641213	Torx Flange Screw M8 X 55
29	420851740	Retaining Plate
30	420660293	HOSE BRACKET This part replaces 420660290.
31	420847971	Spacer
32	420660090	Rubber Bracket
33	420827968	Flat Washer M6
34	420641258	Torx Flange Screw M6 X 35
35	420664031	Noise Sensor
36	420641188	Torx Flange Screw M8 X 35
