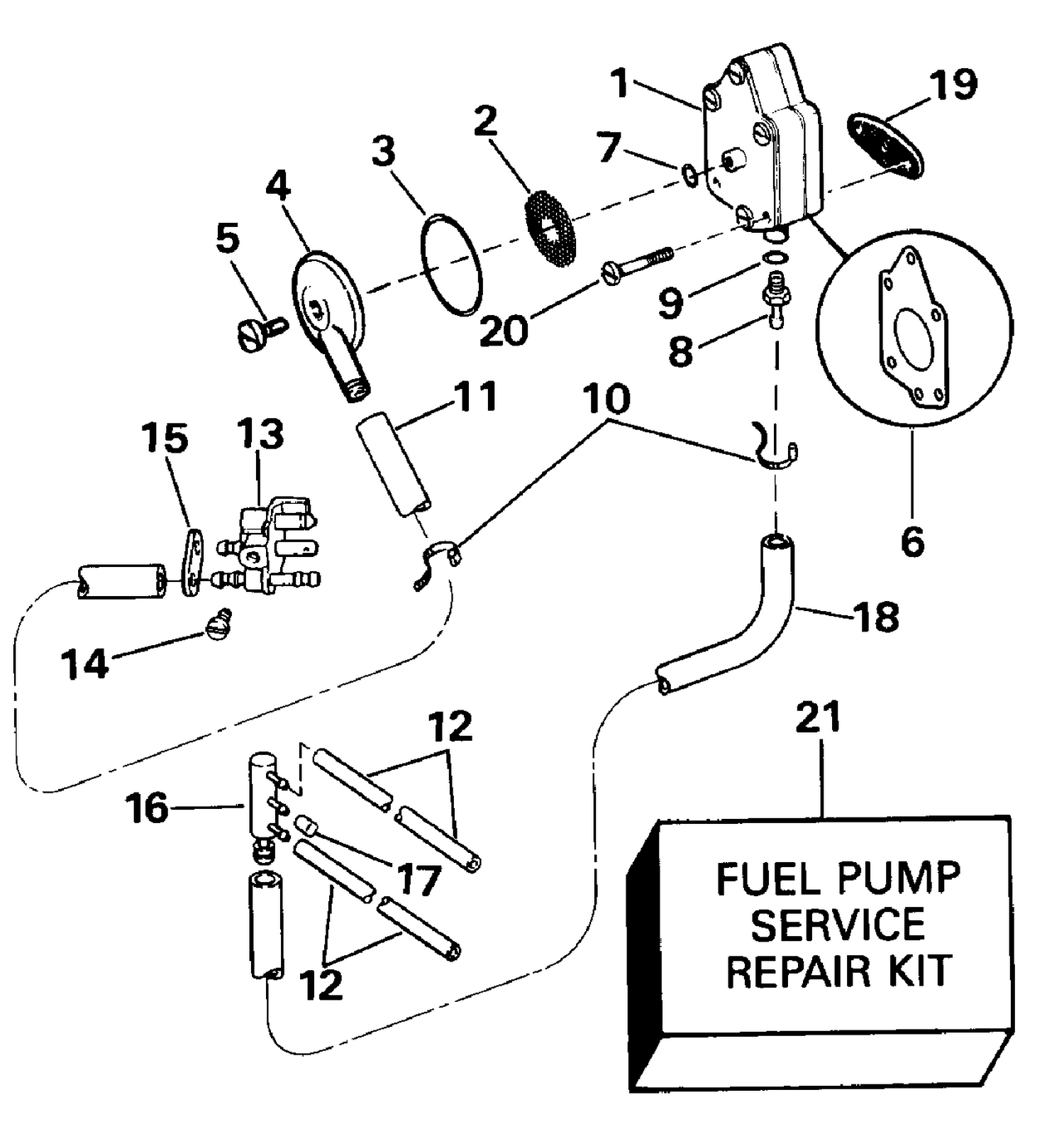

FUEL PUMP AND FILTER
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 0438556 | FUEL PUMP ASSY. This part replaces 0433387. |
| 10 | 0320107 | ATTACHE-CÂBLE, connecteur capteur de position de vilebrequin vers clapet |
| 11 | HOSE, | Fuel connector to pump 356mm (14in.) |
| 12 | 0329695 | HOSE |
| 14 | 0310379 | SCREW |
| 16 | 5004610 | FITTING, Fuel manifold This part replaces 0395540. |
| 17 | 0333264 | CAP, Fuel manifold |
| 18 | HOSE, | Pump to manifold 14 in. (356mm) |
| 19 | 0303615 | GASKET |
