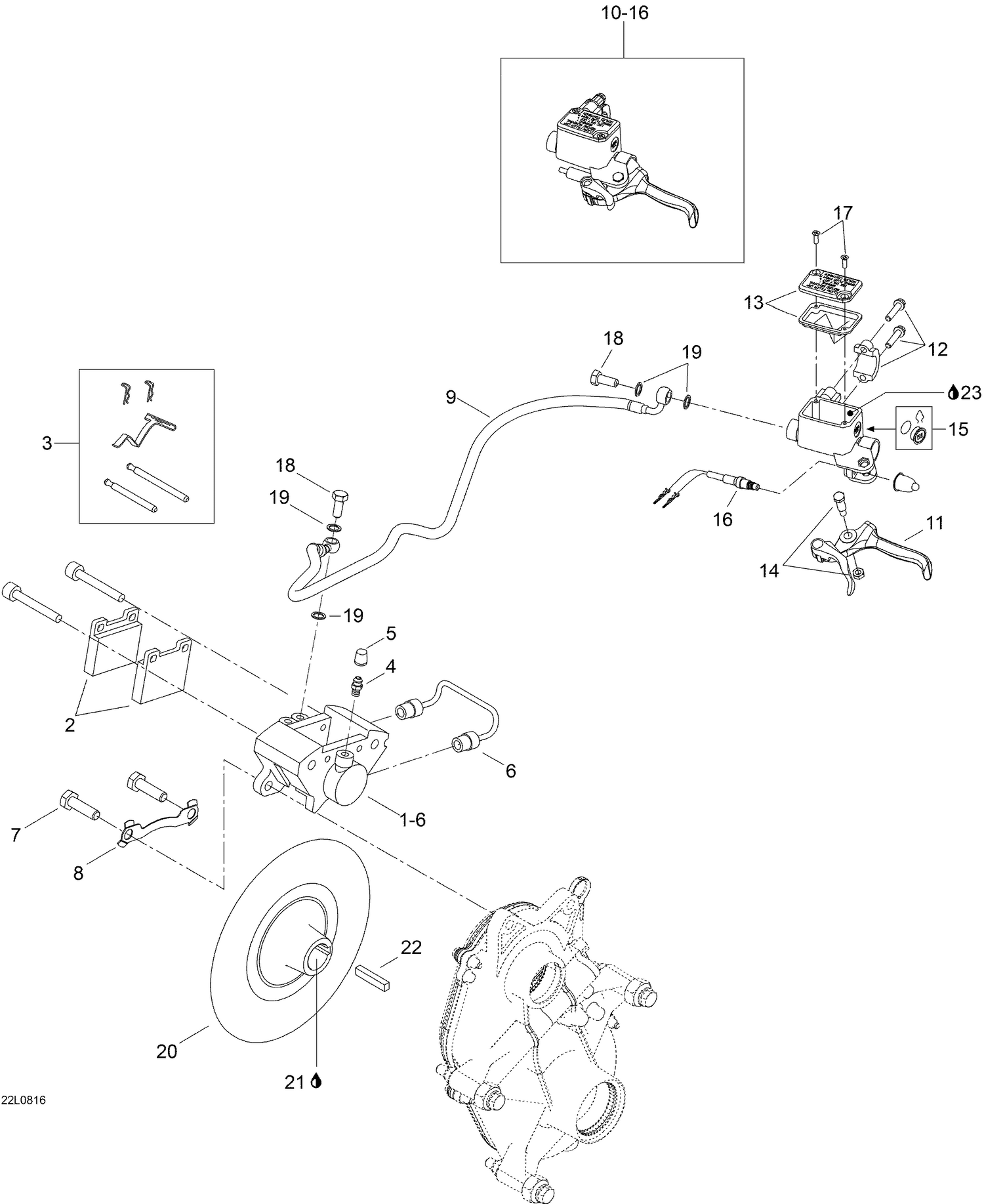

| Ref | Part Number | Description |
|---|
| 2 |
415084600 |
Brake lining kit |
| 3 |
415128865 |
KIT, PINS, RETAINERS, SPRING - Call your local BRP dealership |
| 4 |
414989800 |
BLEEDER SCREW - Call your local BRP dealership |
| 5 |
414989700 |
BOOT-QTS 20 - Call your local BRP dealership |
| 6 |
414989900 |
RIGID TUBING - Call your local BRP dealership |
| 7 |
40049 |
Hex. screw M10 x35 |
| 8 |
507032316 |
LOCKING TAB - Call your local BRP dealership |
| 9 |
507032291 |
HOSE - Call your local BRP dealership |
| 11 |
415129216 |
LEVER - Call your local BRP dealership This part replaces 507032423. |
| 12 |
507032477 |
Clamp assy |
| 13 |
415029900 |
Cover |
| 14 |
415030000 |
Pin Ass'y |
| 15 |
414990600 |
WINDOW - Call your local BRP dealership |
| 16 |
507032366 |
Microswitch ass'y |
| 17 |
216141260 |
SCREW M4 X 12 - Call your local BRP dealership |
| 18 |
414920500 |
Banjo bolt |
| 19 |
414920600 |
Washer |
| 20 |
507032403 |
Brake disk |
| 21 |
293800070 |
Lubricant LOCTITE LB 8150 - Call your local BRP dealership |
| 22 |
507021300 |
KEY - Call your local BRP dealership |
