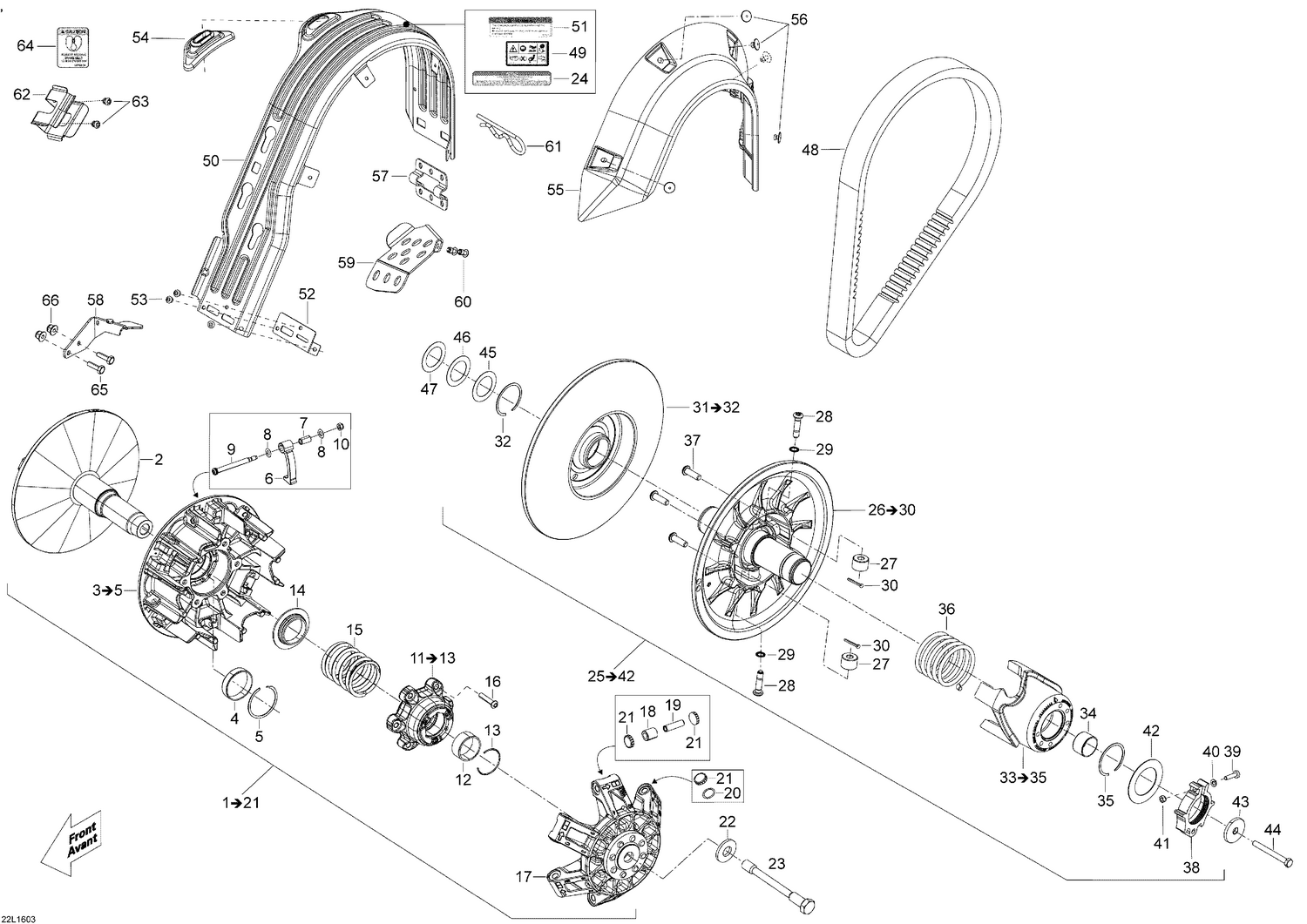

05- Pulley System
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 417224091 | Fixed Flange Ass'y This part replaces 417223867. |
| 4 | 417222758 | Bushing Outer Half |
| 5 | 293370037 | Circlip |
| 6 | 417224228 | Ramp (748) |
| 8 | 417223660 | Washer Stopper |
| 9 | 417223694 | Ramp Axle |
| 10 | 232551414 | Elastic Stop Nut M5 |
| 12 | Not | Available As Spare Part - Bushing |
| 13 | 293370065 | Circlip |
| 14 | 417223752 | Spring Seat |
| 15 | 417223749 | Spring (Red / Orange, 355-845N / 80-190lbs) |
| 16 | 250000580 | Torx Screw M6 X 30 |
| 17 | 417223865 | Governor Cup Ass'y |
| 18 | 417223767 | Roller |
| 19 | 417223257 | Roller Axle |
| 20 | 293300185 | O-Ring |
| 21 | 417223919 | Slider Shoe |
| 22 | 250200144 | Conical Spring Washer M14 |
| 23 | 417300432 | Drive Pulley Bolt |
| 24 | 516005503 | Drive Pulley Bolt Decal |
| 27 | 417127189 | Roller |
| 28 | 417127294 | Stud |
| 29 | 250200009 | Lock Washer |
| 30 | 250400063 | Spring Pin M3 x 30 |
| 32 | 293370049 | Spacer (1.91/2.21mm) |
| 34 | 417127318 | Bushing |
| 35 | 293370049 | Spacer (1.91/2.21mm) |
| 36 | 417127467 | Spring (Red, 182-313N / 41-70lbs) |
| 37 | 250000757 | Screw-Torx Button Head M8 X 25 S.Gr |
| 38 | 415129604 | Pulley Adjuster Ass'y |
| 39 | 205052544 | Socket Head Screw M10 x 1.5 |
| 40 | 234051410 | Flat Washer M5 |
| 41 | 232551414 | Elastic Stop Nut M5 |
| 42 | 417127155 | Washer |
| 43 | 517302322 | Strength Washer |
| 44 | 207287544 | Hex. Cap Screw M8 x 75 |
| 48 | 417300551 | Drive Belt This part replaces 417300383. |
| 49 | 516003919 | Warning Decal |
| 50 | 417300382 | Belt Guard |
| 51 | 516006900 | Belt Guard Security Decal |
| 52 | 417300380 | Reinforcement |
| 53 | 390909200 | Avex Rivet |
| 54 | 417300381 | Guide |
| 55 | 417300356 | Side Protector |
| 56 | 293150103 | Pop Rivet 3/16 |
| 57 | 417300413 | Belt Guard Bracket |
| 58 | 417300451 | BELT GUARD BRACKET - Call your local BRP dealership |
| 59 | 518327035 | Brake Hose Cover |
| 60 | 293150163 | Rivet Hucklok |
| 61 | 114045200 | Hair Pin |
| 62 | 517281905 | Drive Belt Bracket |
| 63 | 390909100 | Avex Rivet |
| 64 | 516007493 | Belt Decal |
| 65 | 207162044 | Hex. Cap Screw M6 x 20 |
