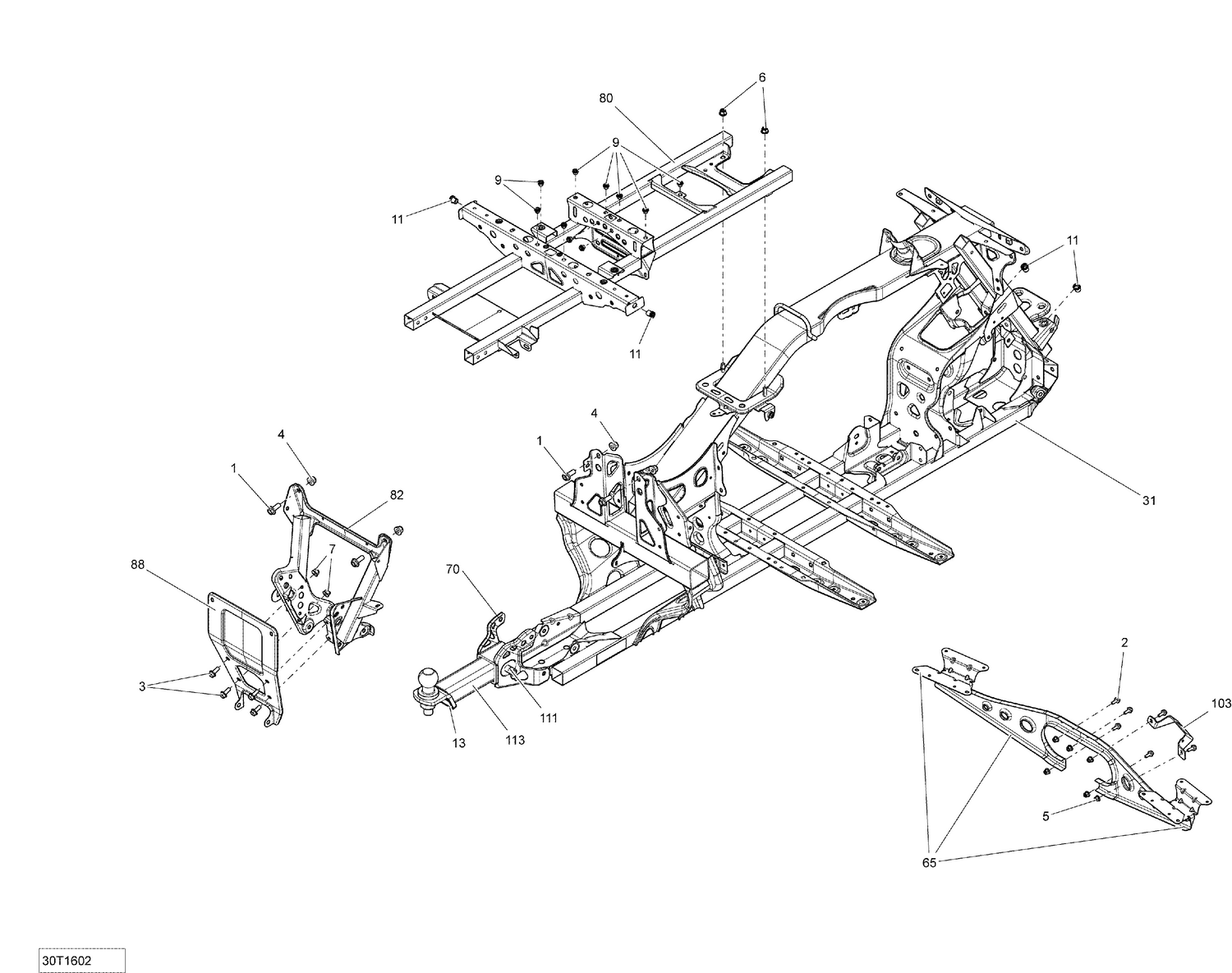

09- Frame - All Models
Parts (9)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 207602546 | Hex. Flange Screw M10 X 25 |
| 3 | 207682046 | Hex. Flange Screw M8 X 20 |
| 4 | 233201436 | Hex. Flange Elastic Nut M10 |
| 6 | 233281414 | Hex. Flange Elastic Nut M8 |
| 7 | 233281416 | Hex. Elastic Flange Nut M8 |
| 11 | 293450307 | Insert Half Hex Body M8 x 1.25 |
| 70 | 715005186 | Trailer Hitch This part replaces 715002243. |
| 82 | 705210818 | Rear Pillar This part replaces 705203387. |
| 88 | 705203301 | Rear Support |
