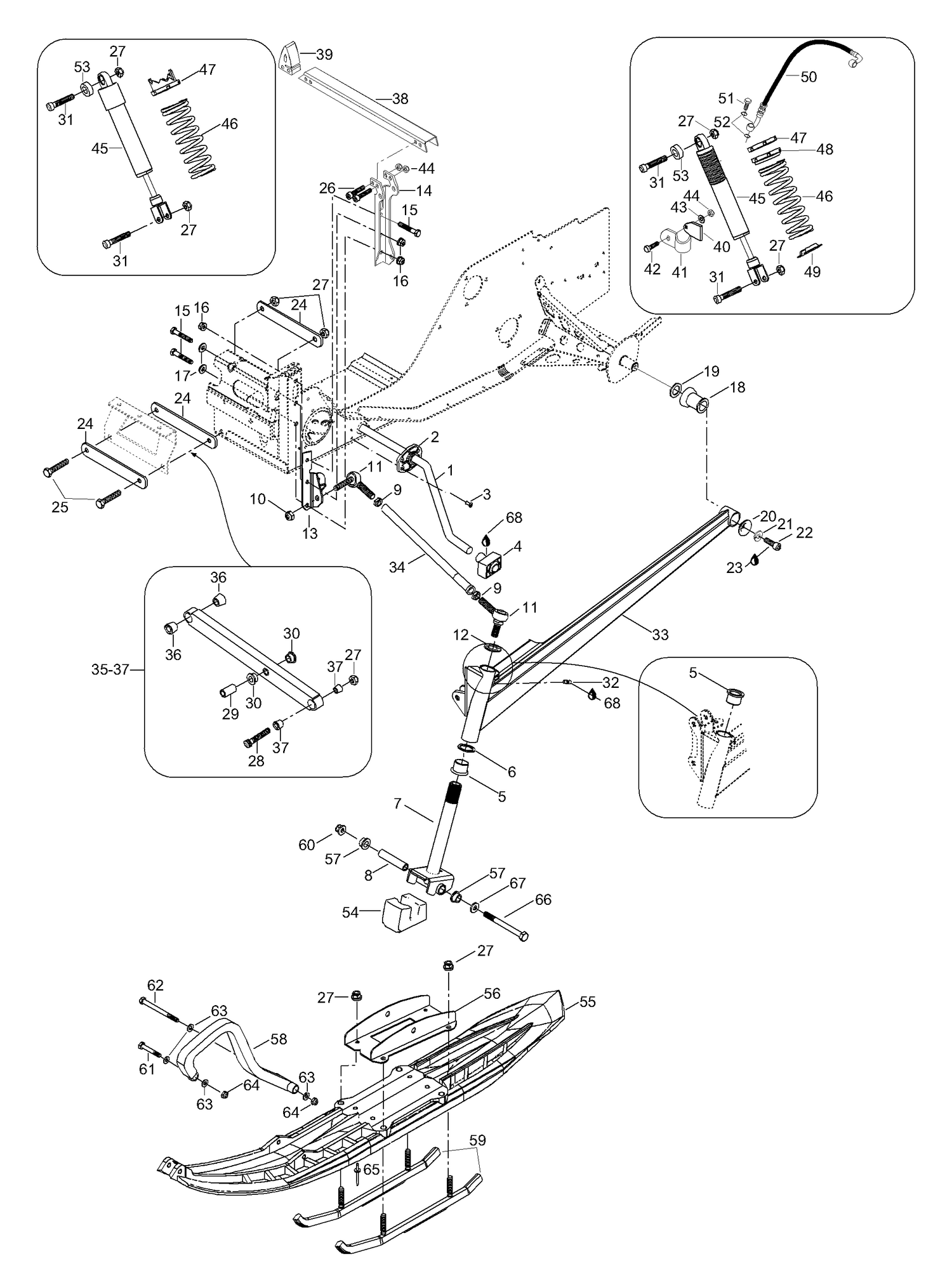

08- Front Suspension

08- Front Suspension

Parts (67)

RefPart NumberDescription
1 5246797 Sway bar
2 505070191 Sleeve
3 36087 Rivet
4 505070117 BALL JOINT BLOCK - Call your local BRP dealership
5 505070003 Bushing
6 505070004 WASHER - Call your local BRP dealership
7 605248927 Ski leg
8 506133300 Spacer
9 33048 Jam nut M12
10 33087 Jam nut elastic M12
11 31092 Ball joint
12 20074 Lock washer
13 5348063 L.H. Upper arm bracket
13 5348064 R.H. Upper arm bracket
14 5245488 Shock bracket
14 5246395 Shock bracket
15 40010 Screw M8x55
16 233281414 Hex. Flange Elastic Nut M8 This part replaces 33201.
17 234081410 Flat Washer 8 mm This part replaces 20104.
18 570062200 DAMPER - Call your local BRP dealership
19 503146700 WASHER - Call your local BRP dealership
20 506079600 CUP - Call your local BRP dealership
21 20014 Spring washer
22 40289 Allen screw M8x25
23 293800060 Loctite 243, 10ml
24 5346112 Support plate
25 40814 Screw M10x110
26 40345 Allen screw M6x40
27 33012 Nut elastic M10
28 40136 Allen screw M10 x 50 (1=10pcs) - Call your local BRP dealership
29 5441433 Bushing
30 31088 Bearing
31 40837 Allen Screw M10x55 DIN 912 (1=10pcs) - Call your local BRP dealership
32 34011 Grease Fitting M6 x 1,00(1=10pcs) - Call your local BRP dealership
33 5247294 R.H. swing arm, moond.
33 5247295 L.H. swing arm, moond.
34 5346122 Upper arm
36 5447769 Inner sleeve
37 5447770 Outer sleeve
38 5348107 Bracket
39 5348087 Rubber damper
40 Not Available As Spare Part - Bracket - DOES NOT APPLY TO THIS MODEL
41 Not Available As Spare Part - Bracket - DOES NOT APPLY TO THIS MODEL
42 Not Available As Spare Part - Lock screw M6x16 - DOES NOT APPLY TO THIS MODEL
43 Not Available As Spare Part - Washer - DOES NOT APPLY TO THIS MODEL
44 33010 Lock Nut M6 (1=10Pcs)
47 505073625 Adjustment Cam This part replaces 503183700.
48 Not Available As Spare Part - Guide spring - DOES NOT APPLY TO THIS MODEL
49 Not Available As Spare Part - Guide spring - DOES NOT APPLY TO THIS MODEL
50 Not Available As Spare Part - Hose - DOES NOT APPLY TO THIS MODEL
51 Not Available As Spare Part - Screw - DOES NOT APPLY TO THIS MODEL
52 Not Available As Spare Part - O-ring - DOES NOT APPLY TO THIS MODEL
53 230055 Rubber bushing
54 505072018 SKI STOPPER - Call your local BRP dealership This part replaces 506151233.
55 505070727 Ski liner
56 605349140 Bridge
57 605448774 Sleeve
58 505070963 Plastic handle, black
59 5347985 Runner
60 33074 NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership
61 40009 Screw M8x50
62 207089044 Hex. Screw M8 x 90 This part replaces 40264.
63 234081410 Flat Washer 8 mm This part replaces 20004.
64 232581414 Hex. Elastic Stop Nut M8 This part replaces 33011.
65 36072 Rivet
66 40814 Screw M10x110
67 20105 Washer, hardened
