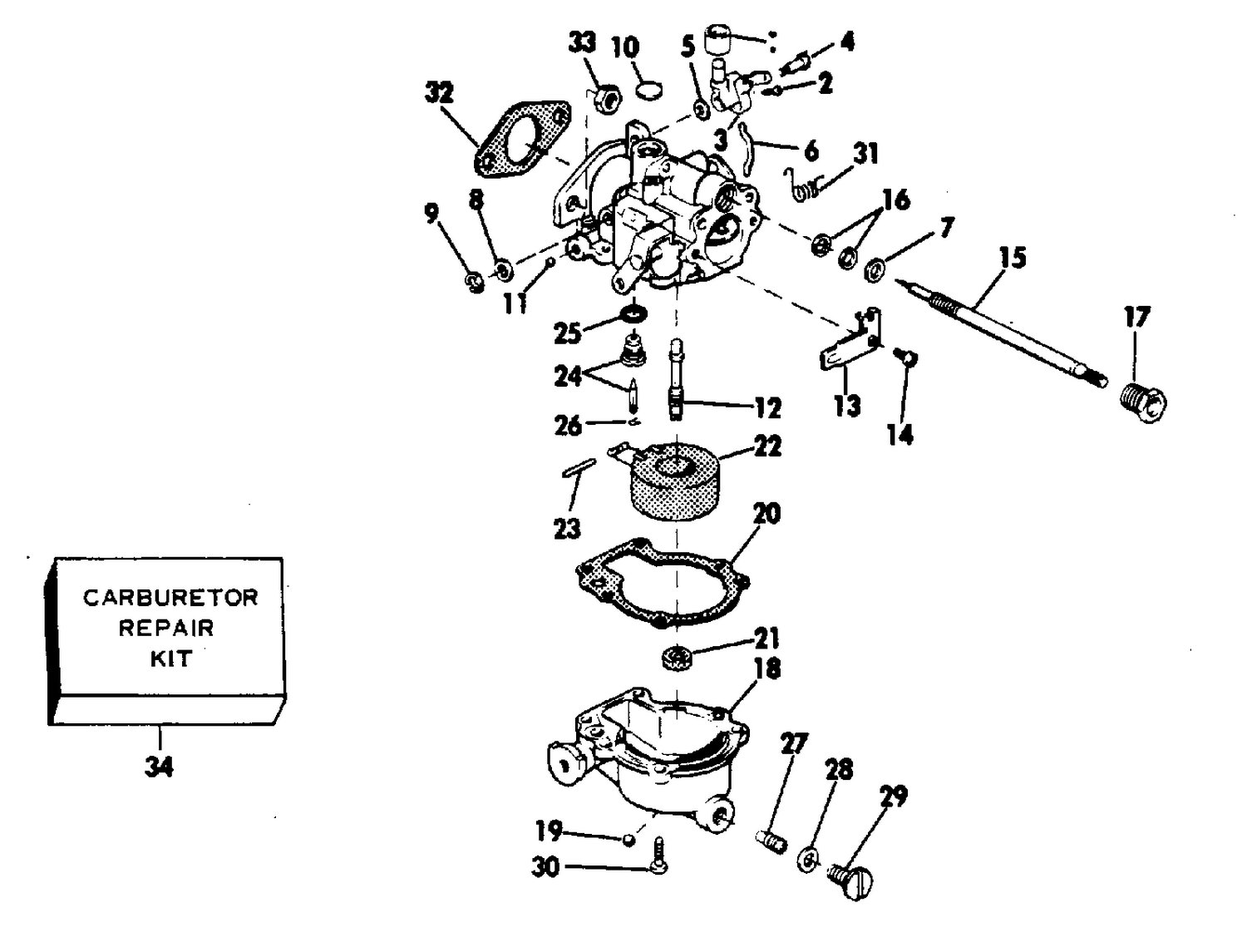

CARBURETOR
Parts (16)
| Ref | Part Number | Description |
|---|---|---|
| 6 | 0330192 | LINK, Cam follower This part replaces 0312830. |
| 9 | 0203949 | E RING LINK This part replaces 0202755. |
| 12 | 0322258 | NOZZLE, High speed |
| 13 | 0311348 | SPRING, Choke |
| 14 | 0306373 | COTTER PIN, Reverse lock |
| 15 | 0390144 | NEEDLE, Slow speed |
| 18 | 0324040 | FLOAT CHAMBER |
| 21 | 0302984 | GASKET |
| 23 | 0300096 | HINGE PIN |
| 26 | 0336842 | CLIP, SPRING This part replaces 0603145. |
| 27 | 0322249 | ORIFICE PLUG |
| 29 | 0304512 | SCREW |
| 30 | 0307045 | NOZZLE, High speed |
| 32 | 0303437 | GASKET |
| 33 | 0328742 | NUT This part replaces 0306338. |
| 0389943 | 0389943 | CARBURETOR ASSY |
