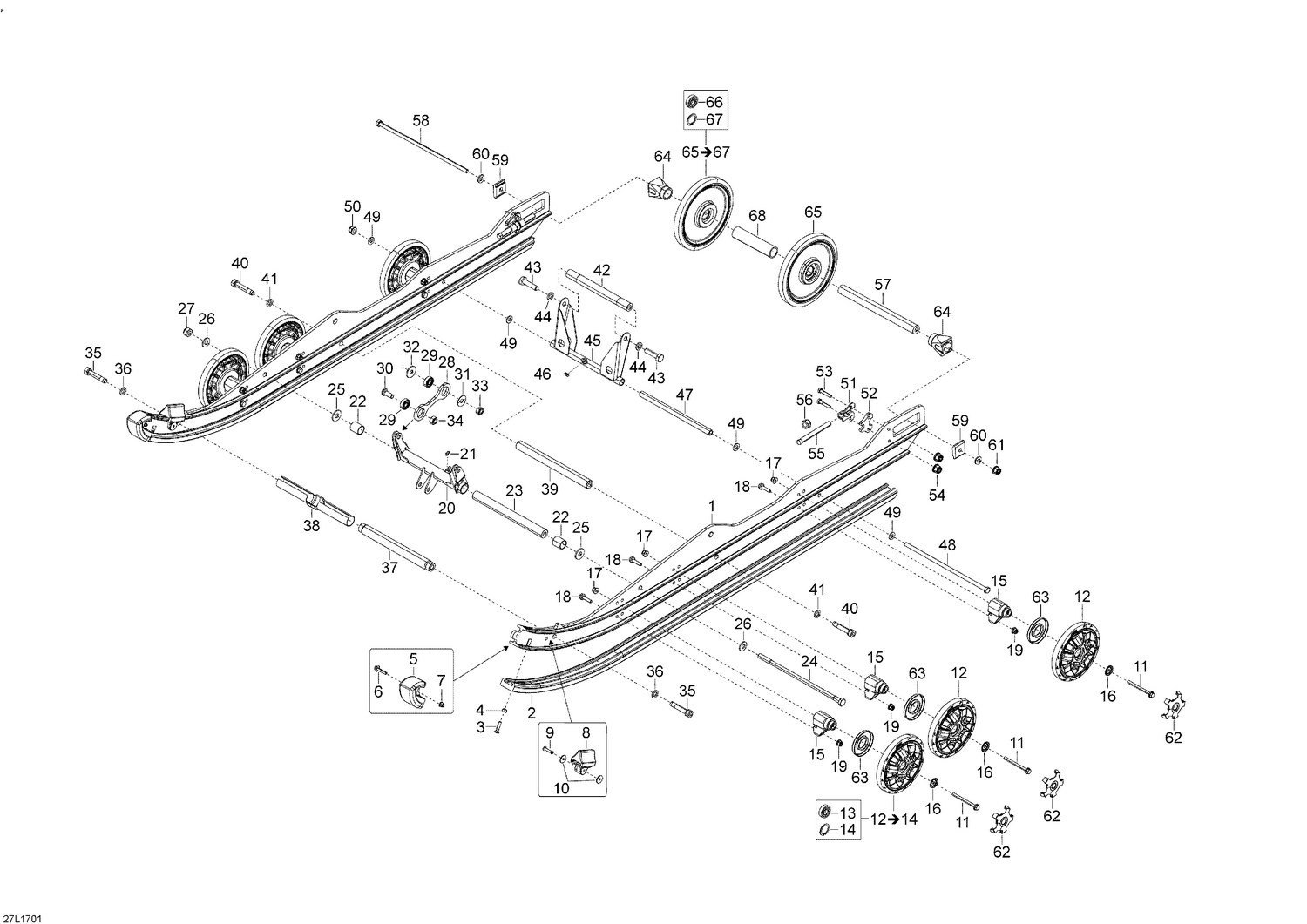

08- Rear Suspension A
Parts (65)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 503194229 | Runner |
| 2 | 503192618 | Slider Shoe |
| 3 | 208562531 | Phillips Screw M6 X 25 |
| 4 | 232561434 | Elastic Stop Nut M6 |
| 5 | 503192299 | Runner Protector |
| 6 | 207652544 | Hex. Flange Screw M5 X 25 |
| 7 | 233251434 | Flanged Elastic Nut M5 |
| 8 | 503192106 | Rubber Stopper |
| 9 | 293150142 | Pop Rivet 3/16" |
| 10 | 503191273 | Washer |
| 11 | 207667056 | Hex. Flange Screw M6 x 70 |
| 13 | 503190396 | Ball Bearing |
| 14 | Not | Available As Spare Part - Circlip |
| 15 | 503193894 | Casted Support |
| 16 | 503191820 | Wheel Cup M6 |
| 17 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 18 | 207662556 | Hex. Flange Screw M6 X 25 |
| 19 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 20 | 503193580 | Front Swing |
| 21 | 408200700 | Grease Fitting |
| 22 | 503193822 | Bushing |
| 23 | 503193893 | Lower Shaft |
| 24 | 503193227 | Bolt M10 X 251MM |
| 25 | 503191926 | Washer |
| 26 | 250200138 | Washer |
| 27 | 233601466 | Elastic Locking Nut M10 |
| 28 | 605254159 | Connecting Rod |
| 29 | 605631003 | Ball Bearing |
| 30 | 205402546 | Socket Screw BN.HD.ISO.7380 |
| 31 | 25004 | Cup Spring |
| 32 | 234002600 | Flat Washer 10 mm, Stainless |
| 33 | 233401414 | Lock Spring Nut M10 |
| 34 | 232500416 | Elastic Stop Nut M10 |
| 35 | 205505054 | Socket Screw |
| 36 | 503192496 | Washer |
| 37 | 605353958 | Shaft |
| 38 | 605355096 | Limiter Strap Retainer |
| 39 | 5343471 | Shaft |
| 40 | 205505054 | Socket Screw |
| 41 | 503192496 | Washer |
| 42 | 503193638 | Lower Shaft |
| 43 | 207204044 | Hex Cap Screw Din.931 S.grip |
| 44 | 503192496 | Washer |
| 45 | 503194342 | Rear Swing |
| 46 | 408200700 | Grease Fitting |
| 47 | 503189156 | Pivot Axle |
| 48 | 503192440 | Bolt M8 X 248mm |
| 49 | 503192494 | Washer |
| 50 | 233281466 | Elastic Flang Nut M8 |
| 51 | 503192583 | Tensioner |
| 52 | 503193250 | Spacer |
| 53 | 207063054 | Hex. Cap Screw M6 X 30 |
| 54 | 233261466 | Hex. Flanged Elastic Nut M6 |
| 55 | 230100054 | Hex Screw M10 x 100 |
| 56 | 233601466 | Elastic Locking Nut M10 |
| 57 | 503194105 | Rear Axle |
| 58 | 503194069 | Bolt M8 |
| 59 | 503194412 | Axle Slider |
| 60 | 250200159 | Conical Spring Washer |
| 61 | 233281466 | Elastic Flang Nut M8 |
| 62 | 503193735 | Black Wheel Cap |
| 63 | 503190434 | Labyrinth Seal |
| 64 | 503190428 | Rear Wheel Spacer |
| 66 | 503190396 | Ball Bearing |
| 67 | 415129371 | Retaining Ring |
