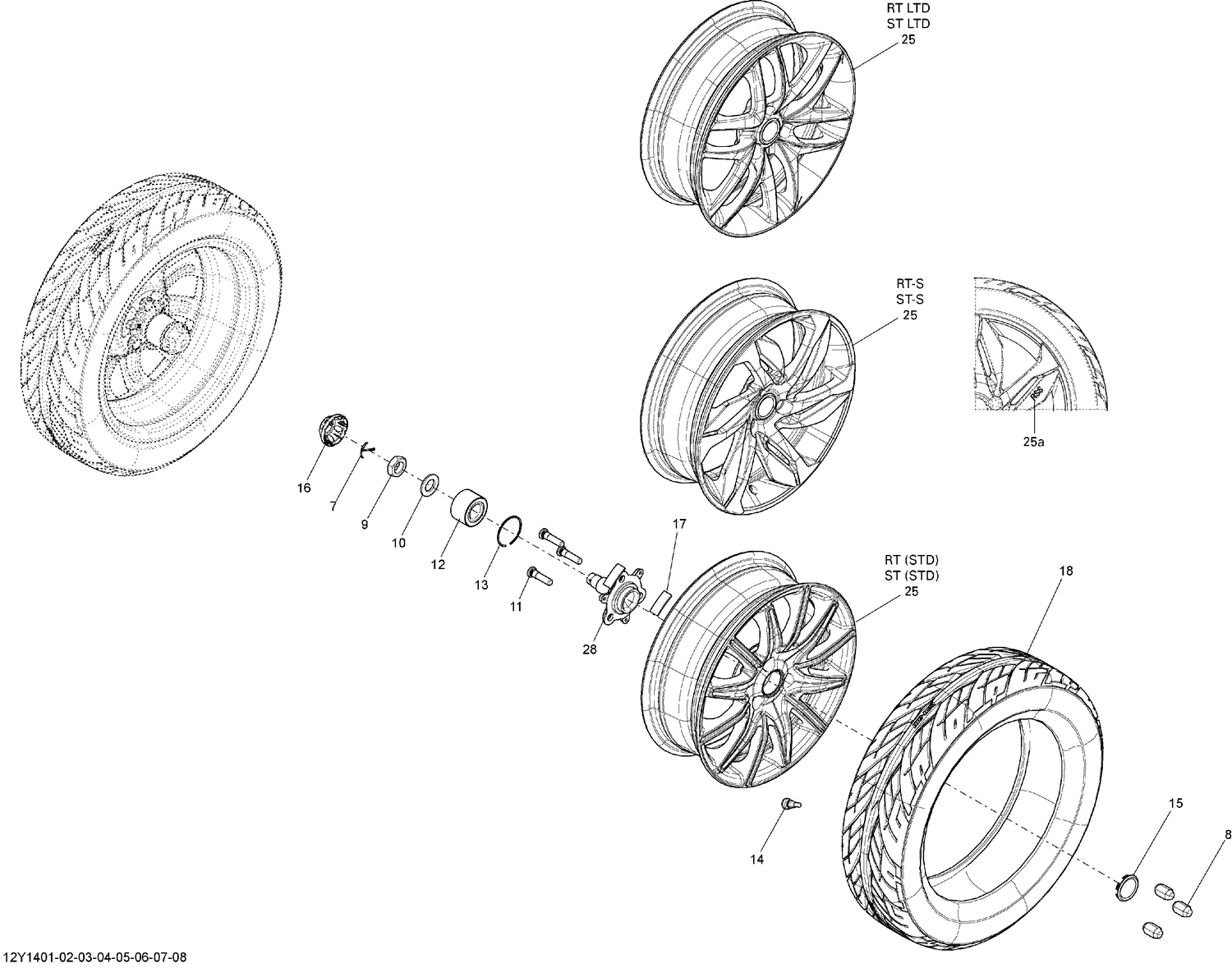

| Ref | Part Number | Description |
|---|
| 7 |
250400047 |
Cotter Pin |
| 8 |
250100154 |
Chrome, Wheel Nut M12 X 1.5 This part replaces 250100057. |
| 8 |
250100218 |
Black, Wheel Nut M12 X 1.5 This part replaces 250100155. |
| 9 |
250100103 |
Hex. Jam Nut M24 |
| 10 |
250200094 |
Flat Washer |
| 11 |
250300024 |
WHEEL STUD M12 X 1.5 - Call your local BRP dealership |
| 12 |
293350150 |
Ball Bearing This part replaces 293350040. |
| 13 |
293370019 |
Circlip |
| 14 |
705400193 |
Rim Valve With Cap |
| 15 |
705400388 |
Black, Wheel Cap |
| 16 |
705401883 |
Wheel Cap This part replaces 705401100. |
| 17 |
705502106 |
Self Adhesive Weight, 5G 20mm This part replaces 705501430. |
| 18 |
706204795 |
Front Tire 165/55R15 This part replaces 706201324. |
| 25a |
XXX |
Not Available As Spare Parts |
