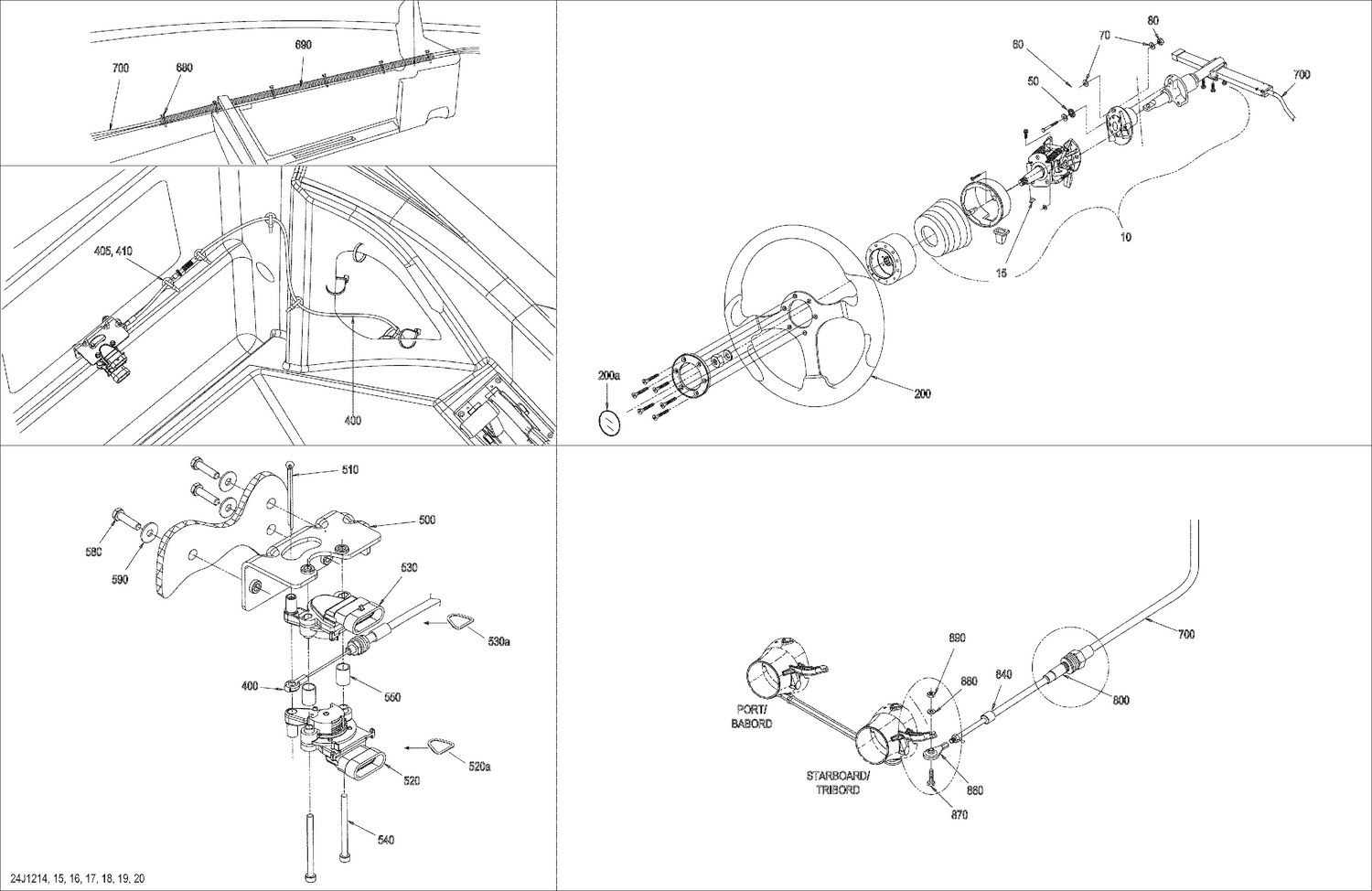

| Ref | Part Number | Description |
|---|
| 10 |
277001690 |
HELM TILT ASS'Y - Call your local BRP dealership |
| 15 |
277000384 |
WOODRUFF KEY - Call your local BRP dealership |
| 50 |
234481608 |
Serrated Lock Washer 8 mm |
| 60 |
207164060 |
Hex. Screw M6 X 40 |
| 70 |
234061600 |
Stainless Flat Washer M6 |
| 80 |
232561600 |
Hex. Elastic Stop Nut M6 |
| 200 |
204390543 |
Steering Wheel Ass'y |
| 200a |
204390549 |
CENTER CAP - Call your local BRP dealership |
| 400 |
277001780 |
THROTTLE CABLE - Call your local BRP dealership |
| 405 |
293730040 |
Mount Dart |
| 410 |
293750002 |
Tie Wrap 142 mm |
| 500 |
277001694 |
SENSOR BRACKET - Call your local BRP dealership |
| 510 |
Not |
Available As Spare Part - Cotter Pin |
| 520 |
0460304 |
NEEDS DESCRIPTION This part replaces 277001726. |
| 520a |
270000544 |
O-Ring |
| 530 |
277001727 |
SENSOR_POSITION THROTTLE - Call your local BRP dealership |
| 530a |
270000544 |
O-Ring |
| 540 |
205455060 |
SOCKET HEAD SCREW M5 X 50 - Call your local BRP dealership |
| 550 |
204390638 |
SPACER - Call your local BRP dealership |
| 580 |
207152060 |
Hex. Screw M5 X 20 |
| 590 |
234052600 |
Flat Washer 5 mm, Stainless |
| 680 |
293750002 |
Tie Wrap 142 mm |
| 690 |
204130176 |
SLIT CONDUIT 1 - Call your local BRP dealership This part replaces 204560132. |
| 700 |
277001866 |
STEERING CABLE - Call your local BRP dealership |
| 800 |
277000440 |
SEAL SWIVEL - Call your local BRP dealership |
| 840 |
277000441 |
TERMINAL WIPER - Call your local BRP dealership |
| 860 |
204120074 |
BALL JOINT - Call your local BRP dealership |
| 870 |
207063560 |
Hex. Screw M6 X 35 |
| 880 |
234061600 |
Stainless Flat Washer M6 |
