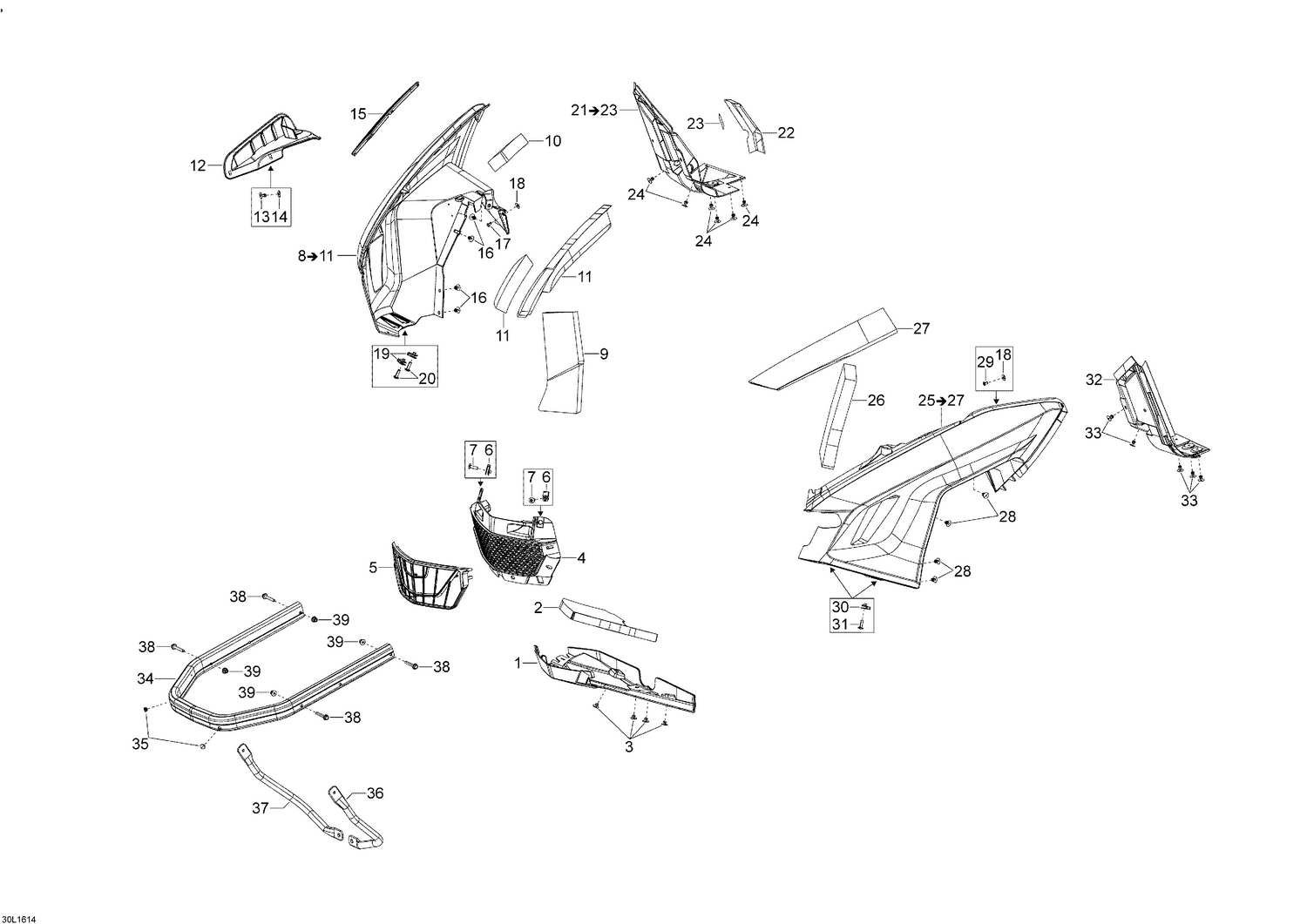

09- Bottom Pan
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 502008006 | Black, Front Bottom Pan This part replaces 502007184. |
| 2 | 502007002 | Insulator |
| 3 | 293150103 | Pop Rivet 3/16 |
| 4 | 502007145 | Front Grill |
| 6 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 7 | 250000722 | Torx Truss Screw M6 x 20 |
| 9 | 502007526 | Insulator |
| 16 | 293150104 | Pop Rivet 3/16 |
| 17 | 390402200 | Pop Rivet 3/16 |
| 18 | 234052450 | Flat Washer M5 |
| 19 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 20 | 250000722 | Torx Truss Screw M6 x 20 |
| 22 | 502007038 | Aluminium Foil |
| 23 | 44110 | Aluminum Foil |
| 24 | 293150104 | Pop Rivet 3/16 |
| 26 | 502007003 | Insulator |
| 27 | 502007185 | Insulator |
| 28 | 293150104 | Pop Rivet 3/16 |
| 29 | 390402200 | Pop Rivet 3/16 |
| 30 | 250100198 | Panel Nut , M6 X 1.0 This part replaces 250100113. |
| 31 | 250000722 | Torx Truss Screw M6 x 20 |
| 32 | 502008012 | LH Rear Bottom Pan This part replaces 502007195. |
| 33 | 293150104 | Pop Rivet 3/16 |
| 35 | 293730047 | Black, Dart 8 mm |
| 36 | 502007014 | LH Bumper Support Tube |
| 37 | 502007015 | RH Bumper Support Tube |
| 38 | 207664044 | Hex. Flange Screw M6 X 40 |
