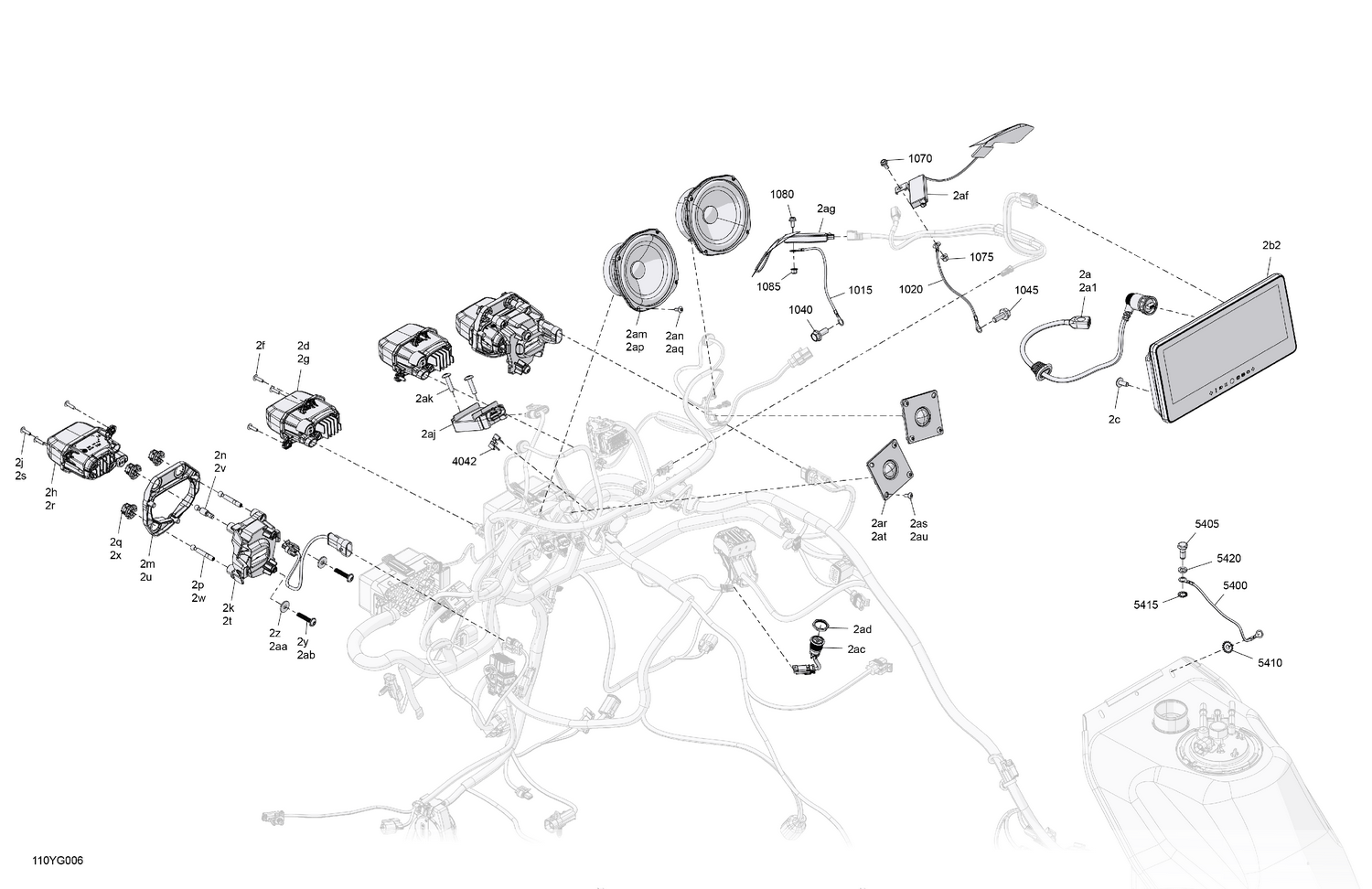

08- Electric - Sub Console Upper Section
Parts (49)
| Ref | Part Number | Description |
|---|---|---|
| 2a1 | 515179431 | USB wiring Harness Ass'y |
| 2aa | 250000949 | Screw PT K60 X 30 |
| 2ab | 234062670 | Stainless Steel Flat Washer |
| 2ac | 710009585 | Switch |
| 2ad | 710004108 | Nut |
| 2af | 710010624 | Fm1 / Fm1 Dab Antenna |
| 2ag | 710010625 | Fm2 Antenna |
| 2aj | 278004172 | External Module GPS |
| 2ak | 250000758 | Torx Screw M6 X 25 |
| 2an | 250000577 | Torx Truss Screw K40 X 12 |
| 2aq | 250000577 | Torx Truss Screw K40 X 12 |
| 2ar | 710006796 | Loudspeaker Tweeter |
| 2as | 250000577 | Torx Truss Screw K40 X 12 |
| 2at | 710006796 | Loudspeaker Tweeter |
| 2au | 250000577 | Torx Truss Screw K40 X 12 |
| 2b2 | 710010376 | Multifunction Gauge 10 |
| 2c | 250000534 | Tork Screw M6 X 16 |
| 2d | 710011573 | High Beam Headlight |
| 2f | 250000759 | Torx Truss Pt K40 X 16 |
| 2g | 710011573 | High Beam Headlight |
| 2h | 710011574 | Low Beam Headlight |
| 2j | 250000759 | Torx Truss Pt K40 X 16 |
| 2k | 705019784 | Adapter |
| 2m | 705019801 | LH Front Low Beam Headlight Support |
| 2n | 705019966 | Ball Joint |
| 2p | 705020107 | Ball Joint |
| 2q | 708400955 | Retaining Ring |
| 2r | 710011574 | Low Beam Headlight |
| 2s | 250000759 | Torx Truss Pt K40 X 16 |
| 2t | 705019785 | Adapter |
| 2u | 705019802 | RH Front Low Beam Headlight Support |
| 2v | 705019966 | Ball Joint |
| 2w | 705020107 | Ball Joint |
| 2x | 708400955 | Retaining Ring |
| 2y | 250000949 | Screw PT K60 X 30 |
| 2z | 234062670 | Stainless Steel Flat Washer |
| 1015 | 710010111 | Antenna Ground Strap |
| 1020 | 710010111 | Antenna Ground Strap |
| 1040 | 207582046 | Hex Flange Screw M8 X 20 |
| 1045 | 207582046 | Hex Flange Screw M8 X 20 |
| 1070 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1075 | 233251434 | Flange Elastic Nut M5 |
| 1080 | 207551044 | Hex. Flange Screw M5 X 10 |
| 1085 | 233251434 | Flange Elastic Nut M5 |
| 4042 | 710001222 | Lock |
| 5400 | 710006436 | Fuel Tank Cable |
| 5405 | 207382060 | Hex. Screw M8 X 20, Scotch Grip |
| 5410 | 250200041 | Lock Washer Serrated M6 |
| 5415 | 234481608 | Serrated Lock Washer 8 mm |
