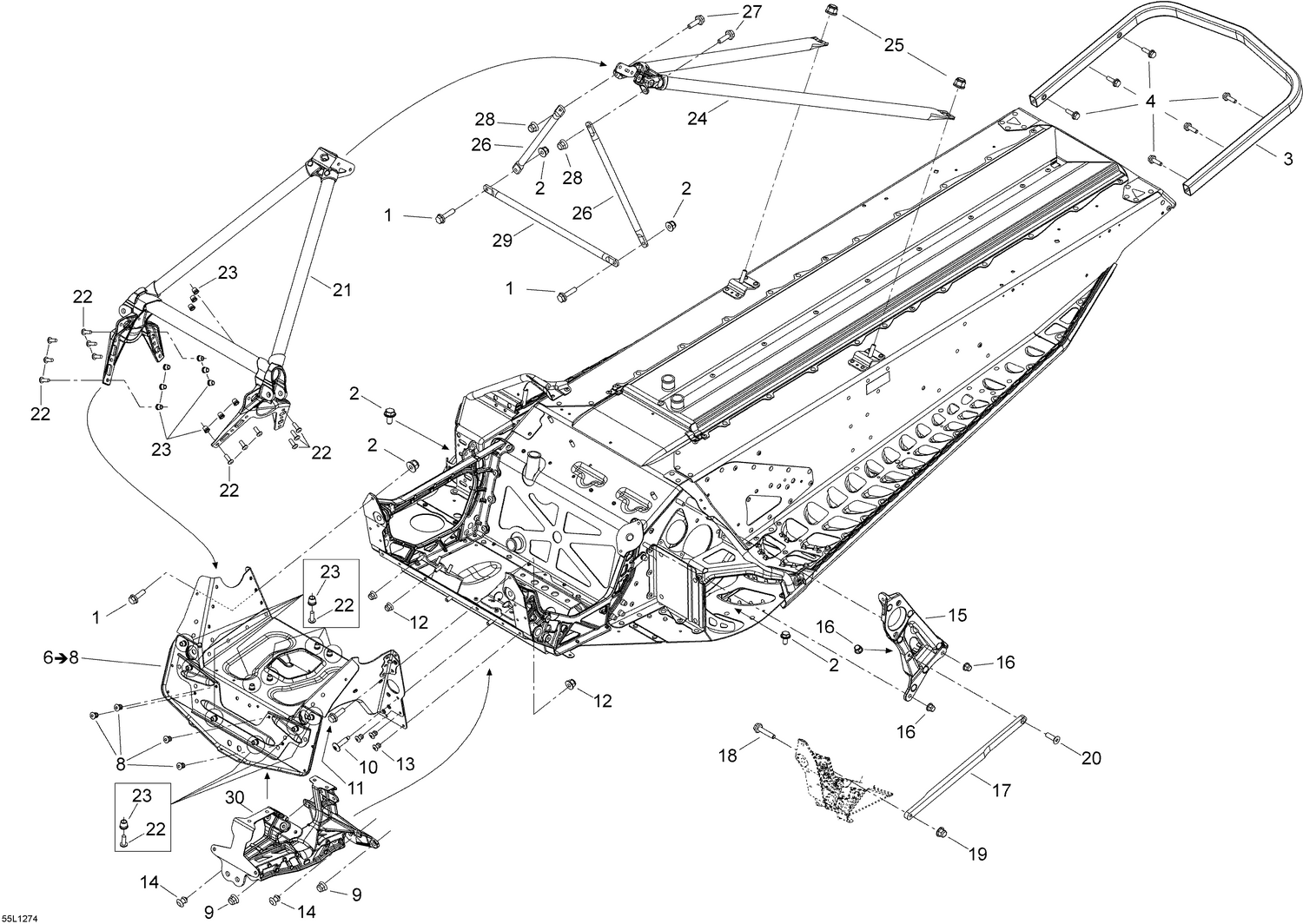

| Ref | Part Number | Description |
|---|
| 1 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 2 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 3 |
518326979 |
Rear Bumper FR 137'' |
| 4 |
250000779 |
Torx Screw M6 X 1.0 X 18, Scotch Grip This part replaces 250000402. |
| 6 |
518326852 |
Cross member (S-module) |
| 8 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 9 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 10 |
210262050 |
Forming Screw M6 x 20 This part replaces 210262080. |
| 11 |
207662544 |
Hex. Flange Screw M6 X 25 |
| 12 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 13 |
293150179 |
MONOBOLT RIVET 4.8 - Call your local BRP dealership |
| 14 |
293150148 |
Rivet Magna-Grip 6,4 X 50,8 |
| 15 |
518328346 |
Pulley Support This part replaces 518326651. |
| 16 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 17 |
518326118 |
LINK - Call your local BRP dealership |
| 18 |
207563034 |
Hex. Flange Screw M6 X 30, Scotch Grip This part replaces 207663034. |
| 19 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 20 |
250000143 |
Torx Screw M8 X 25, Scotch Grip |
| 21 |
518327565 |
Front Member This part replaces 518326972. |
| 22 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 23 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 24 |
518326685 |
Rear Member |
| 25 |
233281414 |
Hex. Flange Elastic Nut M8 |
| 26 |
518325114 |
Upper Column Support |
| 27 |
207662044 |
Hex. Flange Screw M6 X 20 |
| 28 |
233261414 |
Hex. Flange Elastic Nut M6 x 1.0 |
| 29 |
518325115 |
Center Column Support |
